StarTech.com 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation

StarTech.com 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation

Name: StarTech.com 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation
Brand: StarTech.com
SKU: ICUSB422IS
Price: 176.86 EUR
Availability: InStock

Add an R422/485 serial port to your laptop or desktop computer through USB

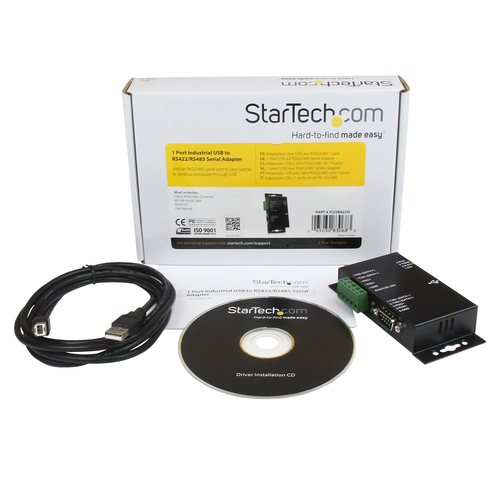

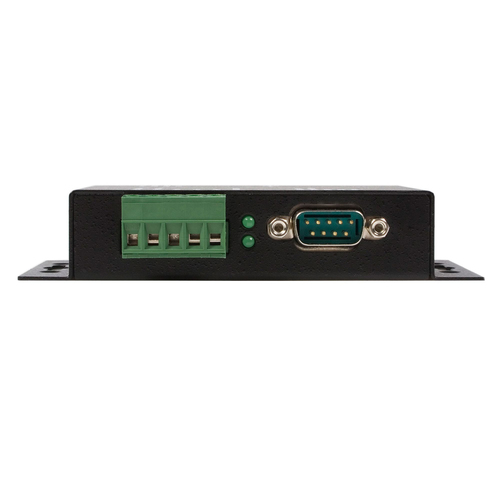

The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block. The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices. The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

6 IN STOCK

RRP Price €176.86

Specifications

Ports & interfaces

Connector 1

USB B

Connector 2

RS-422/485

Connector 1 gender

Male

Connector 2 gender

Female

Cable length

1.8 m

Performance

Product colour

Black

Data transfer rate

0.00088 Gbit/s

Compatible operating systems

Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 Linux Kernel 3.0.x+

Power

Input voltage

5 V

Operational conditions

Operating temperature (T-T)

0 - 55 °C

Storage temperature (T-T)

-20 - 85 °C

Relative humidity

5 - 95%

Weight & dimensions

Width

64 mm

Depth

118 mm

Height

23 mm

Weight

180 g

Packaging content

Quantity per pack

1 pc(s)

Cables included

USB

Packaging data

Package width

45 mm

Package depth

230 mm

Package height

160 mm

Package weight

390 g

Logistics data

Products per master (outer) case

50 pc(s)

Master (outer) case width

502 mm

Master (outer) case length

400 mm

Master (outer) case height

511 mm

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.18 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
