Name: StarTech.com Industrial 6 Port Gigabit Ethernet Switch 4 PoE RJ45 +2 SFP Slots 30W PoE+ 48VDC 10/100/1000 Power Over Ethernet LAN Switch -40C to 75C w...
Brand: StarTech.com
SKU: IES1G52UPDIN
Price: 397.88 EUR
Availability: OutOfStock

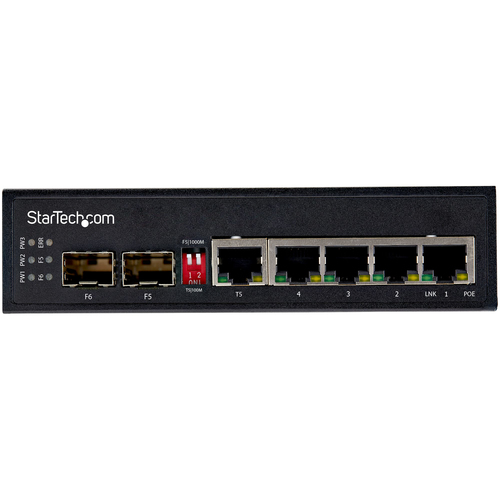

Rugged Ethernet Switch | 5 RJ45 (4 PoE) | 2 SFP Slots | 30W PoE+ | 48V DC | DIN Rail Mountable

Easily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable.

Power Over Ethernet & 48V Voltage

With a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:

• Cameras
• Sensors
• Wi-Fi access points

Uses Cat 5e (or higher rated) Ethernet cabling.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-Fall: EN 60068-2-32

500,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.

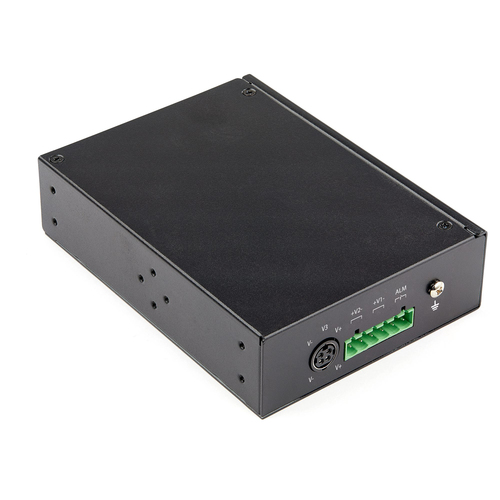

Dual Power Inputs

Dual power inputs provide redundancy. Accepts terminal block power or DIN power connectors for additional power supply flexibility, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.

The IES1G52UPDIN is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

ON ORDER

RRP Price €397.88

Specifications

Management features

Switch type

Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP module slots quantity

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

Copper ethernet cabling technology

10BASE-T, 10BASE-TX, 1000BASE-T, 1000BASE-TX

Full duplex

Yes

Flow control support

Yes

Auto MDI/MDI-X

Yes

Auto-negotiation

Yes

Data transmission

Switching capacity

12 Gbit/s

Jumbo frames support

Yes

Jumbo frames

9000

Packet buffer memory

1 MB

Protocols

Supported network protocols

CSMA/CD

Design

Rack mounting

Product colour

Black

Housing material

Steel

LED indicators

Link, PoE, Power

International Protection (IP) code

IP30

Wall mountable

Yes

DIN rail mounting

Yes

Safety

EN60950-1, MET (UL) 60950-1

Performance

Mean time between failures (MTBF)

525058 h

Power

DC input voltage

48 - 56 V

Power consumption (max)

126 W

Surge protection

Yes

Surge protection voltage

2 kV

Power over Ethernet (PoE)

Yes

Power over Ethernet plus (PoE+) ports quantity

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

120 W

Other features

Terminal block port

Yes

Operational conditions

Operating temperature (T-T)

-40 - 75 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

105 mm

Depth

142 mm

Height

36.2 mm

Weight

492 g

Packaging content

Quick start guide

Yes

Packaging data

Terminal block included

Yes

Package width

211 mm

Package depth

162 mm

Package height

64 mm

Package weight

737 g

Certificates

Certification

CE, RoHS, FCC, UL

Logistics data

Master (outer) case width

355 mm

Master (outer) case length

345 mm

Master (outer) case height

225 mm

Harmonized System (HS) code

85176990

Products per master (outer) case

10 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.492 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

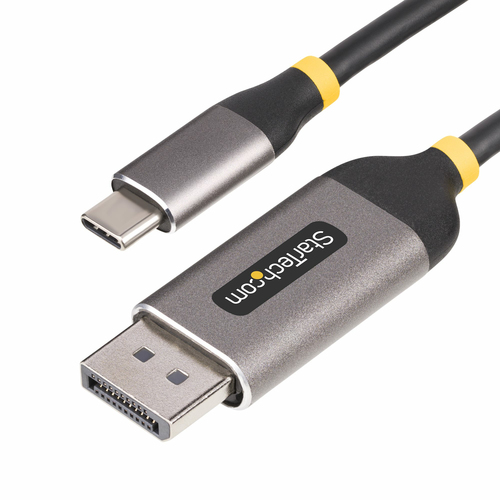

StarTech.com 10ft (3m) USB-C to DisplayPort Adapter Cable, 8K 60Hz, 4K 144Hz, HDR, USB Type-C to DP 1.4 Video Converter Cable, USB4/Thunderbolt 3/4 Compatible Cables & Adaptors

Connect a DisplayPort Alt Mode-enabled USB-C source to a DisplayPort monitor with support for resolutions up to 8K at 60HzConnect an 8K 60Hz or 4K 144Hz DisplayPort monitor to a DP Alt Mode-enabled USB Type-C source up to 9.8ft (3m) away with this USB-C to DisplayPort adapter cable.High-Resolution HDR VideoThis USB-C to DisplayPort Cable enables resolutions of up to 8K 60Hz and is DisplayPort 1.4 compliant. It supports HDR10, DSC, and 2 channel audio.Hardware PlatformSingle MonitorDisplayPort Alt ModeIntel 11th Gen & Later Processors8K 60Hz or 4K 144Hz*DisplayPort 1.4Nvidia RTX3000 and AMD RX6000 or later8K 60Hz or 4K 144HzDisplayPort 1.4Intel 10th Gen & Earlier4K 60HzDisplayPort 1.4Apple M1/M2/M3 + Pro & Max4K 60Hz**DisplayPort 1.4*DSC support required to reach maximum resolution capabilities on Intel 11th Gen or later**Apple MacBook's with M1/M2/M3 Pro/Max silicon do not support 8K 60Hz over USB-C DP Alt ModeUniversal CompatibilityThe USB-C to DisplayPort Converter Cable is compatible with laptops and devices from various brands such as Dell, HP, Lenovo, Microsoft, and more. It works with all hardware platforms and any operating system. The USB Type-C to DisplayPort Cable requires no drivers or software and works with USB-C DP Alt Mode, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.Thoughtfully DesignedCombining a video adapter and cable minimizes potential points of failure and signal loss. A latching DisplayPort connector reduces the risk of accidental disconnections. The cable is equipped with aluminum connector shells, providing enhanced durability, and shielding from Electromagnetic Interference (EMI).The StarTech.com Advantage

€27.07

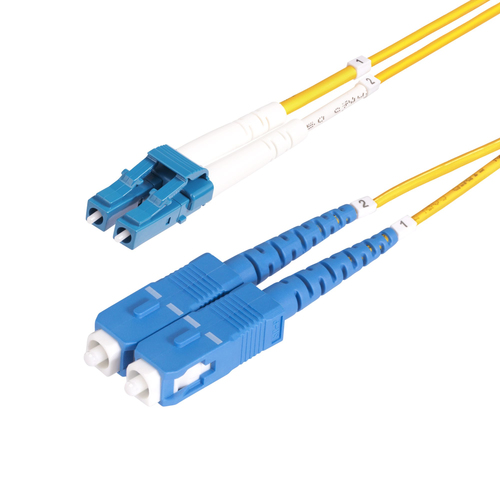

StarTech.com 3m (9.8ft) LC to SC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord Cables & Adaptors

Enhance the performance capabilities of CWDM applications over an OS2 fiber networkOS2 LC to SC Single Mode Duplex Fiber Optic Patch cable facilitates connectivity across 100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.CompatibilityThis 9/125µm Single Mode fiber cable supports 1260-1625nm laser-optimized sources and is ideal for critical connections between servers, switches, and data center equipment. It is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.Engineered for Optimal PerformancePrecision-manufactured ceramic ferrules ensure accurate fiber alignment for an insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to SC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.LSZH Cable JacketHoused in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.The StarTech.com Advantage

€16.61

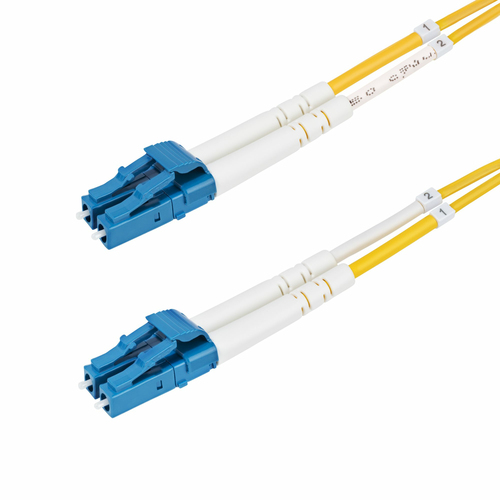

StarTech.com 40m (131ft) LC to LC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord Cables & Adaptors
