IESC1G80UP - Cables & Adaptors by StarTech.com

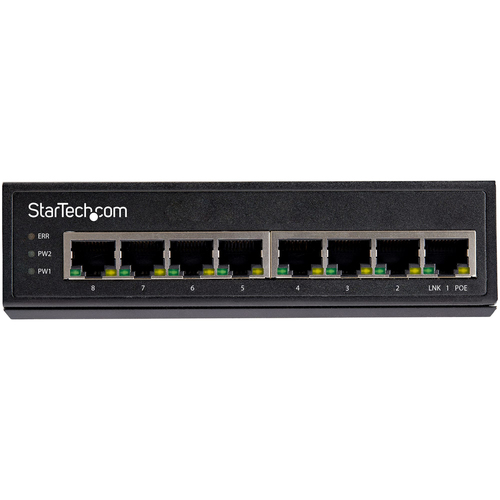

Rugged PoE Switch | 30 Watts | IP-30 Aluminum Housing | Unmanaged | 8 Port

This industrial 8 port gigabit PoE switch features 30W of power and is designed to be installed in harsh environments and supports up to a total of 200W power outputs. Includes hardware for DIN rail or wall mounting.

For Demanding Environments Where No Fiber Connections Are Required

Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:

Cameras

Sensors

Wi-Fi Access Points

High total power budget with high PoE port count at a maximum of 30 watts per port, up to 200 watts max. Power provided in order of device connection; max 6 802.3at (30W) devices (180W total) at any time.

Truly Industrial for Devices That Must Function Under Harsh Conditions

Industrial features include:

Operating Temperature Range: -40 C to 75 C

IP-30 rated housing

Vibration, shock, and free-fall standard testing

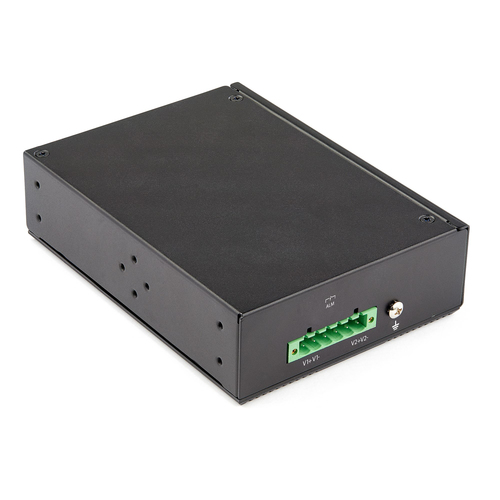

This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 500,000+ hrs (Telcordia/Bellcore) at 50°C, for long-term reliability.

The StarTech.com Advantage

- POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+)
- Use with devices like cameras & access points using Cat 5e/6
- TECH SPECS: 8 port GbE PoE switch
