IMC100MSFP - Cables & Adaptors by StarTech.com

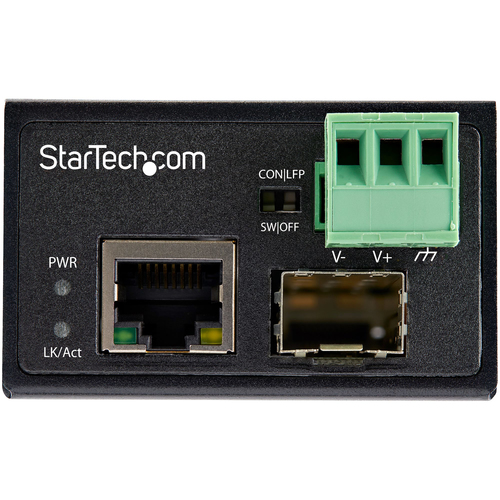

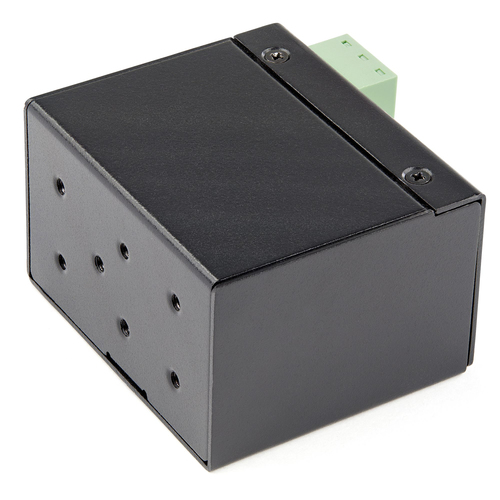

"10/100 Mbps Media Converter | 100Mbps SFP to RJ45/Cat6 | 12-56V DC | IP-30 HousingAn industrial media converter that converts fiber to copper at a network endpoint.A Flexible Solution Covering Different RequirementsThis media converter features an open SFP slot for any standard SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 18V-36V AC or 12V -56V DC for a high degree of flexibility including applications like solar, automotive, and rail. Includes hardware for DIN rail or wall mounting.For Mission-Critical ApplicationsDesigned with IP-30 housing and has an MBTF of >500,000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:Vibration: EN 60068-2-6Shock: EN 60068-2-27Free-Fall: EN 60068-2-32Dual Power InputsAccepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.The IMC100MSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage- COMPACT SIZE + FLEXIBLE POWER INPUT: Smallest form factor Fiber to Ethernet media converter - extends & converts 100Mbps fiber to RJ45 copper; powered by 18-36V AC or 12V-56V DC for solar, auto & rail- ROBUST DESIGN: Industrial Network Media Converter w/MTBF 500,000+hrs @ 50C- Vibration, shock & freefall rated"

5 IN STOCK

RRP Price €141.33

Specifications

Network

Maximum data transfer rate
100 Mbit/s
Converter input interface
10Base-T, 100Base-TX
Converter output interface
100Base-FX
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Jumbo frames support
Yes
Jumbo frames
16000
Duplex system
Full

Performance

Fiber mode structure
Multi-mode, Single-mode
Mean time between failures (MTBF)
500000 h

Features

Internal
No
LED indicators
Yes
Product colour
Black
Housing material
Aluminium
International Protection (IP) code
IP30
DIN rail mounting
Yes

Ports & interfaces

Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
SFP

Power

Input voltage
12 - 56 V
Power consumption (typical)
1.92 W
Power over Ethernet (PoE)
No
Power plug type
Type N

Weight & dimensions

Width
36 mm
Depth
59 mm
Height
50 mm
Weight
81.4 g

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%

Packaging content

User guide
Yes

Packaging data

Package width
155 mm
Package depth
105 mm
Package height
64 mm
Package weight
242.4 g

Certificates

Compliance certificates
RoHS
Certification
CE, FCC

Logistics data

Harmonized System (HS) code
85176990
Master (outer) case width
355 mm
Master (outer) case length
345 mm
Master (outer) case height
225 mm
Products per master (outer) case
20 pc(s)
