IMC1GSFP - Cables & Adaptors by StarTech.com

Gigabit Media Converter | SFP to RJ45 (Cat6) | MTBF: 500,000+hrs @ 50°C | 12V-56VDC | Works with 100 Mbps SFPs

An industrial media converter that converts fiber to copper at a network endpoint.

A Flexible Solution Covering Different Requirements

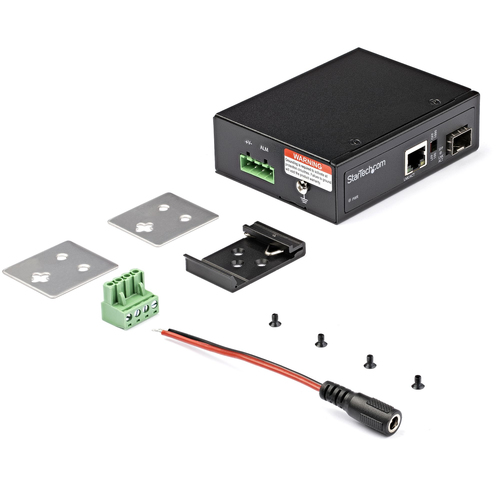

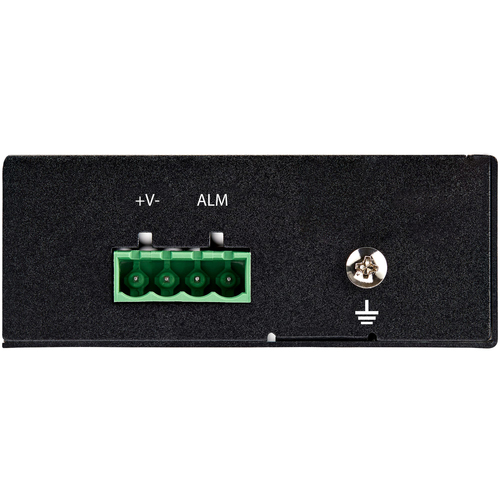

This media converter features an open SFP slot for any standard gigabit SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 12V-56V DC for solar, automotive, rail, and other applications and requires a minimum 12V power input. Includes hardware for DIN rail or wall mounting.

For Mission-Critical Applications

Designed with IP-30 housing and has an MBTF of >500;000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:

• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-Fall: EN 60068-2-32

The IMC1GSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

ON ORDER

RRP Price €323.99

Specifications

Network

Maximum data transfer rate
1000 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3x
Jumbo frames support
Yes
Jumbo frames
9000
Auto MDI/MDI-X
Yes
Duplex system
Full
Cable types supported
Cat6

Performance

Fiber mode structure
Multi-mode, Single-mode
Mean time between failures (MTBF)
569265 h

Features

Internal
No
LED indicators
Yes
Product colour
Black
Housing material
Aluminium
International Protection (IP) code
IP30
DIN rail mounting
Yes

Ports & interfaces

Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
SFP

Power

Input voltage
12 - 56 V
Power over Ethernet (PoE)
No
Power plug type
Type N

Weight & dimensions

Width
81.5 mm
Depth
104 mm
Height
32 mm
Weight
144 g

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%

Packaging content

User guide
Yes

Packaging data

Package width
211 mm
Package depth
162 mm
Package height
64 mm
Package weight
386 g

Certificates

Compliance certificates
CE, RoHS

Logistics data

Harmonized System (HS) code
85176990
Master (outer) case width
355 mm
Master (outer) case length
345 mm
Master (outer) case height
225 mm
Products per master (outer) case
10 pc(s)

Accessories
