IMC1GSFP30W - Cables & Adaptors by StarTech.com

Industrial PoE Media Converter | 10/100/1000 Mbps | 30 Watts | Open SFP | DIN Rail Mountable

This open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector

It converts a fiber network link to a POE-enabled copper RJ45 Ethernet connection to provide data and power to remote POE devices like security cameras, sensors, wireless, lighting, and more. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require POE and connectivity over long distances.

Designed for Small Spaces & Harsh Environments

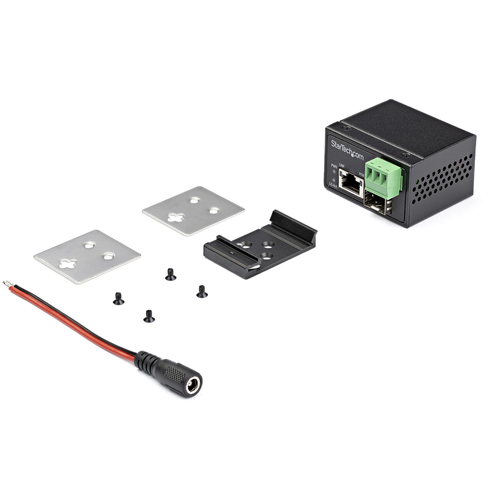

At 4.5 square inches and weighing approximately 80g, this mini media converter can be installed almost anywhere you need it and has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options.

OPERATING TEMPERATURE

STORAGE TEMPERATURE

40°C to 75°C

-40°C to 85°C

104°F to 167°F

104°F to 185°F

Up to 30 Watts of Power for Connected Devices

30 watts of available support a wide range of devices such as:

Surveillance Cameras

Wireless Access Points

Locks & Sensors

Lighting

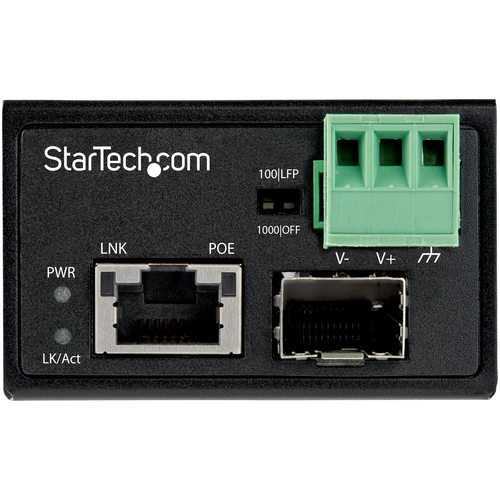

Open SFP Slot to Leverage Your Current Infrastructure

The Gigabit fiber media converter provides a cost-efficient way to connect remote devices over a fiber link. It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements.

Industrial IoT and Bringing Connectivity Outside of the Data Center

Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto-negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.

The IMC1GSFP30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- COMPACT SIZE + PoE: Smallest form factor Fiber to Ethernet media converter with PoE extends & converts fiber to RJ-45 copper; up to 30W of PSE power to PoE/PoE+ PD devices like cameras & sensors
- TECH SPECS: 1 Gbps
- 1 x Open SFP (MSA Compliant)

5 IN STOCK

RRP Price €290.97

Specifications

Network

Maximum data transfer rate
1000 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Jumbo frames support
Yes
Jumbo frames
16000
Flow control support
Yes
Duplex system
Full

Performance

Maximum transfer distance
100 m
Fiber mode structure
Multi-mode, Single-mode
Buffer size
512 KB
Mean time between failures (MTBF)
500000 h

Features

Internal
No
Product colour
Black
Housing material
Aluminium
International Protection (IP) code
IP30
DIN rail mounting
Yes

Ports & interfaces

Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
SFP

Power

Input voltage
48 - 56 V
Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
30 W
Power plug type
Type N

Weight & dimensions

Width
36 mm
Depth
59 mm
Height
49 mm
Weight
80 g

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%

Packaging content

Quick installation guide
Yes

Packaging data

Package width
155 mm
Package depth
105 mm
Package height
64 mm
Package weight
204.9 g

Certificates

Compliance certificates
RoHS
Certification
CE, FCC

Logistics data

Harmonized System (HS) code
85176990
Master (outer) case width
355 mm
Master (outer) case length
345 mm
Master (outer) case height
225 mm
Products per master (outer) case
20 pc(s)

Accessories

License
