J9151A-BX-D-ST - Cables & Adaptors by StarTech.com

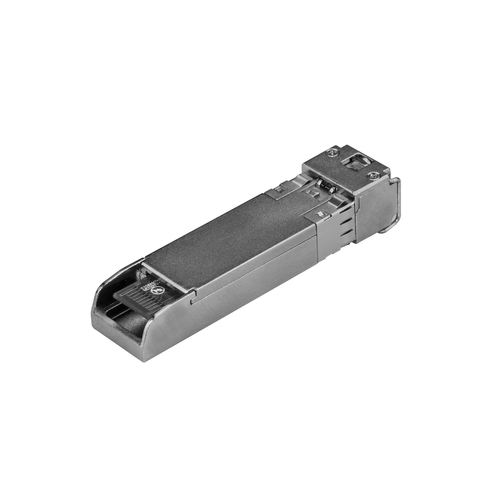

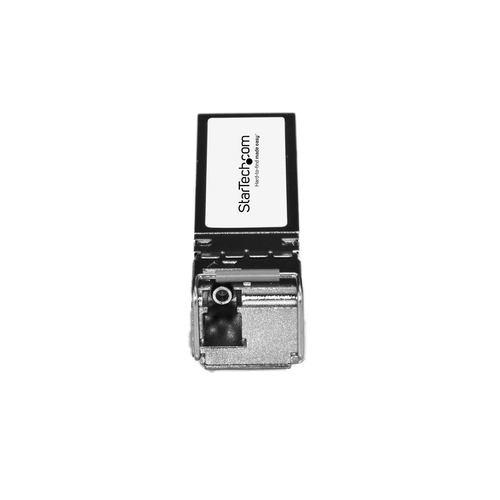

10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime WarrantyThe J9151A-BX-D-ST is an HPE J9151A-BX-D compatible downstream fiber SFP+ transceiver which pairs with StarTech.com's J9151A-BX-U-ST. They are designed, programmed and tested to work with 10GBASE-BX compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.Technical Specifications:• Wavelength: 1330nmTx/1270nmRx• Maximum Data Transfer Rate: 10Gbps• Type: Single Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 10 km (6.2 mi)• Power Consumption:• DDM: YesThis SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ Cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

ON ORDER

RRP Price €520.09

Specifications

Performance

SFP transceiver type
Fiber optic
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Single-mode fiber (SMF) supported
Yes
Multi-mode fiber (MMF) supported
No
Fiber optic connector
LC
SFP transceiver standard
BX
Maximum transfer distance
10000 m
Tx wavelength (max)
1330 nm
Rx wavelength (max)
1270 nm
Digital Diagnostics Monitoring (DDM)
Yes

Features

Product colour
Silver
Hot-swap
Yes
Mean time between failures (MTBF)
646156559 h
Brand compatibility
HP
Compatible products
J9151A

Power

Power consumption (typical)
1.3 W

Weight & dimensions

Width
58.4 mm
Depth
13.9 mm
Height
12.6 mm
Weight
24 g

Packaging content

Quantity per pack
1 pc(s)

Packaging data

Package width
90 mm
Package depth
115 mm
Package height
31 mm
Package weight
50 g

Logistics data

Master (outer) case width
90 mm
Master (outer) case length
115 mm
Harmonized System (HS) code
85369010
Master (outer) case height
31 mm
Products per master (outer) case
1 pc(s)

Accessories

License
