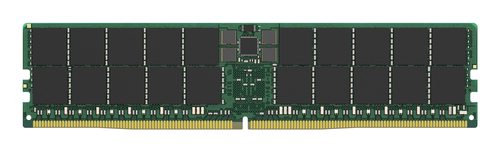

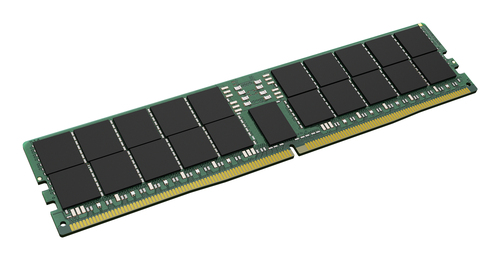

Kingston Technology KSM64R52BD4-64MD memory module 64 GB 1 x 64 GB DDR5 6400 MT/s

Kingston's KSM64R52BD4-64MD is a 8G x 80-bit (64GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

ON ORDER

RRP Price €518.11

Specifications

Features

Buffered memory type
Registered (buffered)
On-Die ECC
Yes
CAS latency
52
Internal memory
64 GB
Memory layout (modules x size)
1 x 64 GB
Internal memory type
DDR5
Memory data transfer rate
6400 MT/s
Component for
PC/Server
Memory form factor
288-pin DIMM
ECC
No
Memory ranking
2
Memory voltage
1.1 V
Module configuration
8192M x 80
Row cycle time
48 ns
Refresh row cycle time
295 ns
Row active time
32 ns
SPD profile
Yes
Programming power voltage (VPP)
1.8 V
Lead plating
Gold
JEDEC standard
Yes

Operational conditions

Operating temperature (T-T)
0 - 95 °C
Storage temperature (T-T)
-55 - 100 °C

Technical details

Compliance certificates
RoHS

Sustainability

Doesn't contain
Halogen

Weight & dimensions

Width
133.3 mm
Height
31.2 mm
