M21WL01-I5 - Computer Systems by Shuttle

M21WL01-I5 - Computer Systems by Shuttle

Name: Shuttle All-In-One Panel Medical PC Barebone M21WL01-i5, 21.5" Multi-Touch-Screen, Intel Intel Core i5-8365UE , 2xLAN, IP65, fanless, 24/7 permanent o...
Brand: Shuttle
SKU: M21WL01-I5
Price: 2318.21 EUR
Availability: OutOfStock

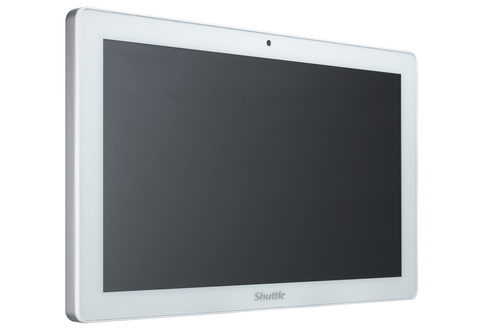

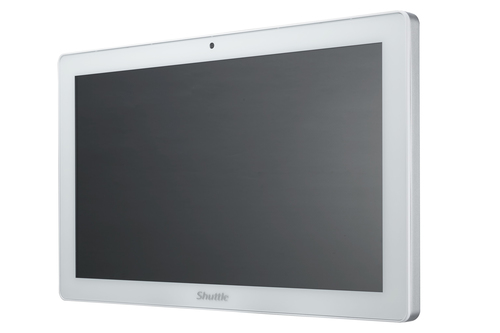

This high-value Panel PC comes features a rugged Aluminium chassis with an anti-bacterial and anti-septic coating and IP65-rated front panel for superior hygiene and infection control. The display is Full-HD and sports a projected capacitive 10-point multi-touch function. With its passive cooling the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Compliant with IEC 60601-1 medical safety standards for electrical devices, this Panel PC is built for reliable operation in a wide range of healthcare environments.

ON ORDER

RRP Price €2,318.21

Specifications

Processor

Processor manufacturer

Intel

Processor family

Intel® Core™ i5

Processor generation

8th gen Intel® Core™ i5

Processor model

i5-8365UE

Processor cores

Processor threads

Processor boost frequency

4.1 GHz

Processor frequency

1.6 GHz

Built-in processor

Yes

Processor lithography

14 nm

Thermal Design Power (TDP)

15 W

CPU configuration (max)

Memory

Memory slots type

SO-DIMM

Number of memory slots

Maximum internal memory

64 GB

Supported memory clock speeds

2400 MHz

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Memory voltage

1.2 V

Non-ECC

Yes

Storage

Supported storage drive types

SSD

Storage drive sizes supported

2.5,M.2

Storage drive interface

PCI Express, Serial ATA III

Graphics

On-board graphics card

Yes

Graphics card family

Intel

On-board graphics card model

Intel® UHD Graphics 620

Discrete graphics card model

Not available

Display

Display diagonal

54.6 cm (21.5")

Display resolution

1920 x 1080 pixels

Touchscreen

Yes

HD type

Full HD

Aspect ratio

16:9

Display brightness

300 cd/m²

Panel type

TFT

Network

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

WLAN controller model

Realtek RTL8821CE

Ethernet LAN

Yes

Wi-Fi

Yes

LAN controller

Intel® I211, Intel® I219-LM

Bluetooth

Yes

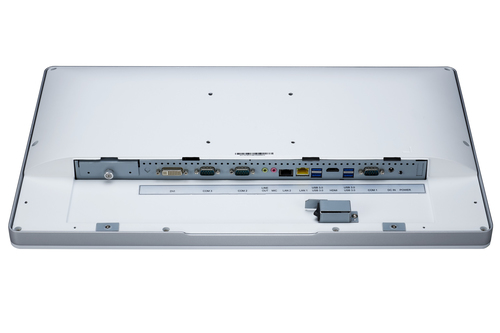

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

HDMI ports quantity

HDMI version

1.4b

DVI port

Yes

Microphone in

Yes

Headphone outputs

Ethernet LAN (RJ-45) ports

Serial ports quantity

DC-in jack

Yes

Design

Chassis type

All-in-One

Product colour

White

Cooling type

Passive

On/off switch

Yes

LED indicators

Yes

VESA mounting

Yes

Panel mounting interface

100 x 100 mm

Product type

All-in-One PC barebone

Performance

Motherboard chipset

Intel SoC

Number of processors supported

BIOS type

UEFI AMI

Built-in camera

Yes

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Technical details

Compliance certificates

CB, CE, Federal Communications Commission (FCC), cTUVus

Logistics data

Harmonized System (HS) code

84714100

Software

Windows operating systems supported

Windows 10, Windows 11

Linux operating systems supported

Yes

Operating system installed

Power

Power supply type

External AC adapter

Power supply

90 W

Number of power supply units

AC input voltage

90 - 264 V

AC input frequency

50/60 Hz

AC adapter output voltage

19 V

AC adapter output current

4.74 A

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Weight & dimensions

Width

543 mm

Depth

49.9 mm

Height

334 mm

Weight

7.6 kg

Packaging content

Power cord included

Yes

AC adapter included

Yes

Description

Manufacturer

Shuttle

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

7.6 kg

Country of Origin

N/A

Datasheet

Data Sheet
