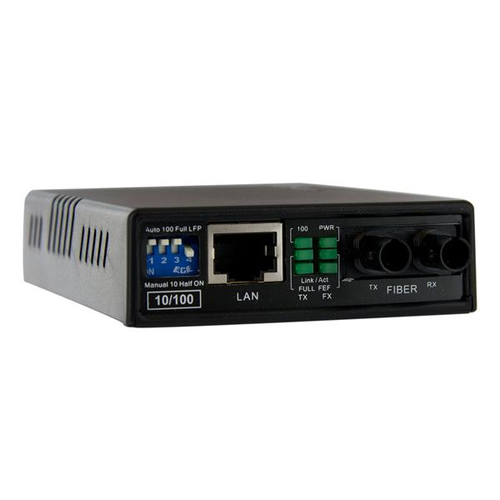

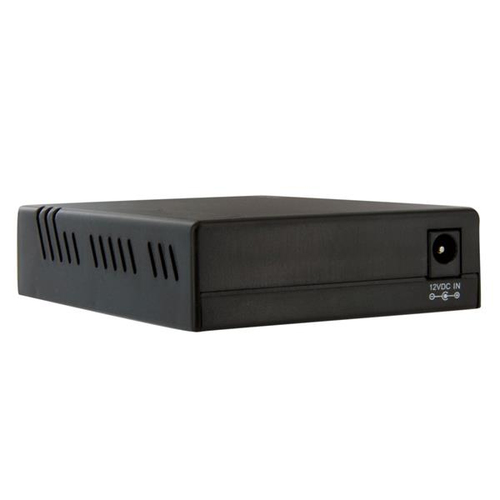

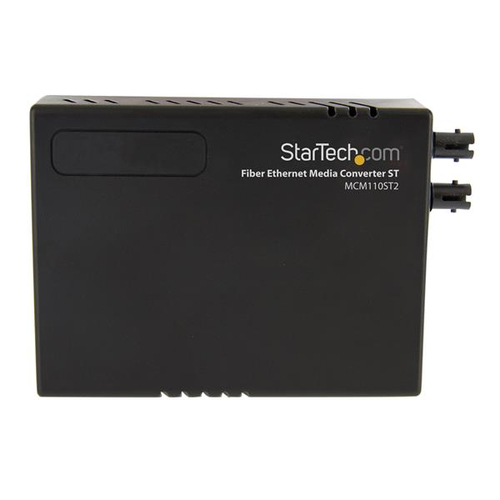

StarTech.com 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km

Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber
The MCM110ST2EU 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode)
- Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed
- Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion

ON ORDER

RRP Price €71.12

Specifications

Network

Maximum data transfer rate
100 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3u
Duplex system
Full, Half

Performance

Maximum transfer distance
2000 m
Wavelength
1310 nm

Ports & interfaces

Ethernet LAN (RJ-45) ports
1
Fiber optic connector
ST

Power

Input voltage
240 V
Output current
0.2 A

Weight & dimensions

Width
75 mm
Depth
95 mm
Height
20 mm
Weight
90.5 g

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%

Packaging data

Package width
145 mm
Package depth
175 mm
Package height
65 mm
Package weight
300 g

Certificates

Compliance certificates
RoHS

Logistics data

Harmonized System (HS) code
85176990

Other features

Cable type
Fiber optic

Accessories

License
