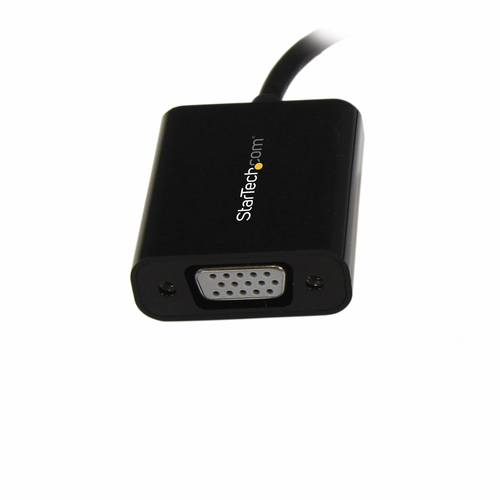

StarTech.com Mini DisplayPort to VGA Adapter - Active Mini DP to VGA Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to VGA Monitor/Projector/Display - mDP 1.2 to VGA Dongle - Black

StarTech.com Mini DisplayPort to VGA Adapter - Active Mini DP to VGA Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to VGA Monitor/Projector/Display - mDP 1.2 to VGA Dongle - Black

Name: StarTech.com Mini DisplayPort to VGA Adapter - Active Mini DP to VGA Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to VGA Monitor/Projector/...
Brand: StarTech.com
SKU: MDP2VGA2
Price: 23.30 EUR
Availability: InStock

Connect a Mini DisplayPort 1.2-equipped PC or Mac® to a VGA Monitor or Projector

The MDP2VGA2 Mini DisplayPort to VGA converter enables you to connect your Mini DisplayPort video source (Macbook® or any mDP-equipped Microsoft® Surface™ Pro devices) to a VGA monitor or projector, saving the expense of upgrading to a Mini DisplayPort compatible display.

With a small foot print and no external power adapter this mDP to VGA adapter ensures maximum portability making it an ideal laptop accessory.

Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).

The MDP2VGA2 is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

311 IN STOCK

SKU: MDP2VGA2

Manufacturer: StarTech.com

RRP Price €23.30

Specifications

Features

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Cable length

0.18 m

Connector 1

Mini DisplayPort

Connector 2

VGA (D-Sub)

Connector 1 gender

Male

Connector 2 gender

Female

DisplayPort version

1.2

Maximum resolution

1920 x 1200 pixels

Supported video modes

720p, 1080p

Maximum refresh rate

60 Hz

HBR2 support

Yes

Product colour

Black

Chipset

Analogix - ANX9833

Plug and Play

Yes

Converter type

Active video converter

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-10 - 80 °C

Operating relative humidity (H-H)

10 - 85%

Certificates

Compliance certificates

CE, RoHS

Certification

RoHS, CE, FCC

Weight & dimensions

Weight

27 g

Width

35 mm

Depth

220 mm

Height

8 mm

Packaging data

Package width

200 mm

Package depth

220 mm

Package height

18 mm

Package weight

36 g

Logistics data

Harmonized System (HS) code

84733080

Master (outer) case width

330 mm

Master (outer) case length

500 mm

Master (outer) case height

213 mm

Products per master (outer) case

150 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

311

WH3 (5–7 Days)

N/A

Weight

0.027 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
