MSTCDP122HD - Cables & Adaptors by StarTech.com

Dual Monitor Adapter | Windows | Thunderbolt 3 Compatible

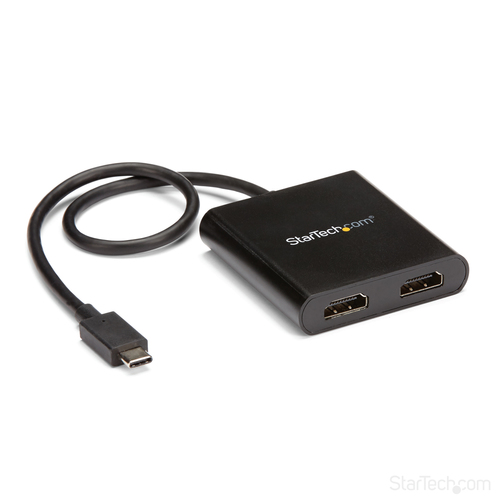

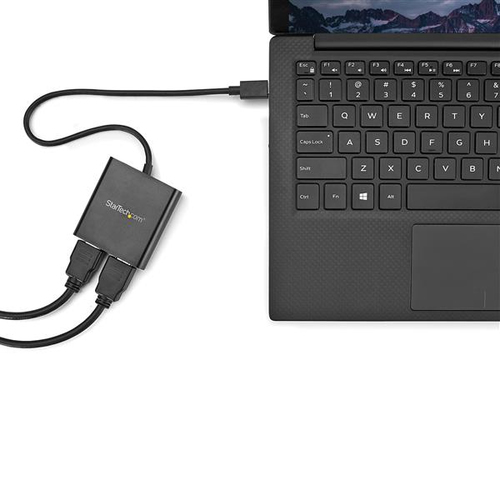

This USB-C to HDMI MST Hub lets you connect two HDMI monitors to your USB Type-C Windows device, conveniently helping you to maximize your productivity.

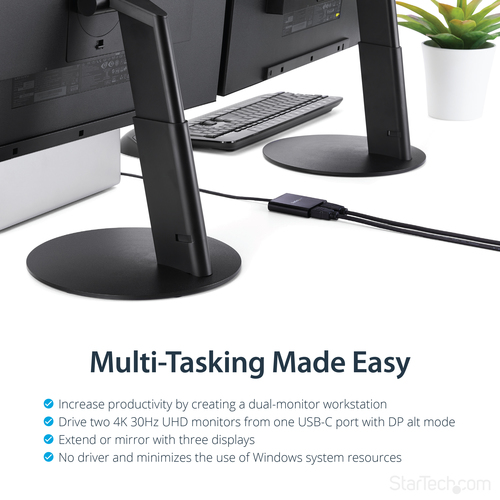

Multi-tasking Made Easy

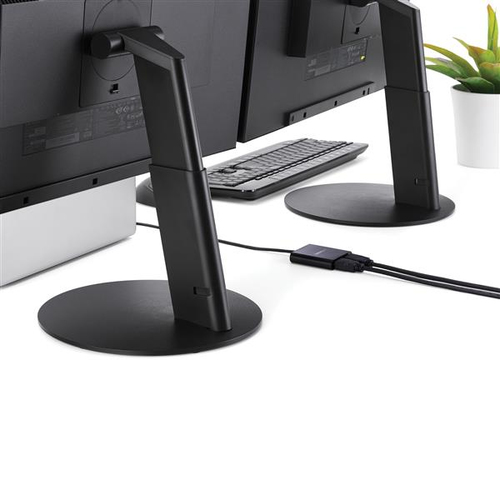

With devices becoming more portable than ever, you can be limited to fewer video outputs and confined to your small integrated screen. This multi-stream transport hub solves that problem by enabling you to connect two separate displays to your USB-C computer, making multi-tasking much easier. Using this USB-C to HDMI video splitter, you can mirror your display onto additional monitors or stream independent content to each display, which makes it the ideal accessory for travel or hot-desking.

Astonishing Picture Quality

MST technology uses your existing video card to minimize the use of system resources, while delivering UHD 4K resolutions for two monitors or displays simultaneously. With support for HD 1080p and UHD 4K the USB-C hub is perfect for all high-resolution applications such as graphic design and CAD drawing.

Hassle-Free Setup

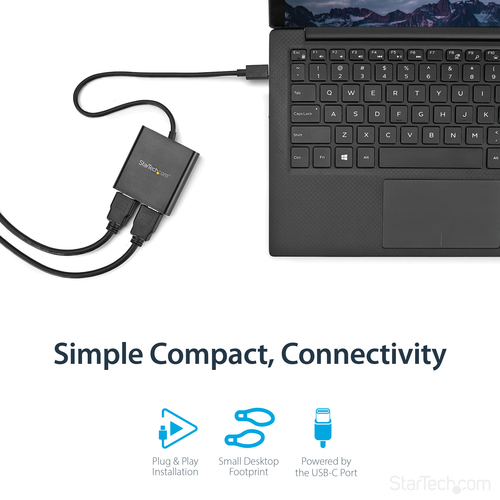

Multi-stream transport offers an easy setup by natively working on any Windows device that supports DP Alt Mode over USB Type-C. This USB-C to HDMI hub is Thunderbolt 3 compatible, and offers plug-and-play installation with no drivers or software required. Additionally, this dual-monitor splitter is powered by the USB-C port, meaning no external power cords are necessary.

MSTCDP122HD is backed by a StarTech.com 3-year warranty, and free lifetime technical support.

The StarTech.com Advantage

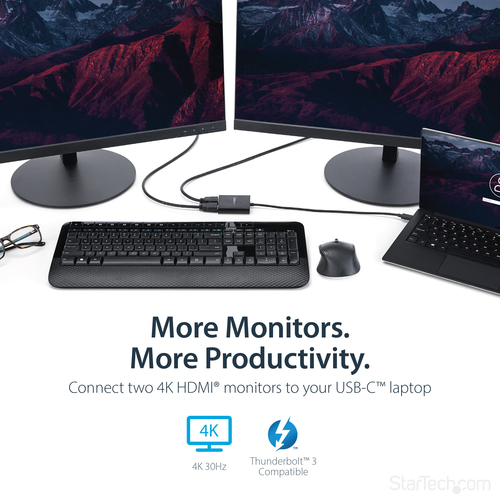

- MULTIPLE MONITORS: USB-C to HDMI splitter to drive 2x 4K 30Hz or 2x 1080p 60Hz HDMI displays using a USB-C DP Alt-Mode port (DP 1.2/HBR2/MST) w/ no video compression; Thunderbolt 3 compatible

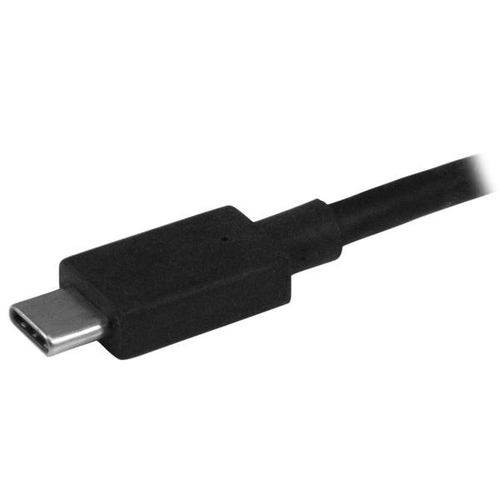

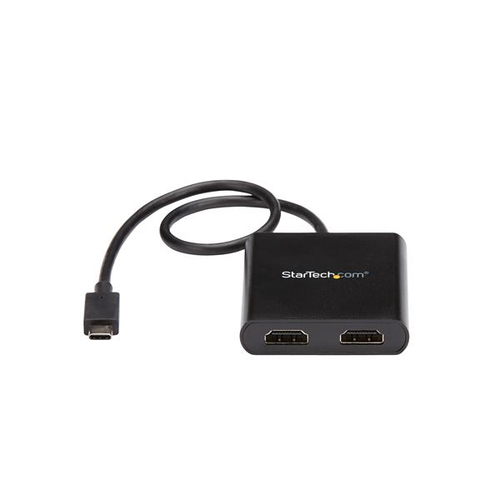

- CONVENIENCE: With a built-in 1ft cable, this bus-powered 2-port MST hub provides an easy method to connect up to two independent screens with any DisplayPort over USB Type-C Windows host device
- COMPATIBLE WITH: Dell XPS / Precision / Latitude, Lenovo ThinkPad X1 Carbon / Extreme, Surface Laptop 3 / Book 3 / Pro 7, HP ProBook / EliteBook / Spectre / ZBook & smaller (Mini -ITX) computers

6 IN STOCK

RRP Price €55.30

Specifications

Performance

USB connector type
USB Type-C
USB connector gender
Male
DVI output
No
HDMI output
Yes
DisplayPort output
No
Number of displays supported
2
HDMI version
1.4
Maximum resolution
3840 x 2160 pixels
Refresh rate at maximum resolution
30 Hz
Supported graphics resolutions
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160
Chipset
MegaChips - STDP4320, Parade - PS8402A, VIA/VLI - VL100
Certification
CE, FCC, REACH

Design

Product colour
Black
Integrated USB cable
Yes

System requirements

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

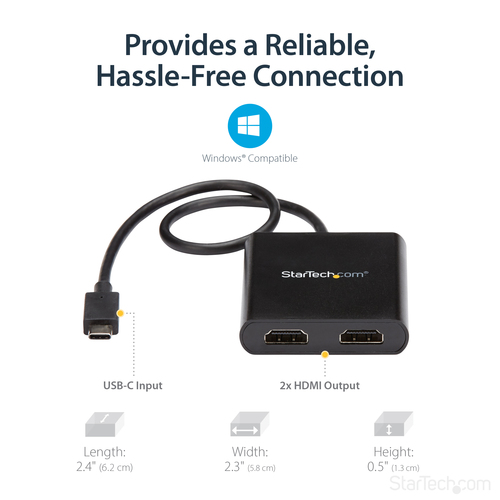

Weight & dimensions

Width
58 mm
Depth
62 mm
Height
13 mm
Weight
44 g

Operational conditions

Operating temperature (T-T)
5 - 35 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
50 - 90%

Packaging data

Package width
144 mm
Package depth
174 mm
Package height
32 mm
Package weight
143 g

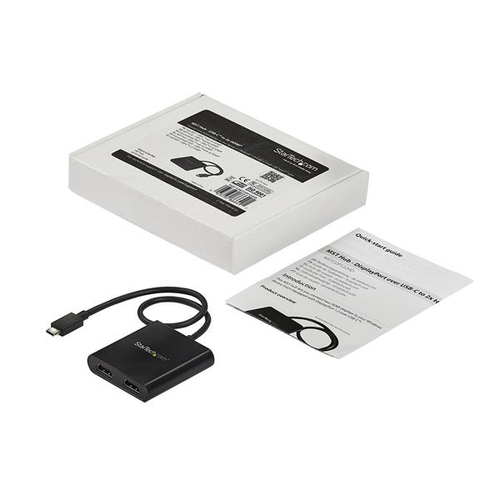

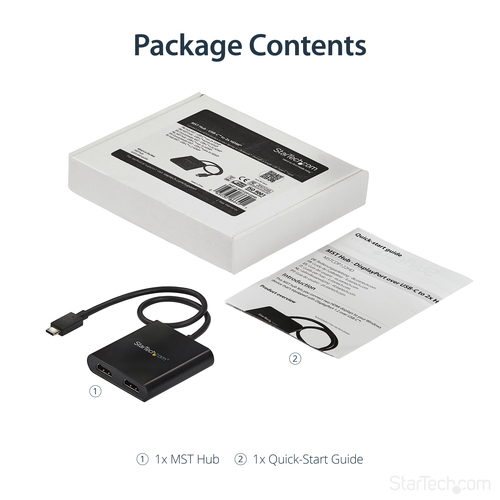

Packaging content

Quick installation guide
Yes

Technical details

Compliance certificates
RoHS

Logistics data

Products per master (outer) case
28 pc(s)
Master (outer) case width
332 mm
Master (outer) case length
504 mm
Master (outer) case height
229 mm
Harmonized System (HS) code
84733020
