N261P-006-BL - Cables & Adaptors by Eaton

N261P-006-BL - Cables & Adaptors by Eaton

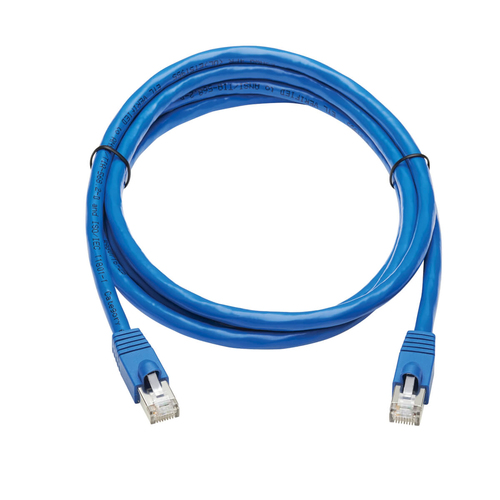

Name: Tripp Lite N261P-006-BL Cat6a 10G Snagless F/UTP Ethernet Cable (RJ45 M/M), PoE, CMR-LP, Blue, 6 ft. (1.83 m)
Brand: Eaton
SKU: N261P-006-BL
Price: 10.54 EUR
Availability: OutOfStock

High-Speed Cat6a F/UTP (FTP) Patch Cable Ideal for Your 10GBase-T Ethernet Network
This Cat6a F/UTP cable with RJ45 connectors transmits 10 Gbps data, voice and video through high-speed 10G equipment, including network switches, modems, routers, adapters, hubs and patch panels. Designed for fast transmission and excellent signal quality, this 6-ft. (1.83 m) blue cable ensures peak performance throughout your local area network (LAN). It reduces impedance and structural return loss, compared to standard 100 MHz wire.

Supports Power over Ethernet (PoE) to Cut Down on Expensive Power Supplies
Because this Cat6a cable supports Type 4 PoE, it can supply up to 100W of power to operate compatible PoE devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device.

Premium Protection from EMI/RFI and Other Noise Helps Your Equipment Perform Better
Various electromagnetic and radio sources found in virtually every home and business can cause disruptive interference on the AC line. Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a common cause of performance problems. The F/UTP cable's foil shielding blocks disruptive line noise that can disturb your electronics and inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer. Near-end crosstalk (NEXT) levels are practically eliminated, so you don't have to worry about keeping your cables separated in crowded pathways or spend valuable time on field testing.

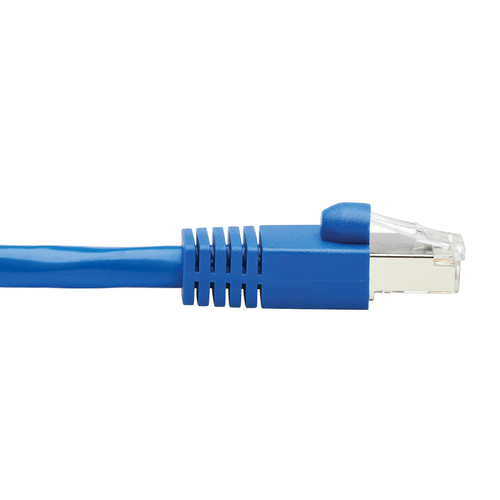

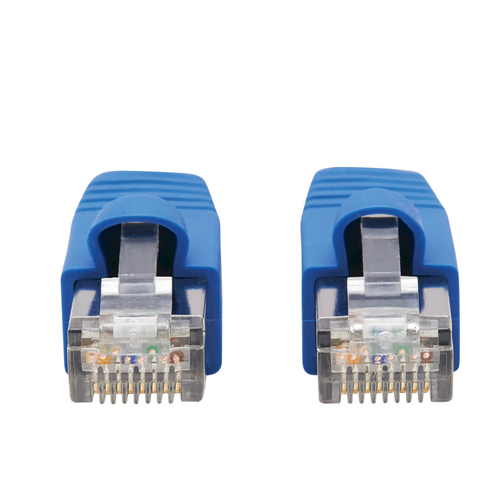

Snagless RJ45 Male Connectors Add Extra Protection During Installation
The RJ45 connectors' snagless design protects the locking tabs from being damaged or broken off during installation. Integral strain relief gives the N261P-006-BL extra flexibility, reduces stress, and helps the cable move freely without cracking or breaking loose from the connector.

CMR-LP Certified for Cable Installations with Increased Power Levels
UL's Limited Power (LP) certification indicates the N261P-006-BL has been evaluated to handle the marked current under installation scenarios without exceeding the temperature rating of the cable. This CMR-LP-certified cable provides a simple way to prepare installations for increased power levels without having to worry about susceptible issues caused by excessive heat.

Color-Coded to Avoid Misidentification That Can Cause Costly Downtime
This Cat6a F/UTP patch cable features a blue PVC jacket. The color-coding allows easy, fast identification in a crowded rack, patch panel or workstation and helps prevent the cable from becoming inadvertently disconnected.

ON ORDER

RRP Price €10.54

Specifications

Features

Product colour

Blue

Cable length

1.83 m

Cable standard

Cat6a

Cable shielding

F/UTP (FTP)

Connector 1

RJ-45

Connector 2

RJ-45

Connector 1 gender

Male

Connector 2 gender

Male

Connector contacts plating

Gold

Jacket material

Polyvinyl chloride (PVC)

Conductor type

Solid

Ethernet interface type

10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

AWG wire size

Data transfer rate

10000 Mbit/s

Snagless cable boot

Yes

Country of origin

Taiwan

Operational conditions

Operating temperature (T-T)

-10 - 60 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 90%

Certificates

Compliance certificates

RoHS

Weight & dimensions

Outer diameter

7.3 mm

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

177.8 mm

Package depth

12.7 mm

Package height

228.6 mm

Package weight

130 g

Logistics data

Harmonized System (HS) code

8544.42.2000

Master (outer) case GTIN (EAN/UPC)

10037332242522

Master (outer) case width

406.4 mm

Master (outer) case length

25.4 mm

Master (outer) case gross weight

1.32 kg

Master (outer) case height

457.2 mm

Products per master (outer) case

10 pc(s)

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.13 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

Tripp Lite N820-25M 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable, (LC/LC) - Aqua, 25M (82 ft.) Cables & Adaptors

25 Meter LC/LC 50/125 10Gb Aqua Fiber Patch Cable, OM3 Rated10gb Ethernet speed to 300 meters @850nmUse with VCSEL and LED laser light sourcesHigh-Speed, High-Bandwidth, Low-CostBackward compatible with legacy LAN'sIdeal for Fibre Channel (SAN) applicationsIEEE 802.3ae and TIA LOMMF compliant

€47.19

ANT-MP-I-OUT-SS-M= Cables & Adaptors

€283.15

CGR-N-CONN-S= Cables & Adaptors

€495.53

Tripp Lite N816-05M 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable (LC/SC) - Aqua, 5M (16 ft.) Cables & Adaptors

10gb Ethernet speed to 300 meters @850nm, OM3 RatedUse with VCSEL and LED laser light sourcesHigh-Speed, High-Bandwidth, Low-Cost Backward compatible with legacy LAN's Ideal for Fibre Channel (SAN) applicationsIEEE 802.3ae and TIA LOMMF compliant

€15.31

Cisco C3650-STACK-KIT network switch module Gigabit Ethernet Cables & Adaptors

€2,690.00

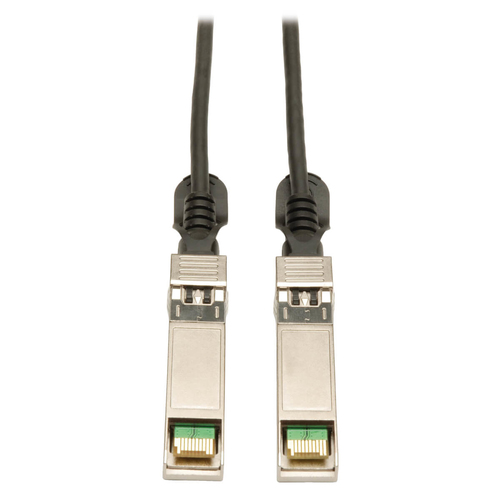

Tripp Lite N280-07M-BK SFP+ 10Gbase-CU Passive Twinax Copper Cable, SFP-H10GB-CU7M Compatible, Black, 7M (22.96 ft.) Cables & Adaptors
