N383L-03M - Cables & Adaptors by Eaton

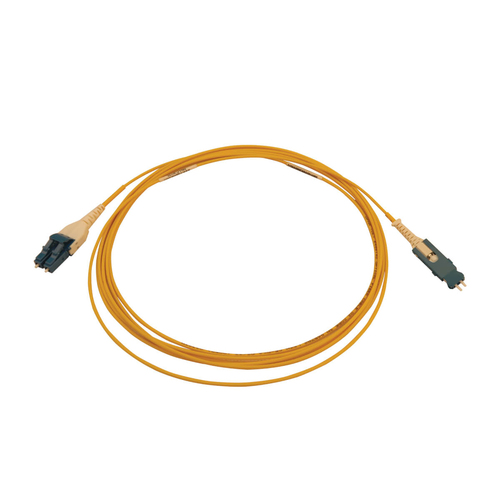

Name: Tripp Lite N383L-03M 40/100/400G Singlemode 9/125 OS2 Fiber Optic Cable (Duplex SN-UPC to Duplex LC-UPC M/M), LSZH, Yellow, 3 m (9.8 ft.)
Brand: Eaton
SKU: N383L-03M
Price: 111.22 EUR
Availability: OutOfStock

40/100/400 GbE Cable Supports High Bandwidths for High-Density Data Networking
The N383L-03M is a premium singlemode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals. Its high bandwidth is ideal for hyperscale, edge, enterprise and colocation data center interconnect (DCI) applications where density and speed are both very important. This OS2 cable is also backward compatible with 40 Gb and 100 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.

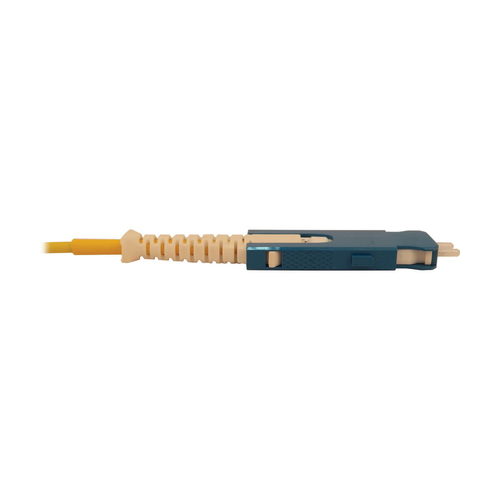

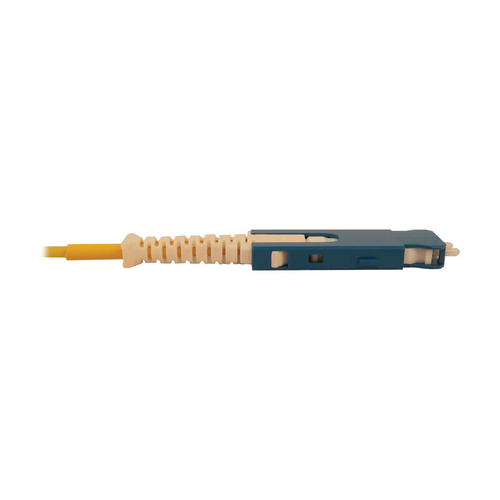

Compact SN Connector Designed for the Latest OSFP/QSFP-DD Transceivers

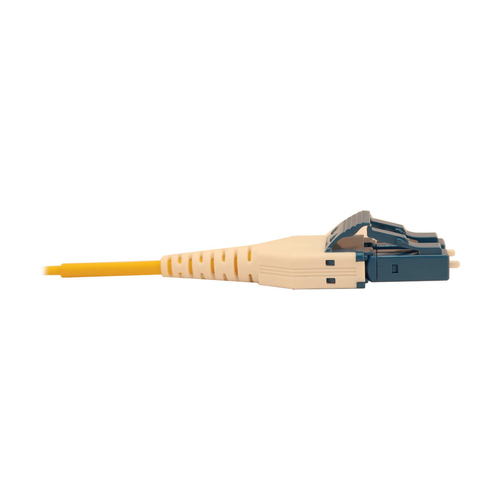

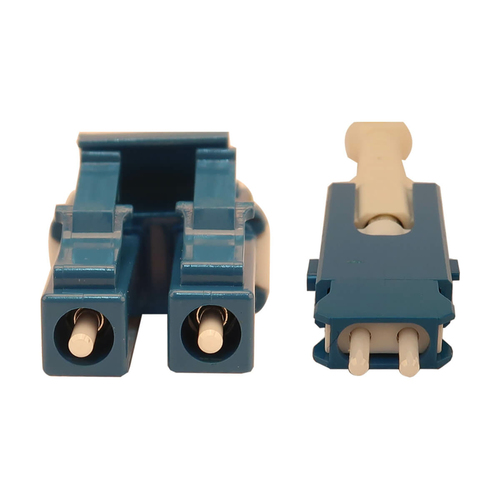

One cable end features an SN connector, which is four times smaller than the standard duplex LC connector on the other end. The SN connector provides individual and independent duplex fiber support for an OSFP/QSFP-DD transceiver. The push/pull boot encourages dense vertical stacking within a crowded patch panel or switch and makes the cable easy to install or remove with just one hand. The switchable SN/UPC duplex end lets you make quick polarity changes in the field without tools or the need to re-terminate the connectors.

Yellow-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.

ON ORDER

RRP Price €111.22

Specifications

Features

Cable length

2.99 m

Fibre optic type

OS2

Connector 1

Connector 2

Connector 1 gender

Male

Connector 2 gender

Male

Connector polish type

UPC

Cable type

OFNR

Product colour

Blue, White, Yellow

Full duplex

Yes

Core diameter

9 µm

Cladding diameter

125 µm

Fiber mode structure

Single-mode

Wavelengths supported

1310,1550 nm

Ethernet interface type

10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet, Gigabit Ethernet

Insertion loss

0.3 dB

Jacket material

Low smoke zero halogen (LSZH)

Sustainability

Sustainability compliance

Yes

Certificates

Compliance certificates

RoHS, CE, REACH

Weight & dimensions

Cable diameter

1.6 mm

Packaging data

Package width

177.8 mm

Package depth

12.7 mm

Package height

228.6 mm

Package weight

20 g

Logistics data

Country of origin

China

Master (outer) case width

185.4 mm

Harmonized System (HS) code

8544.70.0000

Master (outer) case length

149.9 mm

Master (outer) case height

101.6 mm

Master (outer) case gross weight

230 g

Products per master (outer) case

10 pc(s)

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.02 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
