N383L-05M - Cables & Adaptors by Eaton

40/100/400 GbE Cable Supports High Bandwidths for High-Density Data Networking

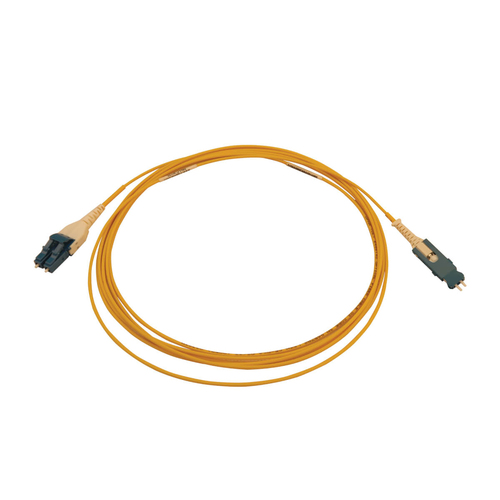

The N383L-05M is a premium singlemode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals. Its high bandwidth is ideal for hyperscale, edge, enterprise and colocation data center interconnect (DCI) applications where density and speed are both very important. This OS2 cable is also backward compatible with 40 Gb and 100 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.

Compact SN Connector Designed for the Latest OSFP/QSFP-DD Transceivers

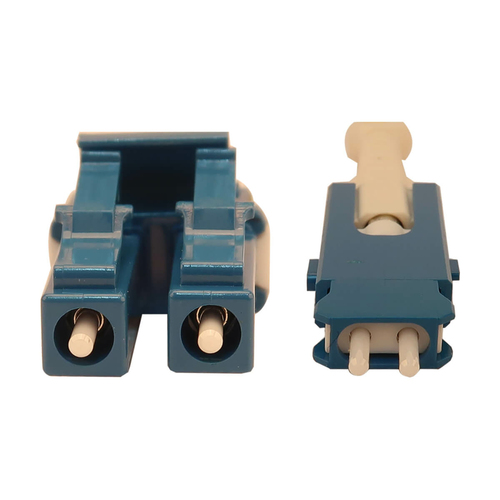

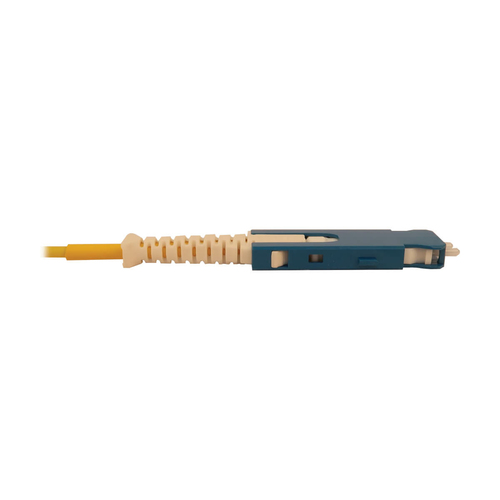

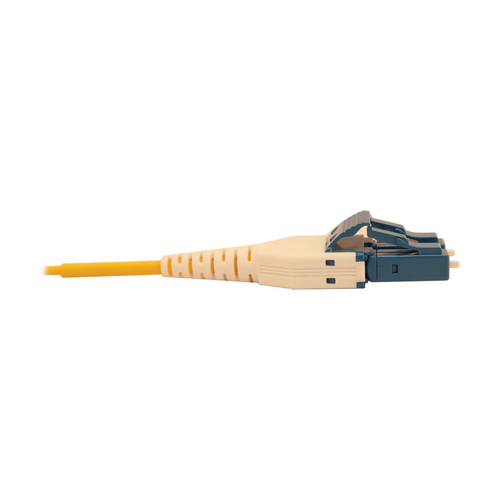

One cable end features an SN connector, which is four times smaller than the standard duplex LC connector on the other end. The SN connector provides individual and independent duplex fiber support for an OSFP/QSFP-DD transceiver. The push/pull boot encourages dense vertical stacking within a crowded patch panel or switch and makes the cable easy to install or remove with just one hand. The switchable SN/UPC duplex end lets you make quick polarity changes in the field without tools or the need to re-terminate the connectors.

Yellow-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.

ON ORDER

RRP Price €114.38

Specifications

Features

Cable length
5 m
Fibre optic type
OS2
Connector 1
SN
Connector 2
LC
Connector 1 gender
Male
Connector 2 gender
Male
Connector polish type
UPC
Cable type
OFNR
Product colour
Blue, White, Yellow
Full duplex
Yes
Core diameter
9 µm
Cladding diameter
125 µm
Fiber mode structure
Single-mode
Wavelengths supported
1310,1550 nm
Ethernet interface type
10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet, Gigabit Ethernet
Insertion loss
0.3 dB
Jacket material
Low smoke zero halogen (LSZH)

Sustainability

Sustainability compliance
Yes

Certificates

Compliance certificates
RoHS, CE, REACH

Operational conditions

Operating temperature (T-T)
-10 - 60 °C
Storage temperature (T-T)
-10 - 60 °C

Weight & dimensions

Cable diameter
1.6 mm

Packaging data

Package width
177.8 mm
Package depth
228.6 mm
Package height
6.4 mm
Package weight
30 g

Logistics data

Country of origin
China
Master (outer) case width
147.3 mm
Harmonized System (HS) code
8544.70.0000
Master (outer) case length
188 mm
Master (outer) case height
99.1 mm
Master (outer) case gross weight
290 g
Products per master (outer) case
10 pc(s)
