Name: Tripp Lite N390-02M-8LC-AP MTP/MPO (APC) to 4xLC (UPC) Singlemode Breakout Patch Cable, 40/100 GbE, QSFP+ 40GBASE-PLR4, Plenum, Yellow, 2 m (6.6 ft.)
Brand: Eaton
SKU: N390-02M-8LC-AP
Price: 248.11 EUR
Availability: OutOfStock

9/125 Rated Singlemode Cable for 40/100 Gb Ethernet Applications

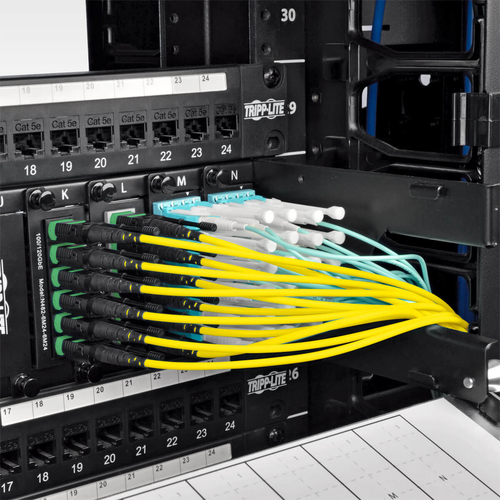

Designed for high-density fiber patching between data center MDFs and IDFs in enterprise installations
Optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks
Plenum-rated jacket suited for ceilings, walls and ducts
Yellow-colored for identification as a singlemode cable

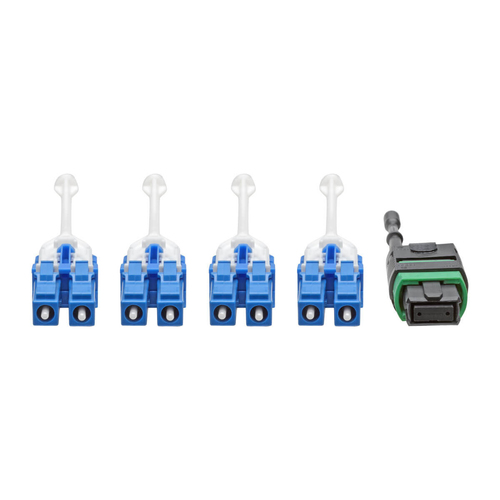

MTP/MPO APC and LC Duplex UPC Connectors with Push/Pull Tabs
MTP/MPO female connector and 8 LC duplex male connectors—no splicing required

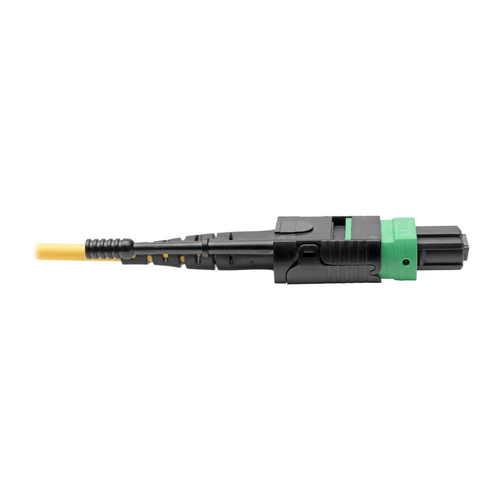

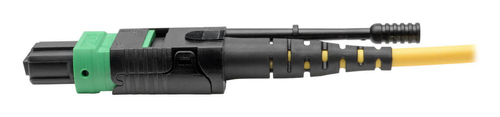

12-fiber MTP/MPO connector 12 times denser than SC connector
APC connector angled to prevent light from reflecting back into laser

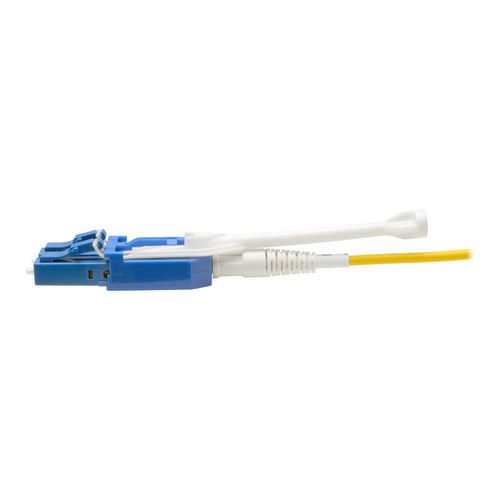

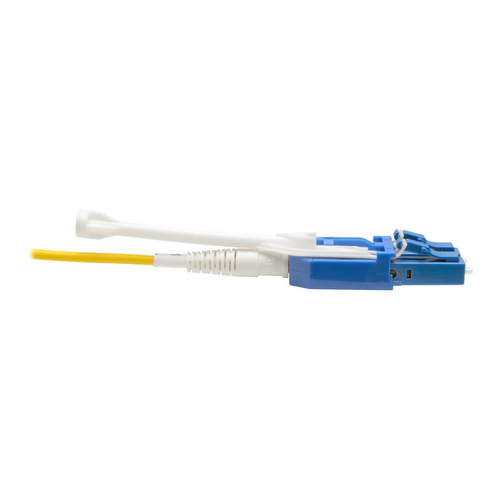

UPC connector with premium-grade ceramic ferrule for 10 GbE and faster applications
Push/pull tabs easy to install and remove with one hand

Error-Free Signal Transfer
Fully transmits 40GBASE-PLR4 with 4 fibers transmitting at 10 Gbps in each direction
100% tested for low insertion loss and back reflection
Slim, space-saving uniboot design easier to manage in crowded applications

ON ORDER

RRP Price €248.11

Specifications

Features

Cable length

2 m

Connector 1

MTP

Connector 2

Connector 1 gender

Male

Connector 2 gender

Female

Cable type

OFNP

Product colour

Yellow

Core diameter

8.3 µm

Cladding diameter

125 µm

Fiber mode structure

Single-mode

Data transfer rate

100 Gbit/s

Connector material

Ceramic

Certificates

Compliance certificates

RoHS

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Storage temperature (T-T)

-20 - 60 °C

Packaging data

Package width

177.8 mm

Package depth

12.7 mm

Package height

228.6 mm

Package weight

70 g

Logistics data

Master (outer) case GTIN (EAN/UPC)

10037332205589

Country of origin

China

Master (outer) case width

185.4 mm

Harmonized System (HS) code

8544.70.0000

Master (outer) case length

149.9 mm

Master (outer) case height

101.6 mm

Master (outer) case gross weight

770 g

Products per master (outer) case

10 pc(s)

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.07 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

StarTech.com 4-Port USB-C Hub - 5Gbps - Bus Powered - USB C to 4x USB-A Hub w/ Optional Auxiliary Power Input - Portable Desktop/Laptop USB Hub - 1ft (30cm) Cable - USB Expansion Hub Cables & Adaptors

USB Type-C to 4x USB Type-A | USB 3.2 Gen 1 (5Gbps) | Auxiliary Micro USB Power Input (up to 4.5W)This USB Hub adds four USB-A 3.2 Gen 1 (5Gbps) ports to a USB-C enabled desktop or laptop computer. The USB Hub connects to a USB-C port on a computer, using the built-in 1ft. (30cm) host cable. The USB hub is backward compatible with USB 2.0 (480Mbps) devices, ensuring support for a wide range of modern and legacy USB peripherals (e.g., thumb drives, external HDDs/SSDs, HD cameras, mice, keyboards, webcams, and audio headsets). The USB hub is compact in size, facilitating portability when travelling.Bus-Powered with Optional Auxiliary PowerThe USB hub can operate with bus power alone. It features a Micro USB power input that can be connected to a USB power adapter (sold separately), providing up to 4.5W (5V/0.9A) of power in addition to the 15W of bus power. This flexibility is ideal for applications requiring additional power, such as connecting a high-power USB device (e.g., external HDD/SSD), while using the other ports to connect lower powered devices. The downstream ports are each capable of providing up to 4.5W of power to the connected peripherals. For added protection to connected USB devices, the USB ports feature Overcurrent Protection (OCP). OCP prevents USB peripherals from drawing more power than is safely allocated for each port.Plug and PlayThis device is OS independent, supporting all operating systems, including Windows, macOS, ChromeOS, iPadOS, and Android. The Hub is automatically detected, configured, and installed upon connection to a host computer. This ensures automatic installation and with any USB-C laptop, including Thunderbolt 3, Thunderbolt 4, and USB4 computers such as Apple MacBook (Intel/M1/M2), Lenovo X1 Carbon, and Dell XPS. The built-in extra-long 1 ft. (30 cm) USB-C host cable ensures easy setup and reduces connector strain on 2-in-1 devices such as the Surface Pro 7, iPad Pro, HP Elite X2 and laptops on riser stands.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. The applicable software for this product is the USB Event Monitoring Utility. Use this utility to track and log any connected USB devices.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/connectivity-toolsThis product is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage

€37.00

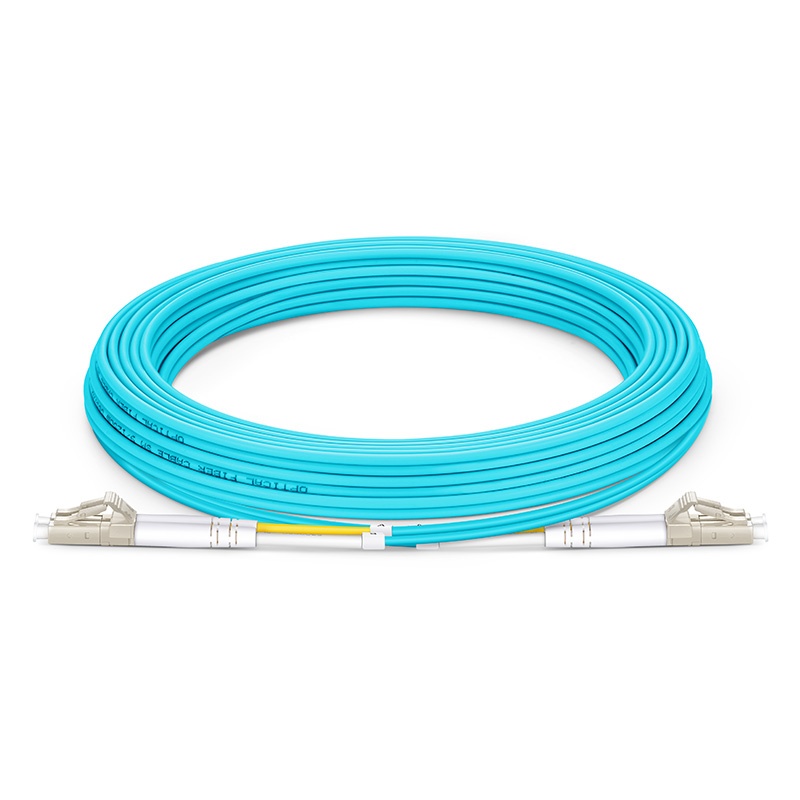

20m (66ft) Fiber Patch Cable, 2 Fibers, LC UPC Duplex to LC UPC Duplex, Multimode (OM3), Riser (OFNR), 2.0mm, Tight-Buffered, Aqua Cables & Adaptors

Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk. This OM3 fiber patch cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10/40/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections. The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient.

€23.22

StarTech.com DC Power Adapter - 5V, 4A Cables & Adaptors

This 5V power supply can provide a power source for any electronic device that has an C-type barrel and requires 5 volts and up to 4 amps of power.Replace your failed or lost power adapterThe adapter is a perfect replacement for the lost or damaged power adapter you've used to power your existing electronics.Keep a spare power adapter on handWhen downtime isn't an option, keeping spare power adapters on hand ensures that you won't be left waiting for a replacement to arrive or have to replace your devices just for the sake of a compatible power source.The SVA5M4NEUA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

€17.27

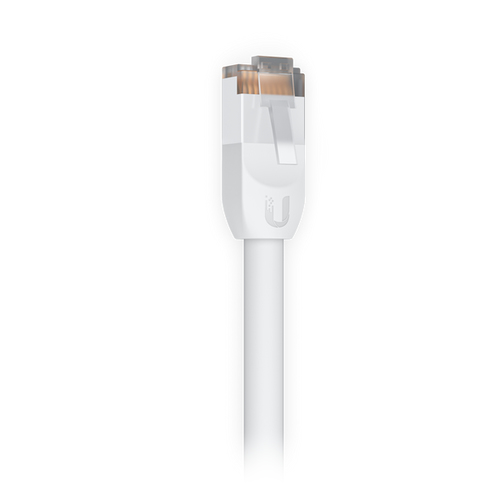

Ubiquiti UACC-CABLE-PATCH-OUTDOOR-8M-W networking cable White Cat5e S/UTP (STP) Cables & Adaptors

Rugged, outdoor patch cable designed to function in the harshest environments.The UniFi Patch Cable Outdoor is an all-weather patch cable designed for outdoor UniFi deployments that require enhanced protection from the elements. It features a shielded RJ45 plug, internal foil shielding, and a built-in ESD drain wire—all encased in a weatherproof, insulating jacket. The UniFi Patch Cable Outdoor is available in multiple lengths (1, 2, 3, 5, and 8 meters) to ensure that you can reach all of your devices.

€11.83

2M (7FT) CISCO SFP-H10GB-CU2M COMPATIBLE 10G SFP+ PASSIVE DIRECT ATTACH COPPER TWINAX CABLE Cables & Adaptors

2M (7FT) CISCO SFP-H10GB-CU2M COMPATIBLE 10G SFP+ PASSIVE DIRECT ATTACH COPPER TWINAX CABLE

€15.60

5M (16FT) LC UPC TO LC UPC DUPLEX OM3 MULTIMODE PVC (OFNR) 2.0MM FIBER OPTIC PATCH CABLE Cables & Adaptors

5M (16FT) LC UPC TO LC UPC DUPLEX OM3 MULTIMODE PVC (OFNR) 2.0MM FIBER OPTIC PATCH CABLE

€6.72

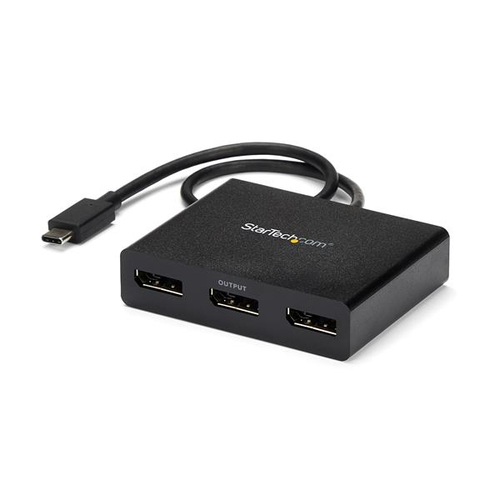

StarTech.com 3-Port USB-C Multi-Monitor Adapter, USB Type-C to 3x DisplayPort 1.2 MST Hub, Triple 1080p 30Hz DP Laptop Display Extender / Splitter, Extra-Long Built-In Cable - Windows Only Cables & Adaptors

Multi-Monitor Video Splitter | Windows | Thunderbolt 3 CompatibleThis 3-port USB-C to DisplayPort MST hub lets you connect three DisplayPort monitors to your USB Type-C Windows device, conveniently helping you to maximize your productivity. Multitasking Made Easy With devices becoming more portable than ever, you can be limited to fewer video outputs and confined to your small integrated screen. This MST hub solves that problem by enabling you to connect three displays to your USB-C computer, making multi-tasking much easier. Using this USB-C to DisplayPort splitter, you can mirror your display onto additional monitors or stream independent content to each display, which makes it the ideal accessory for travel or hot-desking. Astonishing Picture Quality Multi-Stream Transport (MST) technology uses your existing video card to minimize the use of system resources while delivering UHD 4K resolutions for up to two monitors simultaneously. Plus, because the multi-monitor splitter can output HD 1080p on three independent displays, it’s perfect for all high-resolution applications such as graphic design and medical imaging. Hassle-Free Setup MST offers an easy setup, by natively working on any Windows device that supports DP Alt Mode over USB Type-C. This USB-C multi-monitor adapter is Thunderbolt 3 compatible and offers plug-and-play installation with no drivers or software required. Additionally, this DP MST hub is powered by the USB-C port, meaning no external power cords are necessary. MSTCDP123DP is backed by a StarTech.com 3-year warranty, and free lifetime technical support. The StarTech.com Advantage- MULTIPLE MONITORS: USB-C to DisplayPort splitter to drive 2x 4K 30Hz or 3x 1080p 60Hz DP displays using a USB-C DP Alt-Mode port (DP 1.2/HBR2/MST) w/ no video compression; Thunderbolt 3 compatible- CONVENIENCE: With a built-in 1ft cable, this bus-powered 3-port MST hub provides an easy method to connect up to three independent screens with any DisplayPort over USB Type-C Windows host device- COMPATIBLE WITH: Dell XPS / Precision / Latitude, Lenovo ThinkPad X1 Carbon / Extreme, Surface Laptop 3 / Book 3 / Pro 7, HP ProBook / EliteBook / Spectre / ZBook & smaller (Mini -ITX) computers

€76.69

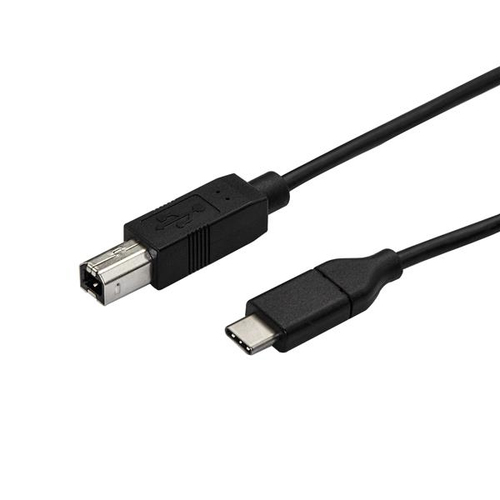

StarTech.com USB-C to USB-B Printer Cable - M/M - 0.5 m - USB 2.0 Cables & Adaptors
