N390B-05M-12-AP - Cables & Adaptors by Eaton

100 GbE Cable Supports Higher Bandwidths Needed for Data Networking
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths in enterprise applications in wiring closets, telecom rooms and data centers. This singlemode 9/125 OS2 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1550 nm. It is also backward compatible with 10 Gb, 25 Gb and 40 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb.

100% Tested for Low Insertion Loss and Back Reflection

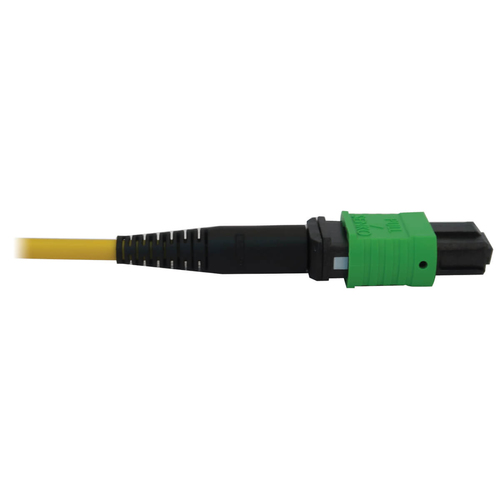

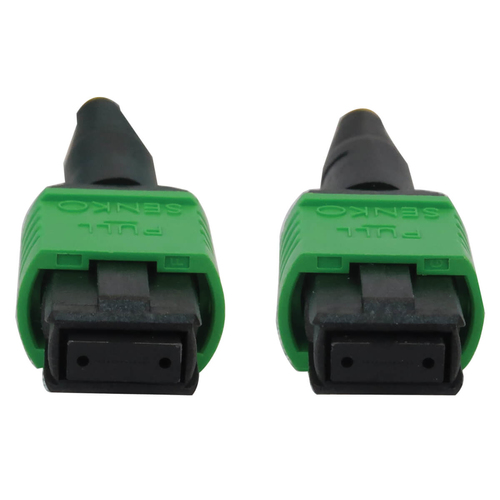

The 12-fiber MTP/MPO APC connectors with green housings help minimize back reflection with low insertion loss.

Yellow Jacket Helps Avoid Misidentification That Can Cause Costly Downtime

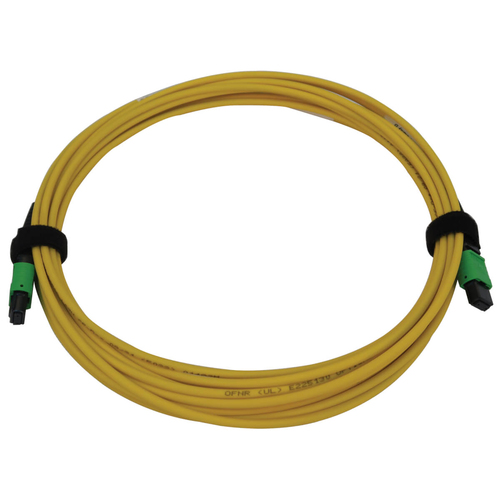

The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.

ON ORDER

RRP Price €158.00

Specifications

Features

Cable length
5 m
Fibre optic type
OS2
Connector 1
MPO/MTP
Connector 2
MPO/MTP
Connector 1 gender
Female
Connector 2 gender
Female
Connector polish type
APC
Cable type
OFNR
Product colour
Black, Yellow
Core diameter
9 µm
Cladding diameter
125 µm
Fiber mode structure
Single-mode
Wavelengths supported
1310,1550 nm
Ethernet interface type
10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet
Data transfer rate
400 Gbit/s
Insertion loss
0.7 dB
Jacket material
Low smoke zero halogen (LSZH)

Sustainability

Sustainability compliance
Yes
Sustainability certificates
UL ECOLOGO

Certificates

Compliance certificates
RoHS, CE, REACH

Operational conditions

Operating temperature (T-T)
-10 - 60 °C
Storage temperature (T-T)
-10 - 60 °C

Weight & dimensions

Bending radius
2 cm

Packaging data

Package width
177.8 mm
Package depth
12.7 mm
Package height
228.6 mm
Package weight
50 g

Packaging content

Quantity per pack
1 pc(s)

Logistics data

Master (outer) case GTIN (EAN/UPC)
10037332272109
Country of origin
China
Master (outer) case width
185.4 mm
Harmonized System (HS) code
8544.70.0000
Master (outer) case length
149.9 mm
Master (outer) case height
101.6 mm
Master (outer) case gross weight
600 g
Products per master (outer) case
10 pc(s)
