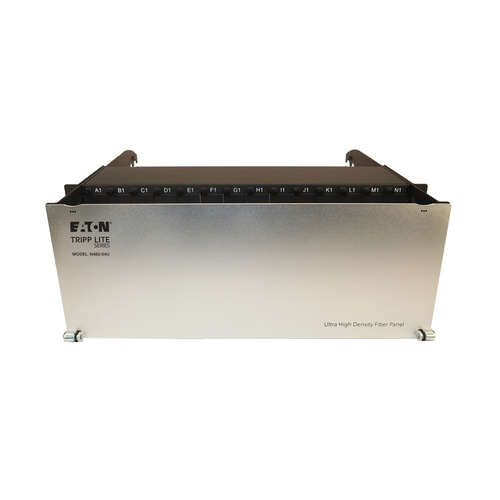

Tripp Lite N482-04U Enclosure for 28 High-Density Fiber Cassettes, 4U

Tripp Lite N482-04U Enclosure for 28 High-Density Fiber Cassettes, 4U

Name: Tripp Lite N482-04U Enclosure for 28 High-Density Fiber Cassettes, 4U
Brand: Eaton
SKU: N482-04U
Price: 867.52 EUR
Availability: OutOfStock

4U Fiber Enclosure Adds Up to 28 High-Density Cassettes to Your Rack Installation

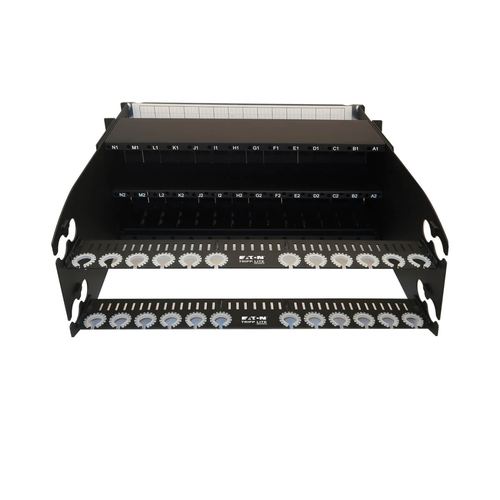

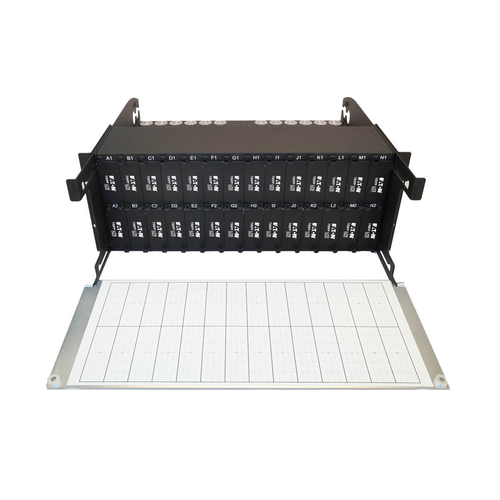

Make the most of your rack space by inserting up to 28 N482-Series fiber cassettes (sold separately) into this high-density enclosure panel, allowing you to patch as many as 336 duplex LC ports (that’s 672 fiber connections). Mounting in 4U of space in your EIA-standard 19-inch rack, this fiber enclosure comes with an optional rear-mounting cable management bracket for proper organization and routing of cabling. A removable fold-down door panel in front protects your connections and rotates out of the way to provide full access.

The Smart Solution for Interconnecting 10 GbE, 40 GbE and 100/120GbE Network Equipment
Cassettes come in multiple variations, and the heavy-duty steel N482-04U lets you interconnect any combination of 10 Gb, 40 Gb and 100/120 Gb network equipment, giving you the flexibility to adapt as your technology changes. This fiber enclosure seamlessly connects to your existing cabling infrastructure. It supports a wide range of singlemode and multimode applications and fiber protocols in high-density telecom and data center environments.

ON ORDER

RRP Price €867.52

Specifications

Network

Ports quantity

336

Cable types supported

Fiber

Single-mode fiber (SMF) supported

Yes

Multi-mode fiber (MMF) supported

Yes

Design

Product colour

Black, Silver

Mounting

Rack mounting

Rack capacity

Cable management

Yes

Certificates

Compliance certificates

REACH, RoHS

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

5 - 85%

Storage temperature (T-T)

-20 - 60 °C

Storage relative humidity (H-H)

5 - 85%

Sustainability

Sustainability compliance

Yes

Weight & dimensions

Width

482.1 mm

Height

177.8 mm

Depth

430 mm

Weight

6.5 kg

Packaging data

Package width

472.4 mm

Package depth

563.9 mm

Package height

233.7 mm

Package weight

8.44 kg

Logistics data

Country of origin

China

Master (outer) case width

500.4 mm

Master (outer) case length

599.4 mm

Master (outer) case height

480.1 mm

Master (outer) case gross weight

16.5 kg

Products per master (outer) case

2 pc(s)

Master (outer) case GTIN (EAN/UPC)

10037332262810

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

6.5 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

QNAP SFF-8644 1m 39.4" (1 m) Cables & Adaptors

QNAP integrates technologies and designs to bring forth quality products that effectively improve business efficiency on file sharing, virtualization applications, storage management and surveillance in the business environments, as well as enrich entertainment life for home users with the offering of a fun multimedia center experience.

€76.39

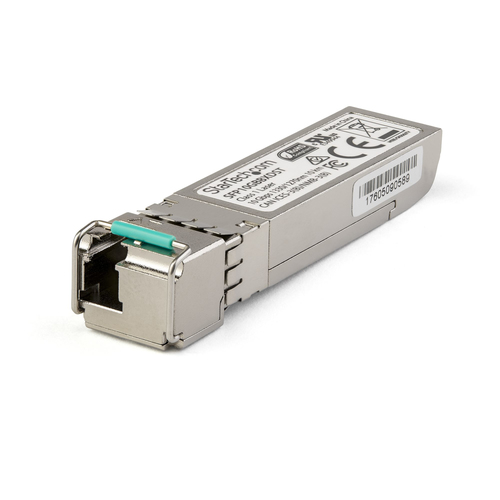

StarTech.com Cisco SFP-10G-BX-D-20 Compatible SFP+ Module - 10GBASE-BX - 10 GbE Gigabit Ethernet BiDi Fiber (SMF) Cables & Adaptors

10 Gbps | Single Mode Fiber | LC | 20 km (12.4 mi) | Lifetime WarrantyThe SFP-10G-BX-D-20-ST is a Cisco SFP-10G-BX-D-20 compatible downstream fiber SFP+ transceiver which pairs with StarTech.com's SFP-10G-BX-U-20-ST. They are designed, programmed and tested to work with 10GBASE-BX compatible Cisco switches and routers. The SFP+ transceiver module supports a maximum distance of up to 20 km (12.4 mi) and delivers dependable 10 GbE connectivity over fiber cabling.Technical Specifications:• Wavelength: 1330nmTx/1270nmRx• Maximum Data Transfer Rate: 10Gbps• Type: Single Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 20 km (12.4 mi)• Power Consumption: Low power consumption• DDM: YesThis SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

€369.26

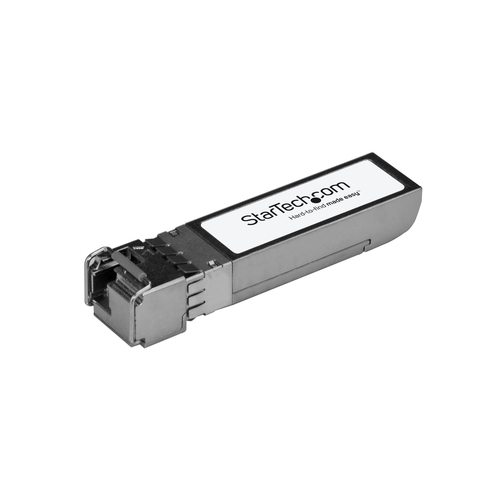

StarTech.com Dell EMC SFP-10G-BX40-U Compatible SFP+ Module - 10GBASE-BX-U - 10 GbE Gigabit Ethernet BiDi Fiber (SMF) Cables & Adaptors
