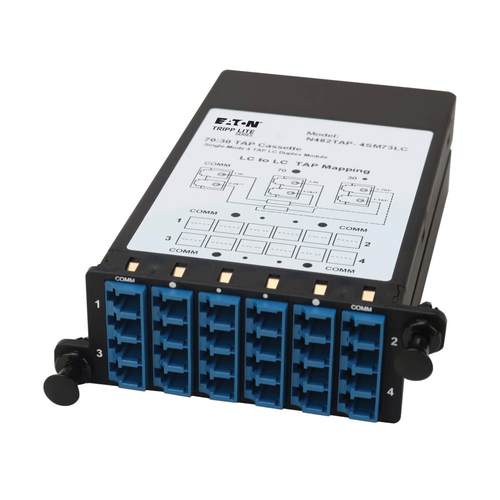

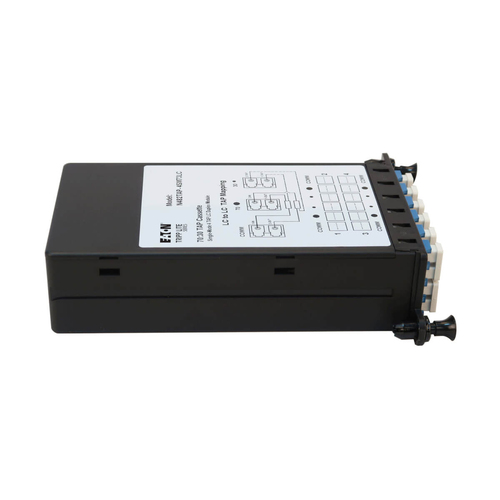

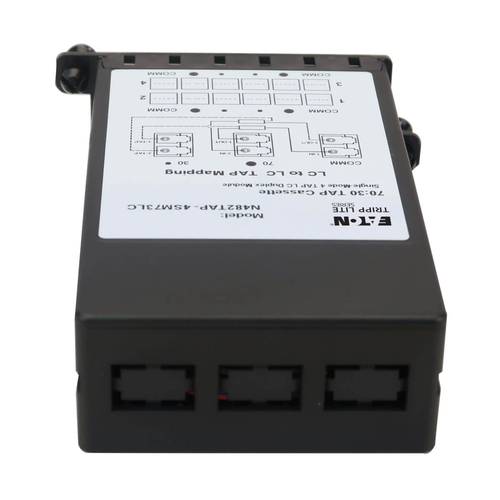

Tripp Lite N482TAP-4SM73LC Fiber TAP Cassette - Singlemode, 4x Duplex LC, 70/30 Split

Tripp Lite N482TAP-4SM73LC Fiber TAP Cassette - Singlemode, 4x Duplex LC, 70/30 Split

Name: Tripp Lite N482TAP-4SM73LC Fiber TAP Cassette - Singlemode, 4x Duplex LC, 70/30 Split
Brand: Eaton
SKU: N482TAP-4SM73LC
Price: 566.91 EUR
Availability: OutOfStock

Fiber Optic TAP Cassette Helps You Monitor and Analyze Network Data
This N482TAP-4SM73LC singlemode TAP (traffic access point) cassette is a passive device added to a fiber optic network to enable real-time monitoring. Its optical splitter divides the optical signal into two outputs, one for the downstream device and one for monitoring, without introducing latency or creating a single point of failure.

Creates a 70/30 Split Ratio for User Traffic and Signal Monitoring
Network monitoring is used to gather data to analyze performance issues, optimize network traffic and uncover security threats in your data center, telecom carrier network or R&D facility. This TAP cassette directs 30 percent of the light to a nearby monitoring device. The remaining 70 percent is transmitted as usual throughout the network without affecting performance.

Compatible with Singlemode Cabling
This passive TAP cassette supports 40/100 Gb internally using singlemode fiber optic cable, enabling you to perform monitoring and data analysis without causing delays or affecting network performance. It is compatible with recommended cables, including the N370-Series, for connecting to switches, routers and monitoring equipment.

Easy to Install with Compatible Enclosures
The singlemode N482TAP-4SM73LC works with N482-00U (fits one cassette), N482-01U (fits five cassettes), N482-02U (14 cassettes) and N482-04U (28 cassettes) chassis. The futureproof-friendly modular design allows you to remove the cassette without replacing the panel or removing other cassettes. The TAP cassette also complies with IEEE 802.3ae (10 Gb) and ANSI T11.2 (Fibre Channel) requirements. A 0.20 dB maximum insertion loss falls under IEEE 802.3ae maximum channel loss spec of <25 dB.

Factory-Terminated Ports Help Reduce Installation Time
The OM4-rated cassette has 12 Duplex LC ports that allow fast, easy connection of cables. The durable plastic cassette comes with dust caps to protect unused ports.

ON ORDER

RRP Price €566.91

Specifications

Network

Networking standards

IEEE 802.3ae

Ethernet interface type

400 Gigabit Ethernet, Gigabit Ethernet

Duplex

Yes

Single-mode fiber (SMF) supported

Yes

Fiber optic connector

Fiber ports quantity

Design

Product colour

Black

Compatible products

Tripp Lite N482-00U, Tripp Lite N482-01U, Tripp Lite N482-02U, Tripp Lite N482-04U

Certificates

Compliance certificates

REACH, RoHS

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

5 - 85%

Storage temperature (T-T)

-20 - 60 °C

Packaging data

Package width

200.7 mm

Package depth

119.4 mm

Package height

50.8 mm

Package weight

200 g

Logistics data

Country of origin

China

Master (outer) case width

391.2 mm

Master (outer) case length

325.1 mm

Master (outer) case height

325.1 mm

Master (outer) case gross weight

4.71 kg

Products per master (outer) case

20 pc(s)

Master (outer) case GTIN (EAN/UPC)

10037332262599

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.2 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

StarTech.com 1 ft Coax HD15 VGA to 5 BNC RGBHV Monitor Cable - M/F Cables & Adaptors

Connect a BNC video source to a VGA distribution amplifier or PCThe VGABNCMF1 1-foot Coax HD15 VGA to 5 BNC RGBHV Adapter Cable features an HD15 VGA (male) connector and 5 BNC (RGBHV) (female) connectors, allowing you to connect your existing BNC video source to a VGA distribution amplifier or PC.The cable can also be used with a VGA out signal, breaking out to 5 BNC female connectors that can be used with a 5 BNC (M-M) cable for use with a BNC monitor/display.The StarTech.com Advantage- Connect your wall mounted VGA TV or projector to your existing BNC cable runs- Guaranteed reliability with StarTech.com’s lifetime warranty

€8.03

Digitus CAT 6 S/FTP patch cord Cables & Adaptors

Future-oriented standards and high-end quality for your network.- With LSZH (Low Smoke Zero Halogen) sheath for best fire behaviour and low smoke emissions.- Transparent red colored plug with metal shielding for easy identification of Category 6 (250 MHz)- Conductor: Copper (Cu)- PoE+ readyThe DIGITUS® Category 6 Class E patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 6 cabling. The performance is tested up to 250 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking. You can easily identify the Category 6, because of the transparent red colored connector.

€1.50

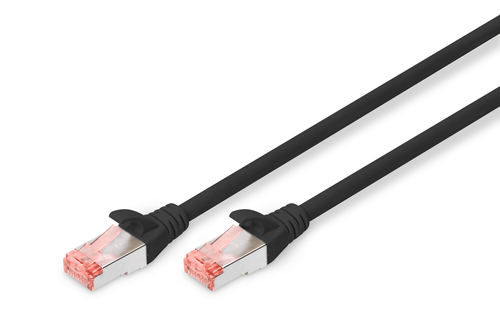

Digitus CAT 6 S/FTP patch cord Cables & Adaptors

€2.72

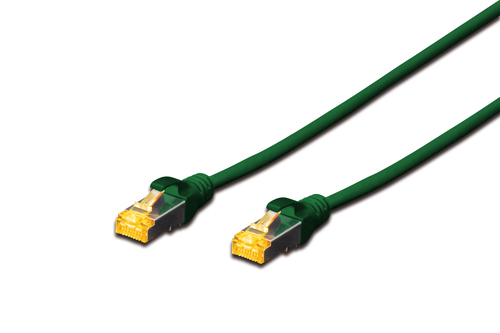

Digitus CAT 6A S/FTP patch cord Cables & Adaptors

Future-oriented standards and high-end quality for your network.- With LSZH (Low Smoke Zero Halogen) sheath for best fire behaviour and low smoke emissions.- Transparent yellow colored plug with metal shielding for easy identification of Category 6A (500 MHz)- Conductor: Copper (Cu)- PoE+ readyThe DIGITUS® Category 6A Class EA patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 A specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 6A cabling. The performance is tested up to 500 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking. You can easily identify the Category 6A, because of the transparent yellow colored connector.

€3.52

Digitus CAT 6 S/FTP patch cord Cables & Adaptors

€3.43

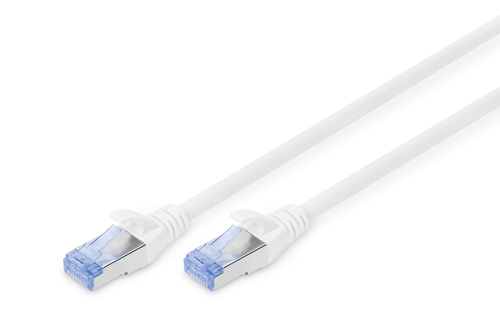

Digitus CAT 5e SF/UTP patch cord Cables & Adaptors

Future-oriented standards and high-end quality for your network.- Transparent blue colored plug with metal shielding for easy identification of Category 5e (100 MHz)- Conductor: Copper (Cu)- PoE readyThe DIGITUS® Category 5e Class D patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 5e specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 5e cabling. The performance is tested up to 100 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking.You can easily identify the Category 5e, because of the transparent blue colored connector.

€2.95

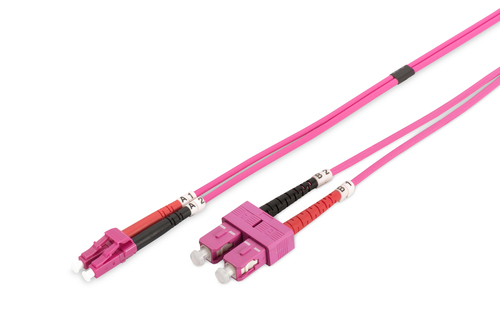

Digitus Fiber Optic Multimode Patch Cord, OM4, LC / SC Cables & Adaptors

Future-oriented standards and high-end quality for your network.FO patch cord, duplex, LC to SC,MM OM4 50/125 µ, 2 m

€5.34

Digitus CAT 5e SF/UTP patch cord Cables & Adaptors

€11.45

Digitus CAT 5e SF/UTP patch cord Cables & Adaptors

€3.83

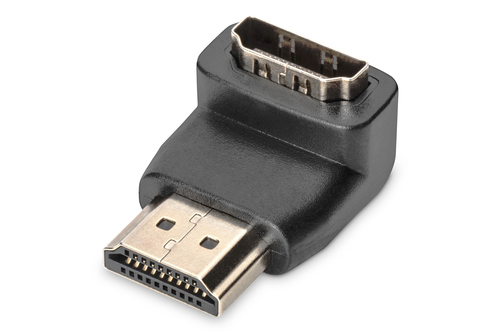

Digitus HDMI adapter, 90° angled Cables & Adaptors
