Tripp Lite N484-12M12 40Gb Pass-Through Cassette - (x12) 12-Fiber MTP/MPO ( Female )

Tripp Lite N484-12M12 40Gb Pass-Through Cassette - (x12) 12-Fiber MTP/MPO ( Female )

Name: Tripp Lite N484-12M12 40Gb Pass-Through Cassette - (x12) 12-Fiber MTP/MPO ( Female )
Brand: Eaton
SKU: N484-12M12
Price: 334.83 EUR
Availability: OutOfStock

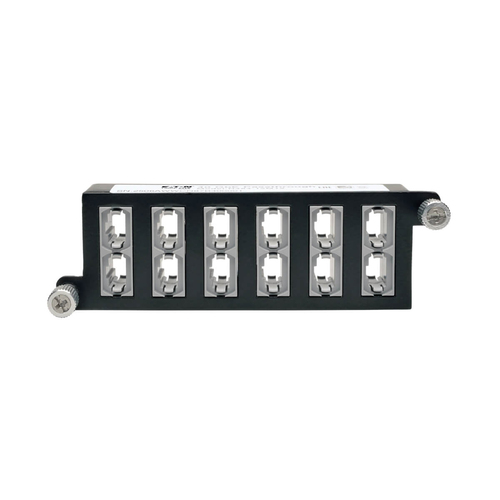

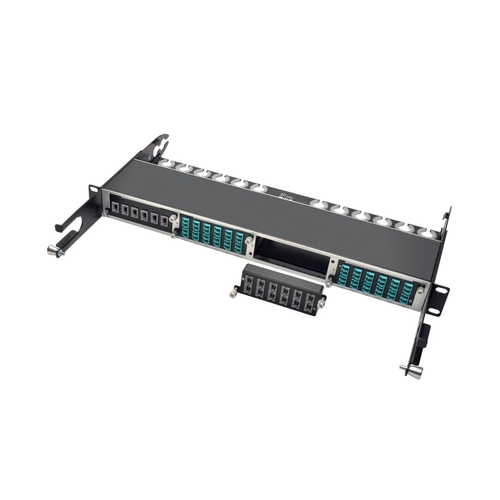

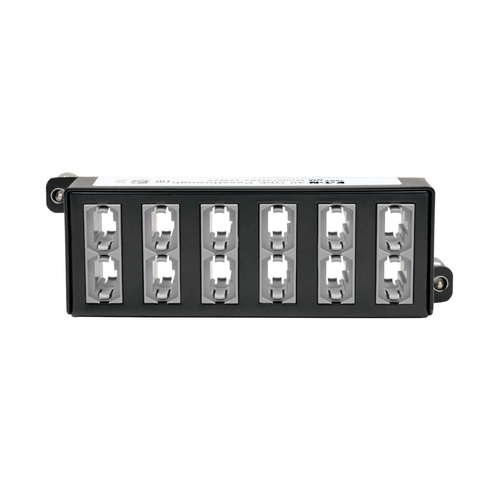

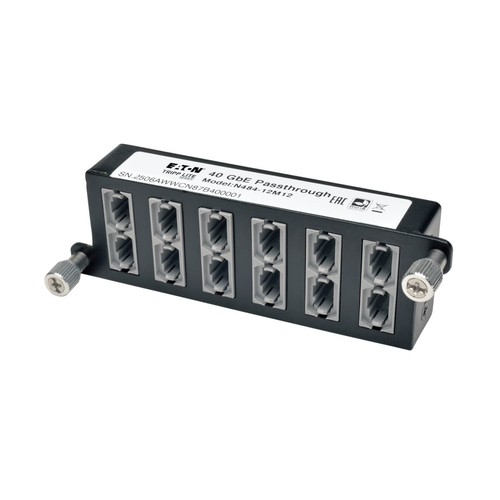

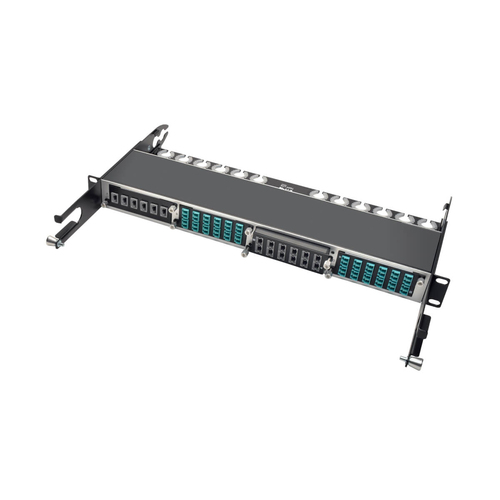

The N484-12M12 is a high-density 40 Gb pass-through cassette, with (x12) 12-Fiber MTP/MPO connections. Designed specifically for use with N484-00U and N484-01U chassis. Up to four cassettes per N484-01U or one cassette per N484-00U. Each MTP/MPO connector is rated for up to 40 GbE, with an extremely low insertion loss of 0.35db, well under the IEEE 802.3ae maximum channel loss spec of <25db. Guaranteed compatibility when used with recommended cabling. Designed specifically for use with N842-, N844- and N845-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy-duty 1.0mm cold-rolled steel.

ON ORDER

RRP Price €334.83

Specifications

Network

Networking standards

IEEE 802.3ae

Ethernet interface type

40 Gigabit Ethernet

Maximum data transfer rate

40000 Mbit/s

Ports quantity

Connector(s)

MTP

Design

Product colour

Black

Material

Steel

Certificates

Compliance certificates

RoHS

Certification

REACH

Operational conditions

Operating temperature (T-T)

-20 - 50 °C

Weight & dimensions

Width

130 mm

Height

30.5 mm

Depth

119.4 mm

Weight

220 g

Packaging data

Package width

200.7 mm

Package depth

37.1 mm

Package height

59.9 mm

Package weight

220 g

Logistics data

Country of origin

China

Products per pallet

1 pc(s)

Master (outer) case width

225 mm

Master (outer) case length

125 mm

Master (outer) case height

134.9 mm

Master (outer) case gross weight

2.3 kg

Products per master (outer) case

10 pc(s)

Master (outer) case GTIN (EAN/UPC)

10037332187212

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.22 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
