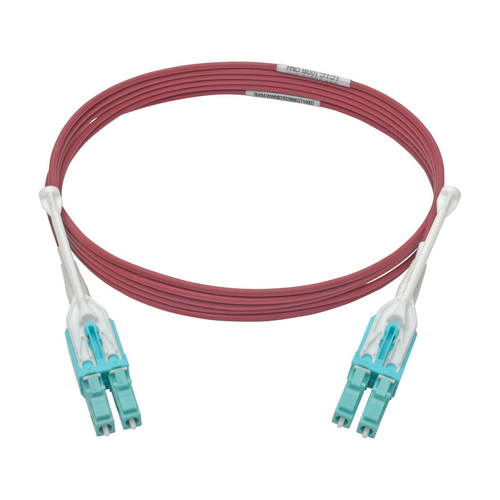

Name: Tripp Lite N821-02M-MG-T 10G Duplex Multimode 50/125 OM4 LSZH Fiber Optic Cable (LC/LC), Push/Pull Tabs, Magenta, 2 m
Brand: Eaton
SKU: N821-02M-MG-T
Price: 38.25 EUR
Availability: OutOfStock

The N821-02M-MG-T 10 Gb Duplex Multimode 50/125 OM4 LSZH Fiber Patch Cable is OM4-rated for use with 10 Gb Ethernet applications up to 400 meters (at 850 nm). Suited for LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers, this low-cost cable provides four times more bandwidth than conventional 62.5 µm multimode fiber and performance rivaling that of singlemode cable.

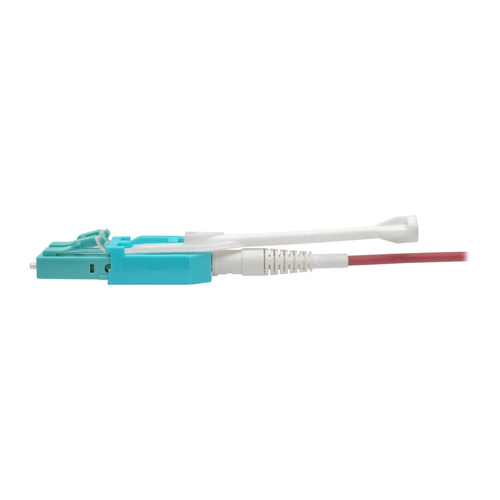

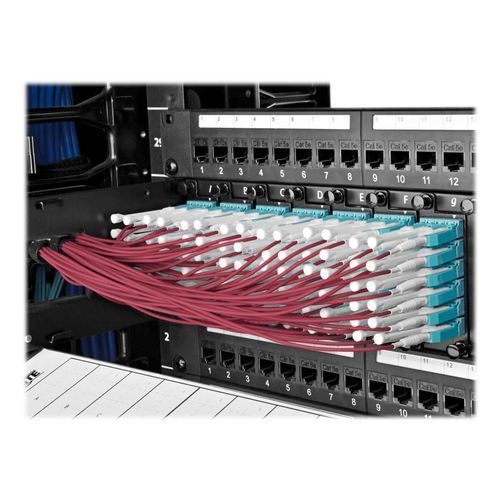

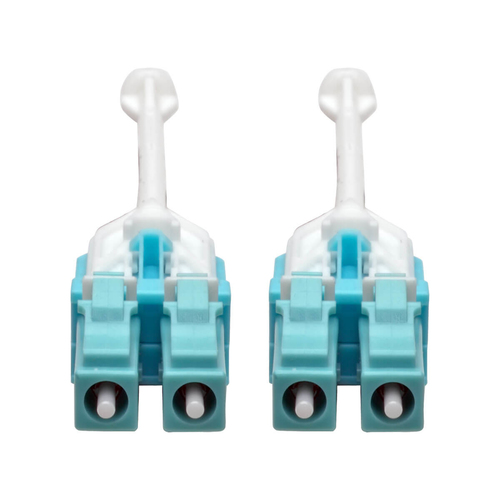

Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. Dual male LC connectors are widely compatible and thoroughly tested to meet stringent insertion loss standards. Premium-grade ceramic ferrules are designed specifically to handle applications of 10 Gb or higher.

Colored magenta for immediate identification as an OM4 cable, the laser-optimized multimode fiber (LOMMF) N821-02M-MG-T is backward compatible with existing 50/125 fiber and commonly used with vertical-cavity surface-emitting laser (VCSEL) and LED laser light sources.

The low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making this cable perfect for poorly ventilated areas. The slim, space-saving uniboot design is easy to manage through ceilings, walls and ducts. The sturdy plastic housing is built to last a long time.

ON ORDER

RRP Price €38.25

Specifications

Features

Cable length

2 m

Fibre optic type

OM4

Connector 1

2x LC

Connector 2

2x LC

Connector 1 gender

Male

Connector 2 gender

Male

Product colour

Magenta, Turquoise, White

Core diameter

50 µm

Cladding diameter

125 µm

Fiber mode structure

Multi-mode

Wavelengths supported

850 nm

Data transfer rate

10 Gbit/s

Jacket material

Low smoke zero halogen (LSZH)

Certificates

Compliance certificates

RoHS

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Storage temperature (T-T)

-20 - 60 °C

Packaging data

Package width

177.8 mm

Package depth

12.7 mm

Package height

228.6 mm

Package weight

200 g

Logistics data

Master (outer) case GTIN (EAN/UPC)

10037332201673

Country of origin

China

Master (outer) case width

149.9 mm

Harmonized System (HS) code

8544.70.0000

Master (outer) case length

101.6 mm

Master (outer) case height

185.4 mm

Master (outer) case gross weight

270 g

Products per master (outer) case

10 pc(s)

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.2 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

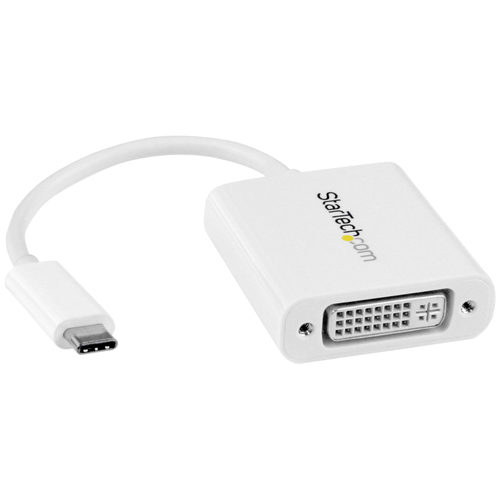

StarTech.com USB-C to DVI Adapter - White Cables & Adaptors

Connect your MacBook, Chromebook™ or laptop with USB-C to a DVI monitor or projectorThis USB-C™ to DVI adapter lets you output DVI video from a USB Type-C™ device such as your MacBook, Chromebook™, Dell XPS™ or 2018 iPad Pro. The adapter works with USB-C devices that pass a DisplayPort video signal and it’s also compatible with Thunderbolt™ 3 ports.Ultimate portabilityThis USB Type-C video adapter is highly portable, with a small footprint and a lightweight design. It’s the perfect accessory for your MacBook or Chromebook, fitting easily into your laptop bag or carrying case, which is great for BYOD (Bring Your Own Device) applications at the office.Crystal-clear picture qualityThe adapter supports video resolutions up to 1920x1200. You’ll be surprised at the picture quality the adapter provides, even when connected to a DVI monitor, projector or television. The adapter harnesses the video capabilities that are built into your USB Type-C connection, to deliver every detail in stunning resolution.Hassle-free connections with USB Type-CThis adapter lets you enjoy the versatility of your portable device’s USB Type-C port. USB-C is a reversible connector, so it doesn't matter which way you plug it in, the adapter will always work.The CDP2DVIW features a white housing that looks great with your MacBook, and is backed by a 3-year StarTech.com warranty and free lifetime technical support.Notes:• Your USB-C equipped device must support video to work with this adapter.• This adapter is not compatible for use with the Apple Cinema Display.The StarTech.com Advantage

€31.88

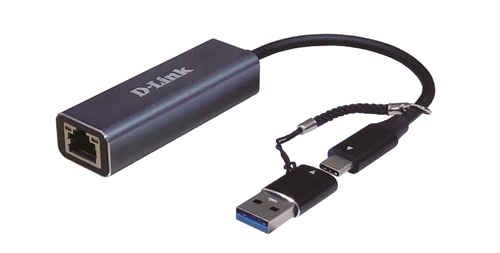

D-Link USB-C/USB to 2.5G Ethernet Adapter Cables & Adaptors

2.5 GbpsUpgrade your computer to 2.5 Gbps Ethernet.USB-C connectorIdeal for ultra-thin laptops with USB-C / Thunberbolt 3 connections and no ethernet port.Install in secondsSimply plug in the adapter and the built-in driver will be installed in seconds.Upgrade your laptop to 2.5 Gbps Ethernet.Instantly add multi-Gigabit connectivity to your laptop computer or desktop. Just plug the adapter into an available USB-C or USB Type-A port and you’re ready to connect to your router or switch at 2.5x the speed of a standard Gigabit connection.More than twice as fast as Gigabit Ethernet.Simply plug into your computer and enjoy fast 2.5 Gigabit Ethernet that allows you to transfer large files in no time, or make light work of backups to a server or network storage device. This reliable adaptor allows you to connect to multi-gigabit speeds instantly, perfect for network intensive workloads.Easy to install and use.Simply plug the adapter into an available USB-C port. The installation software is already preloaded on the adapter, so there’s no need for CDs or downloads. The portable compact design lets you easily slip the adapter into your pocket or laptop bag and take it with you anywhere.

€46.10

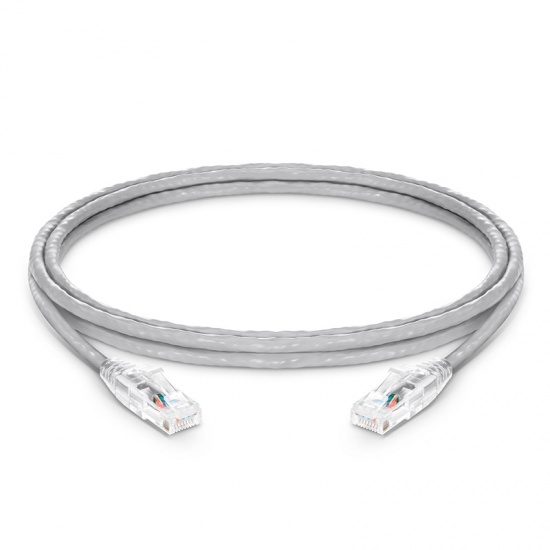

CAT5E 24AWG UTP CM PATCH CORD, SNAGLESS RJ45 GRAY 6FT 2M Cables & Adaptors

CAT5E 24AWG UTP CM PATCH CORD, SNAGLESS RJ45 GRAY 6FT 2M

€8.40

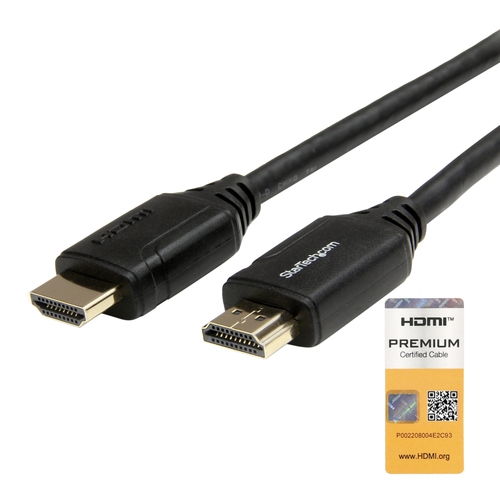

StarTech.com Premium High Speed HDMI Cable with Ethernet - 4K 60Hz - 3 m (10 ft.) Cables & Adaptors

Create feature-rich HDMI connections that are certified to be error-freeThis 3-meter High Speed HDMI® cable has been tested in accordance with the Premium HDMI Cable Certification Program. This ensures it’s able to deliver the newest technical features that the latest HDMI specifications have to offer, including enhanced resolutions and protection against EMI interference.Each of our certified Premium High Speed HDMI Cables is labeled with unique anti-counterfeiting authentication, so you can be confident that you have received a genuine certified cable.Experience the latest that HDMI has to offerThe cable supports resolutions of up to 4K@60Hz (3840x2160p) and bandwidths of up to 18Gbps. It also supports HDR (High Dynamic Range) for higher contrast ratio and vivid colors.With higher resolutions, increased speeds, and sharper images, you can expect an enhanced video experience. The cable is guaranteed to provide the very best HDMI capabilities available today. It’s the perfect cable for creating dependable home theater connections or providing lifelike digital signage.Plus, the cable also supports up to 32 uncompressed digital audio channels to provide crystal-clear sound. The cable is also backward compatible with previous HDMI specifications and will work with all of your existing HDMI devices.Provide superior connections with Premium HDMI certificationThe cable has undergone rigorous compliance testing and is certified by an HDMI Authorized Test Center. This gives you the assurance that the cable will deliver the high-bandwidth enabled features you need. An EMI test is also performed to ensure the cable minimizes interference with wireless signals.Watch dual video streams on a single displayThe cable delivers dual video streams so that you can view two videos simultaneously on the same display. Your display must support Multi-View in order to take advantage of dual video streams.The HDMM3MP is backed by StarTech.com's Lifetime Warranty.The StarTech.com Advantage

€15.76

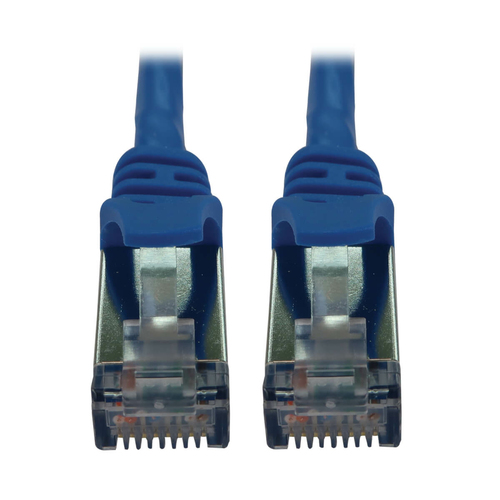

Tripp Lite N262-S25-BL Cat6a 10G Snagless Shielded Slim STP Ethernet Cable (RJ45 M/M), PoE, Blue, 25 ft. (7.6 m) Cables & Adaptors

Cat6a Cable Ideal for Your High-Density 10 Gigabit Ethernet NetworkThis Cat6a 10G Ethernet cable with RJ45 connectors is recommended for connecting network components like printers, computers, copiers, routers, servers, modems, hubs and switches in high-density data centers and network closets. Designed for fast transmission and excellent signal quality, the N262-S25-BL ensures peak performance throughout your LAN.Supports Power over Ethernet to Save You Money and Give You More Installation ChoicesBecause this Cat6a cable supports PoE, it can supply the power to operate compatible PoE devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.Special Slim Design for Better Airflow and Easier InstallationThis Cat6a STP patch cord is more than 38% smaller in diameter than standard Cat6a cable. This increases airflow in tight spaces, which helps keep your equipment cool and properly functioning. It also cuts down on clutter in crowded racks and patch panels, and makes the cable easier to install around corners and through cable management panels.Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform BetterThe N262-S25-BL shields disruptive EMI (electromagnetic interference) and RFI (radio frequency interference) line noise that can disturb your electronics and inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.Snagless RJ45 Male Connectors Add Extra ProtectionThe RJ45 connectors’ snagless design protects the locking tabs from being damaged or broken off during installation. The ends are shielded to minimize near-end crosstalk (NEXT) levels.Blue Jacket Helps Avoid Misidentification That Can Cause Costly DowntimeThe cable has a blue PVC jacket, which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected. Premium Construction for Superior PerformanceManufactured from 28 AWG copper wire, the four-pair stranded cable is rated for speeds up to 10 Gbps. Integral strain relief gives the shielded cable extra flexibility, reduces stress and helps the cable move freely without cracking or breaking loose from the connector.

€18.96

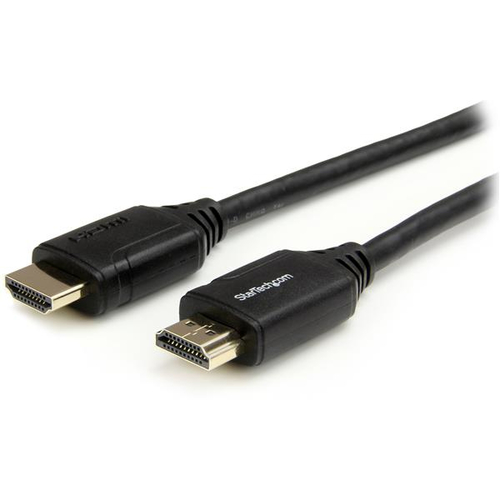

StarTech.com 3ft (1m) Premium Certified HDMI 2.0 Cable with Ethernet - High Speed Ultra HD 4K 60Hz HDMI Cable HDR10 - HDMI Cord (Male/Male Connectors) - For UHD Monitors, TVs, Displays Cables & Adaptors

Create feature-rich HDMI connections that are certified to be error-freeThis 1-meter High Speed HDMI® cable has been tested in accordance with the Premium HDMI Cable Certification Program. This ensures it’s able to deliver the newest technical features that the latest HDMI specifications have to offer, including enhanced resolutions and protection against EMI interference.Each of our certified Premium High Speed HDMI Cables is labeled with unique anti-counterfeiting authentication, so you can be confident that you have received a genuine certified cable.Experience the latest that HDMI has to offerThe cable supports resolutions of up to 4K@60Hz (3840x2160p) and bandwidths of up to 18Gbps. It also supports HDR (High Dynamic Range) for higher contrast ratio and vivid colors.With higher resolutions, increased speeds, and sharper images, you can expect an enhanced video experience. The cable is guaranteed to provide the very best HDMI capabilities available today. It’s the perfect cable for creating dependable home theater connections or providing lifelike digital signage.Plus, the cable also supports up to 32 uncompressed digital audio channels to provide crystal-clear sound. The cable is also backward compatible with previous HDMI specifications and will work with all of your existing HDMI devices.Provide superior connections with Premium HDMI certificationThe cable has undergone rigorous compliance testing and is certified by an HDMI Authorized Test Center. This gives you the assurance that the cable will deliver the high-bandwidth enabled features you need. An EMI test is also performed to ensure the cable minimizes interference with wireless signals.Watch dual video streams on a single displayThe cable delivers dual video streams so that you can view two videos simultaneously on the same display. Your display must support Multi-View in order to take advantage of dual video streams.The HDMM1MP is backed by StarTech.com's Lifetime Warranty.The StarTech.com Advantage

€8.23

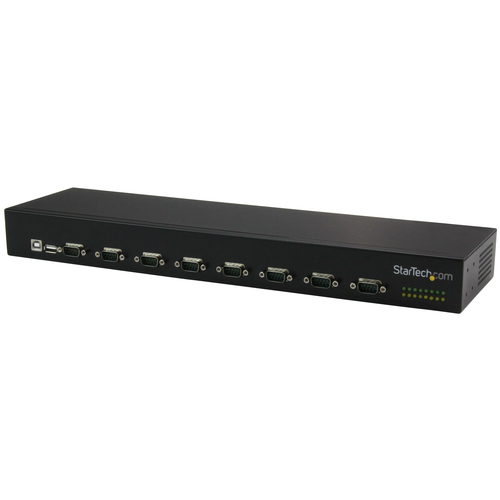

StarTech.com 8-Port USB-to-Serial Adapter Hub Cables & Adaptors

Convert a single USB port into eight serial ports, and connect multiple hubs together for a scalable solutionThis 8-port USB-to-serial adapter hub provides an easy and cost-efficient way to add RS232 serial capability to your industrial setting. It features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.A scalable solution for changing needsThis rack-mountable USB serial hub (FTDI) lets you add eight serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a more expensive serial hub.Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.Built-in convenienceThe hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.The hub features a reliable FTDI USB-to-serial chipset, which provides easy installation into a broad range of operating systems.Meets the demands of industrial environmentsWith its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.The ICUSB23208FD is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage

€318.76

StarTech.com 2m (6ft) DisplayPort 1.2 Cable - 4K x 2K Ultra HD VESA Certified DisplayPort Cable - DP to DP Cable for Monitor - DP Video/Display Cord - Latching DP Connectors Cables & Adaptors

Create high-resolution 4k x 2k connections with HBR2 support between your DisplayPort™-equipped devicesThe DISPL2M 2m DisplayPort™ 1.2 Cable with latches provides a secure, connection between your DisplayPort-equipped devices and is capable of providing higher performance than either HDMI® or dual link DVI.The DP cable supports high resolutions of up to 4k x 2k (4096 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.The DISPL2M is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.The StarTech.com Advantage

€7.12

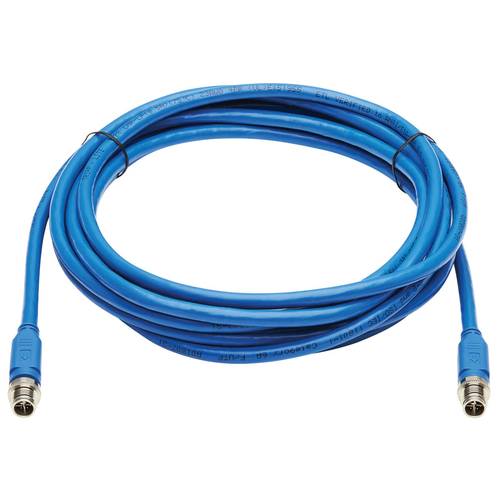

Tripp Lite NM12-6A1-05M-BL M12 X-Code Cat6a 10G F/UTP CMR-LP Shielded Ethernet Cable (M/M), IP68, PoE, Blue, 5 m (16.4 ft.) Cables & Adaptors
