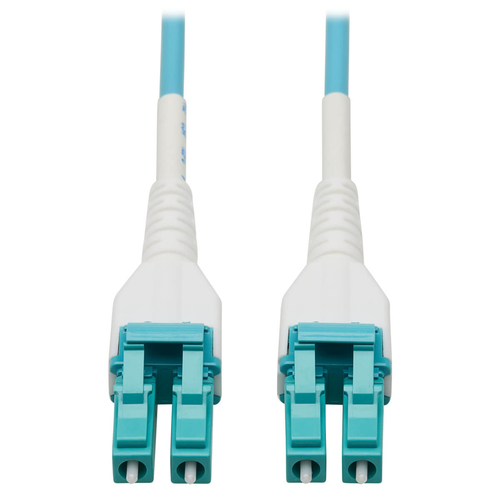

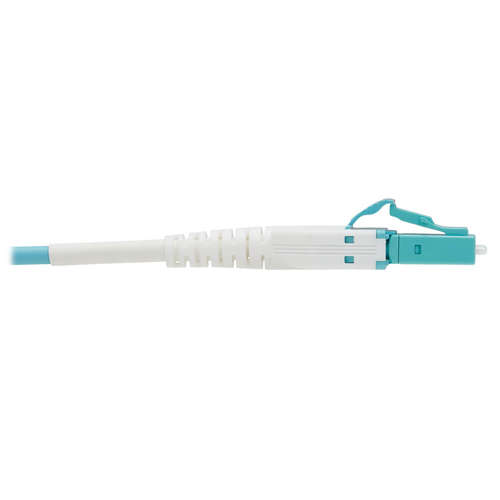

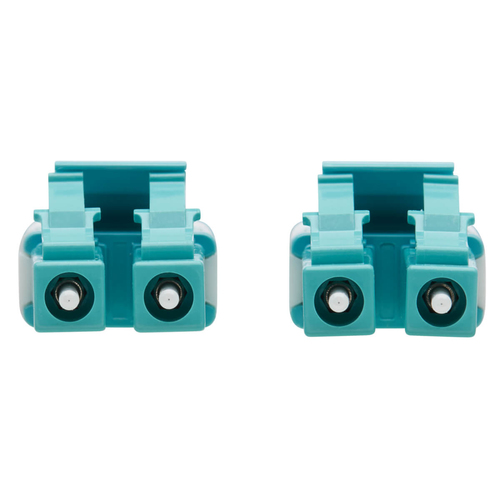

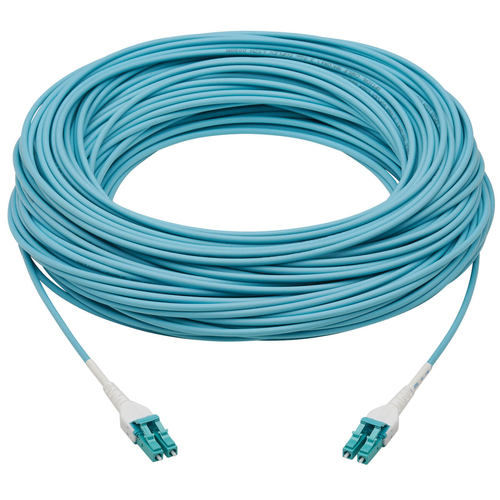

Tripp Lite N821-100M-AQ-AR 100G Duplex Multimode 50/125 OM4 Armored Fiber Optic Cable (LC/LC Duplex M/M), LSZH, Aqua, 100 m (328 ft.)

100 GbE Cable Supports Higher Bandwidths Needed for Data Networking
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This duplex multimode 50/125 OM4 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 850 nm. It is also backward compatible with 10 Gb, 25 Gb and 40 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb.

Armored Cable Provides Great Flexibility and Durability
The N821-100M-AQ-AR can be run anywhere and does not need to be in conduit. Built-in flexible stainless steel and robust Aramid yarn protect the optical fibers more effectively than standard fiber optic cables do. The rugged armored tubing allows optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas and moisture. This fiber cable provides low insertion loss and high return loss.

Aqua Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has an aqua-colored jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.

ON ORDER
SKU: N821-100M-AQ-AR
Manufacturer:
Eaton Eaton

RRP Price €394.33

Specifications

Features

Cable length
100 m
Fibre optic type
OM4
Connector 1
LC
Connector 2
LC
Connector 1 gender
Male
Connector 2 gender
Male
Connector polish type
PC
Cable type
OFNR
Product colour
Aqua colour
Full duplex
Yes
Core diameter
50 µm
Cladding diameter
125 µm
Fiber mode structure
Multi-mode
Wavelengths supported
850,1300 nm
Ethernet interface type
10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
Insertion loss
0.2 dB
Jacket material
Low smoke zero halogen (LSZH), Polyvinyl chloride (PVC)

Sustainability

Sustainability compliance
Yes

Certificates

Compliance certificates
RoHS, REACH

Operational conditions

Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-20 - 60 °C

Weight & dimensions

Cable diameter
3 mm
Bending radius
3 cm

Packaging data

Package width
266.7 mm
Package depth
12.7 mm
Package height
304.8 mm
Package weight
1.42 kg

Packaging content

Quantity per pack
1 pc(s)

Logistics data

Master (outer) case GTIN (EAN/UPC)
10037332264388
Country of origin
China
Master (outer) case width
375.9 mm
Harmonized System (HS) code
8544.70.0000
Master (outer) case length
309.9 mm
Master (outer) case height
152.4 mm
Master (outer) case gross weight
7.3 kg
Products per master (outer) case
5 pc(s)
