N823L-05M-MG - Cables & Adaptors by Eaton

40/100/400 GbE Cable Supports High Bandwidths for High-Density Data Networking

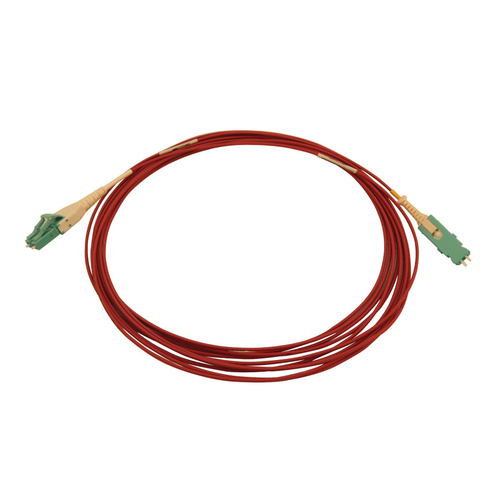

The N823L-05M-MG is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. As the amount of traffic in data networks grows, so does the need for next-generation devices and fiber cables to support much higher bandwidths in hyperscale, edge, enterprise and colocation data center interconnect (DCI) applications where density and speed are both very important. This OM4 cable is an ideal choice for 400 Gb Ethernet applications. It is also backward compatible with 40 Gb and 100 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.

Compact SN Connector Designed for the Latest OSFP/QSFP-DD Transceivers

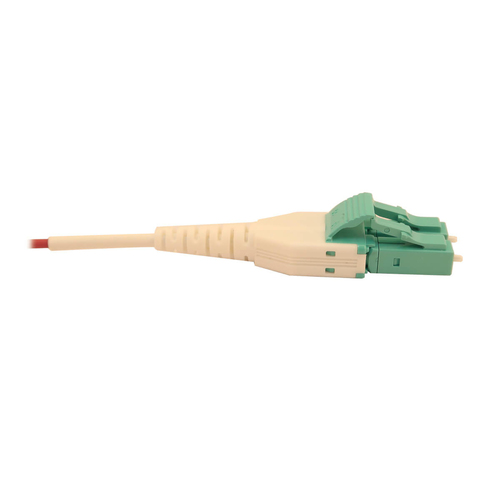

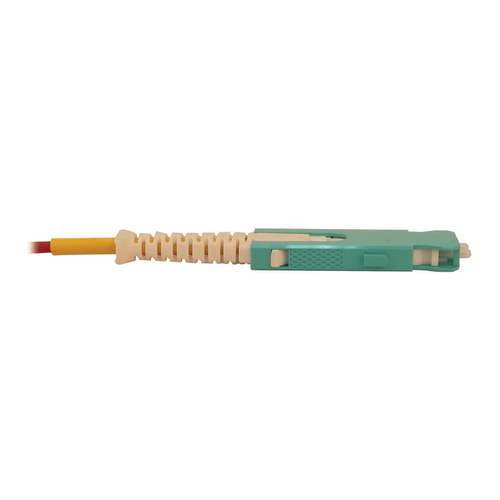

One cable end features an SN connector, which is four times smaller than the standard duplex LC connector on the other end. The SN connector provides individual and independent duplex fiber support for an OSFP/QSFP-DD transceiver. The push/pull boot encourages dense vertical stacking within a crowded patch panel or switch and makes the cable easy to install or remove with just one hand. The switchable SN/PC duplex end lets you make quick polarity changes in the field without tools or the need to re-terminate the connectors.

Magenta-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has a magenta jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.

ON ORDER

RRP Price €127.65

Specifications

Features

Cable length
5 m
Fibre optic type
OM4
Connector 1
SN
Connector 2
LC
Connector 1 gender
Male
Connector 2 gender
Male
Connector polish type
PC
Cable type
OFNR
Product colour
Aqua colour, Magenta, White
Full duplex
Yes
Core diameter
50 µm
Cladding diameter
125 µm
Fiber mode structure
Multi-mode
Wavelengths supported
850,1300 nm
Ethernet interface type
10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet, Gigabit Ethernet
Insertion loss
0.2 dB
Jacket material
Low smoke zero halogen (LSZH)

Sustainability

Sustainability compliance
Yes

Certificates

Compliance certificates
RoHS, CE, REACH
Certification
UL 1651

Operational conditions

Operating temperature (T-T)
-10 - 60 °C
Storage temperature (T-T)
-10 - 60 °C

Weight & dimensions

Cable diameter
1.6 mm

Packaging data

Package width
177.8 mm
Package depth
228.6 mm
Package height
6.4 mm
Package weight
30 g

Logistics data

Master (outer) case GTIN (EAN/UPC)
10037332274653
Country of origin
China
Master (outer) case width
147.3 mm
Harmonized System (HS) code
8544.70.0000
Master (outer) case length
188 mm
Master (outer) case height
99.1 mm
Master (outer) case gross weight
290 g
Products per master (outer) case
10 pc(s)
