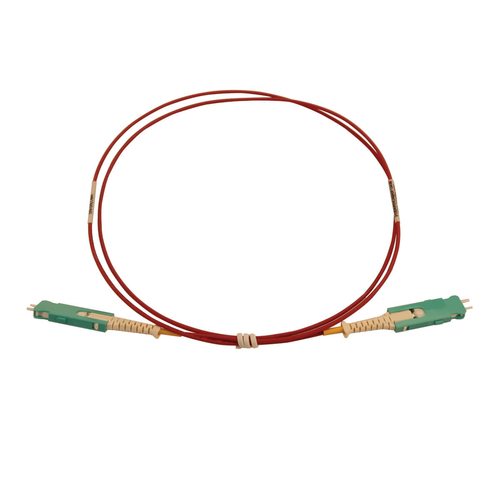

N823S-01M-MG - Cables & Adaptors by Eaton

400 GbE Cable Supports High Bandwidths for High-Density Data Networking
The N823S-01M-MG is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. As the amount of traffic in data networks grows, so does the need for next-generation devices and fiber cables to support much higher bandwidths in hyperscale, edge, enterprise and colocation data center interconnect (DCI) applications where density and speed are both very important.

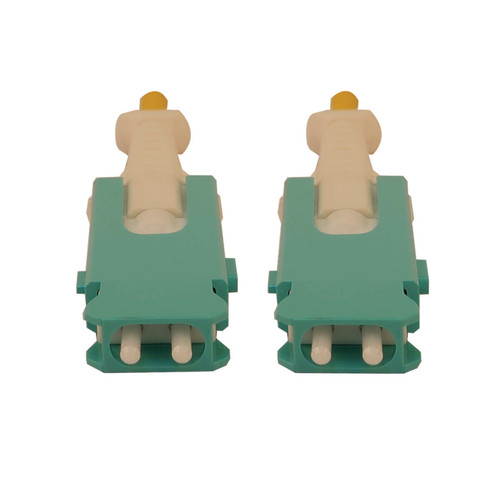

Compact SN Connectors Designed for the Latest OSFP/QSFP-DD Transceivers
This 400 Gb cable features duplex SN connectors on both ends. SN connectors are four times smaller than standard LC connectors and provide individual and independent duplex fiber support for OSFP/QSFP-DD transceivers. Push/pull boots encourage dense vertical stacking within a crowded patch panel or switch and make the cable easy to install or remove with just one hand. The switchable SN/PC ends let you make quick polarity changes in the field without tools or the need to re-terminate the connectors.

Magenta-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has a magenta jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.

ON ORDER

RRP Price €169.37

Specifications

Features

Cable length
1.01 m
Fibre optic type
OM4
Connector 1
SN
Connector 2
SN
Connector 1 gender
Male
Connector 2 gender
Male
Connector polish type
PC
Cable type
OFNR
Product colour
Aqua colour, Magenta, White
Full duplex
Yes
Core diameter
50 µm
Cladding diameter
125 µm
Fiber mode structure
Multi-mode
Wavelengths supported
850,1300 nm
Ethernet interface type
400 Gigabit Ethernet
Insertion loss
0.2 dB
Jacket material
Low smoke zero halogen (LSZH)

Sustainability

Sustainability compliance
Yes

Certificates

Compliance certificates
RoHS, CE, REACH
Certification
UL 1651

Operational conditions

Operating temperature (T-T)
-10 - 60 °C
Storage temperature (T-T)
-10 - 60 °C

Weight & dimensions

Cable diameter
1.6 mm

Packaging data

Package width
177.8 mm
Package depth
12.7 mm
Package height
228.6 mm
Package weight
10 g

Logistics data

Master (outer) case GTIN (EAN/UPC)
10037332274615
Country of origin
China
Master (outer) case width
185.4 mm
Harmonized System (HS) code
8544.70.0000
Master (outer) case length
149.9 mm
Master (outer) case height
101.6 mm
Master (outer) case gross weight
180 g
Products per master (outer) case
10 pc(s)
