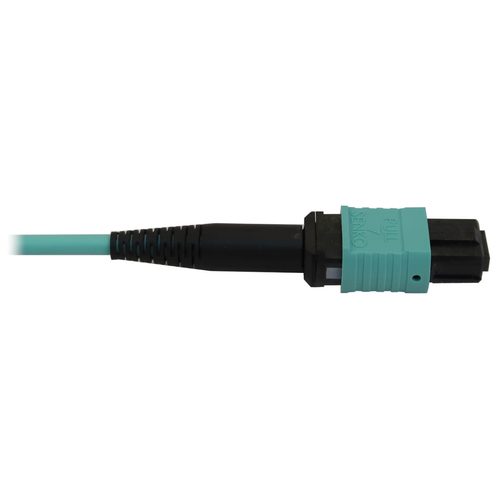

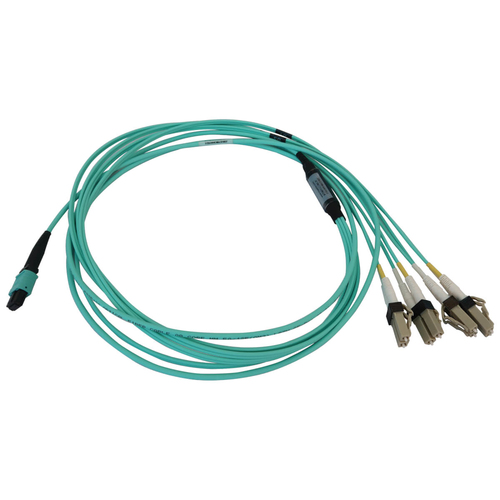

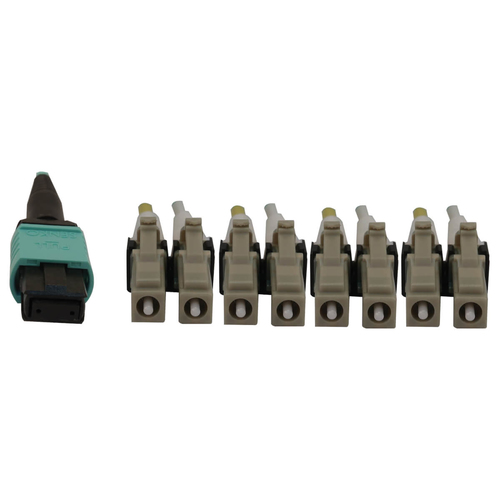

Tripp Lite N844X-02M-8L-P 40/100/400G Multimode 50/125 OM3 Fiber Optic Cable (12F MTP/MPO-PC to 4x Duplex LC/PC F/M), LSZH, Aqua, 2 m (6.6 ft.)

Tripp Lite N844X-02M-8L-P 40/100/400G Multimode 50/125 OM3 Fiber Optic Cable (12F MTP/MPO-PC to 4x Duplex LC/PC F/M), LSZH, Aqua, 2 m (6.6 ft.)

Name: Tripp Lite N844X-02M-8L-P 40/100/400G Multimode 50/125 OM3 Fiber Optic Cable (12F MTP/MPO-PC to 4x Duplex LC/PC F/M), LSZH, Aqua, 2 m (6.6 ft.)
Brand: Eaton
SKU: N844X-02M-8L-P
Price: 164.30 EUR
Availability: OutOfStock

40/100/400 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking
The N844X-02M-8L-P is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. It is designed to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM3 cable is an ideal choice for 100 Gb Ethernet applications up to 100 meters (328 feet) at 850 nm. It is also backward compatible with 10 Gb and 25 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb or 400 Gb.

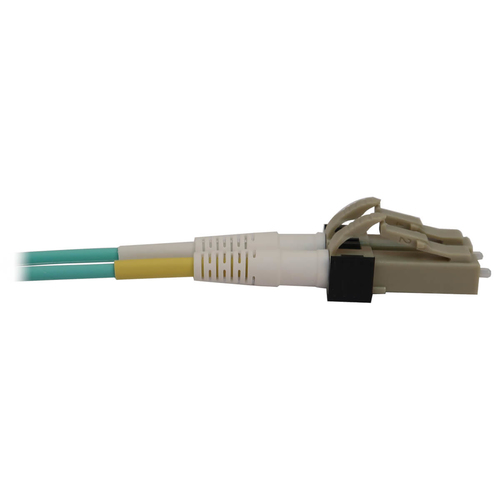

Switchable LC Connectors Allow Easy Polarity Conversions
The switchable LC/PC duplex ends let you easily switch the fiber polarity without tools or the need to re-terminate the connectors. This cable lets you extend the length of your connection and eliminates the need for longer fan-out cables or individual long duplex cable runs.

Aqua-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM3-rated cable has an aqua jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.

ON ORDER

SKU: N844X-02M-8L-P

Manufacturer:

Eaton

RRP Price €164.30

Specifications

Features

Cable length

2 m

Fibre optic type

OM3

Connector 1

MPO/MTP

Connector 2

4x LC

Connector 1 gender

Female

Connector 2 gender

Male

Connector polish type

Cable type

OFNR

Product colour

Aqua colour, Beige, Black

Core diameter

50 µm

Cladding diameter

125 µm

Fiber mode structure

Multi-mode

Wavelengths supported

850,1300 nm

Ethernet interface type

40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet

Data transfer rate

400 Gbit/s

Insertion loss

0.35 dB

Jacket material

Low smoke zero halogen (LSZH)

Sustainability

Sustainability compliance

Yes

Sustainability certificates

UL ECOLOGO

Certificates

Compliance certificates

RoHS, CE, REACH

Operational conditions

Operating temperature (T-T)

-10 - 60 °C

Storage temperature (T-T)

-10 - 60 °C

Weight & dimensions

Cable diameter

3 mm

Bending radius

2 cm

Packaging data

Package width

177.8 mm

Package depth

12.7 mm

Package height

228.6 mm

Package weight

70 g

Packaging content

Quantity per pack

1 pc(s)

Logistics data

Master (outer) case GTIN (EAN/UPC)

10037332272925

Country of origin

China

Master (outer) case width

185.4 mm

Harmonized System (HS) code

8544.70.0000

Master (outer) case length

149.9 mm

Master (outer) case height

101.6 mm

Master (outer) case gross weight

770 g

Products per master (outer) case

10 pc(s)

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.07 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
