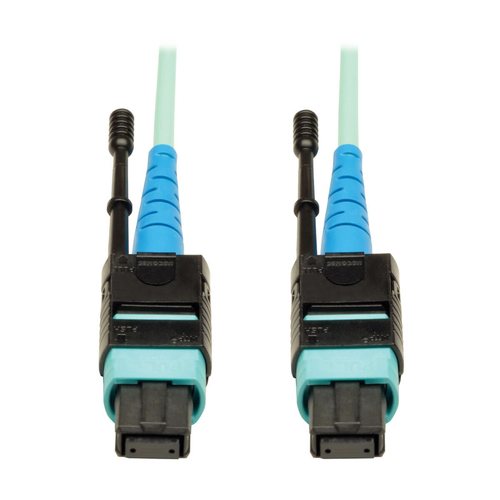

Tripp Lite N846-03M-24-P MTP/MPO Patch Cable with Push/Pull Tab Connectors, 100GBASE-SR10, CXP, 24 Fiber, 100Gb OM3 Plenum-rated - Aqua, 3M (10 ft.)

Tripp Lite N846-03M-24-P MTP/MPO Patch Cable with Push/Pull Tab Connectors, 100GBASE-SR10, CXP, 24 Fiber, 100Gb OM3 Plenum-rated - Aqua, 3M (10 ft.)

Name: Tripp Lite N846-03M-24-P MTP/MPO Patch Cable with Push/Pull Tab Connectors, 100GBASE-SR10, CXP, 24 Fiber, 100Gb OM3 Plenum-rated - Aqua, 3M (10 ft.)
Brand: Eaton
SKU: N846-03M-24-P
Price: 392.20 EUR
Availability: OutOfStock

MTP / MPO Push-Pull Connectors for Quick Fiber Optic connections
Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand
24 times the density of SC style connectors
No need for long fan-out cables or individual long duplex cable runs
High-density design cuts down on installation costs
50/125 OM3 Rated Multimode Fiber, 850nm
Plenum rated jacket
Unique cable ID label for Quality Control and Traceability
Each cable 100% tested for low insertion loss and back reflection
Test data supplied with each cable
Custom lengths available

ON ORDER

SKU: N846-03M-24-P

Manufacturer:

Eaton

RRP Price €392.20

Specifications

Features

Cable length

3 m

Fibre optic type

OM3

Connector 1

MTP

Connector 2

MTP

Connector 1 gender

Male

Connector 2 gender

Male

Core diameter

50 µm

Cladding diameter

125 µm

Fiber mode structure

Multi-mode

Data transfer rate

100 Gbit/s

Packaging data

Package width

177.8 mm

Package depth

12.7 mm

Package height

228.6 mm

Package weight

40 g

Logistics data

Master (outer) case GTIN (EAN/UPC)

10037332186758

Country of origin

China

Master (outer) case width

149.9 mm

Harmonized System (HS) code

8544.70.0000

Master (outer) case length

185.4 mm

Master (outer) case height

101.6 mm

Master (outer) case gross weight

440 g

Products per master (outer) case

10 pc(s)

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.04 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
