N846B-15M-24-P - Cables & Adaptors by Eaton

40/100/400 GbE Cable Supports Higher Bandwidths for High-Density Data Networking

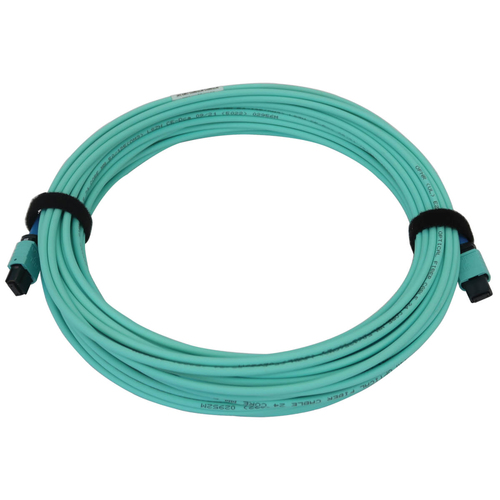

The N846B-15M-24-P is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. It is designed to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM3 cable is an ideal choice for 400 Gb Ethernet applications up to 100 meters (328 feet) at 850 nm. It is also backward compatible with 10 Gb, 25 Gb, 40 Gb and 100 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.

100% Tested for Low Insertion Loss and Attenuation Loss

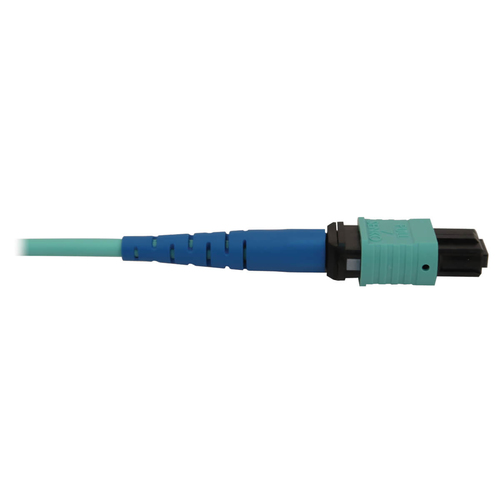

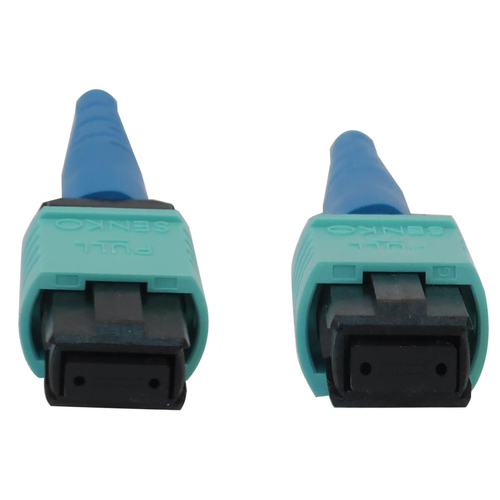

The cable is tested for low insertion loss on the factory-terminated 24-fiber MTP/MPO connectors and attenuation loss that meets or exceeds current standards. The connectors’ slim boots allow easy one-handed installation and removal of the cable.

Aqua-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM3-rated cable has an aqua jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.

ON ORDER

RRP Price €375.37

Specifications

Features

Cable length
15 m
Fibre optic type
OM3
Connector 1
MPO/MTP
Connector 2
MPO/MTP
Connector 1 gender
Female
Connector 2 gender
Female
Connector polish type
PC
Cable type
OFNR
Product colour
Aqua colour, Black, Blue
Core diameter
50 µm
Cladding diameter
125 µm
Fiber mode structure
Multi-mode
Wavelengths supported
850,1300 nm
Ethernet interface type
40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet
Data transfer rate
400 Gbit/s
Insertion loss
0.35 dB
Jacket material
Low smoke zero halogen (LSZH)

Sustainability

Sustainability compliance
Yes
Sustainability certificates
UL ECOLOGO

Certificates

Compliance certificates
RoHS, CE, REACH

Operational conditions

Operating temperature (T-T)
-10 - 60 °C
Storage temperature (T-T)
-10 - 60 °C

Weight & dimensions

Cable diameter
3 mm
Bending radius
2 cm

Packaging data

Package width
266.7 mm
Package depth
12.7 mm
Package height
304.8 mm
Package weight
150 g

Packaging content

Quantity per pack
1 pc(s)

Logistics data

Master (outer) case GTIN (EAN/UPC)
10037332271720
Country of origin
China
Master (outer) case width
375.9 mm
Harmonized System (HS) code
8544.70.0000
Master (outer) case length
154.9 mm
Master (outer) case height
149.9 mm
Master (outer) case gross weight
1.56 kg
Products per master (outer) case
10 pc(s)
