Home > Computer Systems > Shuttle > NA10H7

NA10H7 - Computer Systems by Shuttle

Affordable AI-PC in Nano Format Powered by AMD Ryzen™ Zen 4 APUThe Shuttle XPC Barebone NA10H7, part of the XPC nano family, is powered by the AMD Ryzen™ 7-8845HS APU, featuring the cutting-edge Zen 4 microarchitecture. With 8 cores, 16 threads, and AMD Radeon™ 780M graphics, it delivers exceptional performance and is primed for AI-readiness.The integrated Neural Processing Unit (NPU) achieves 16 TOPS of AI performance, while the combined NPU, CPU, and GPU offer a total of 39 TOPS, enabling demanding AI workloads. Supporting up to 64 GB of DDR5 memory, the NA10H7 also boasts a comprehensive array of I/O options, including four UHD graphics ports and two USB4 ports.Designed as a cost-effective, high-performance solution for generative AI tasks, the NA10H7 excels in a variety of applications, such as content creation, gaming, entertainment, office work, commerce, and AIoT implementations. With its compact nano chassis and advanced connectivity features, it sets a new standard for affordable AI-PCs.

7 IN STOCK

RRP Price €552.40

  loading...
Register for Discounts

Specifications

Processor

Processor manufacturer
AMD
Processor family
AMD Ryzen™ 7
Processor generation
AMD Ryzen 8000 Series
Processor model
8845HS
Processor cores
8
Processor threads
16
Processor boost frequency
5.1 GHz
Processor frequency
3.8 GHz
Built-in processor
Yes
L2 cache
8 MB
L3 cache
16 MB
Thermal Design Power (TDP)
45 W

Memory

Memory slots type
SO-DIMM
Number of memory slots
2
Maximum internal memory
64 GB
Supported memory clock speeds
5600 MHz
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Memory voltage
1.1 V
Non-ECC
Yes

Storage

Supported storage drive types
SSD
Storage drive sizes supported
M.2
SSD form factor
M.2
Storage drive interface
PCI Express
NVMe
Yes
Card reader integrated
Yes
Compatible memory cards
SD

Graphics

On-board graphics card
Yes
Graphics card family
AMD
On-board graphics card model
AMD Radeon 780M
Number of displays supported
4

Audio

Built-in speaker(s)
No

Network

Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Realtek RTL8125B

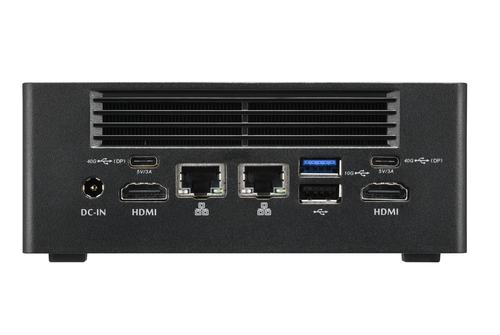

Ports & interfaces

USB 2.0 ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
5
USB4 Gen 2x2 ports quantity
2
HDMI ports quantity
2
HDMI version
2.0
Combo headphone/mic port
Yes
Ethernet LAN (RJ-45) ports
2

Design

Chassis type
1L sized PC
Product colour
Black
Cooling type
Active
LED indicators
Power
Housing material
Plastic
Cable lock slot
Yes
Cable lock slot type
Kensington
VESA mounting
Yes
Panel mounting interface
75 x 75,100 x 100 mm
Product type
Mini PC barebone

Performance

BIOS type
UEFI AMI
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Audio chip
Realtek ALC269

Technical details

Compliance certificates
BSMI, CB, CE, Federal Communications Commission (FCC), RoHS, cTUVus

Logistics data

Harmonized System (HS) code
84714900

Software

Windows operating systems supported
Windows 11 x64
Linux operating systems supported
Yes

Sustainability

Sustainability certificates
ENERGY STAR, ErP

Power

Power supply type
External AC adapter
Power supply
120 W
Number of power supply units
1
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
AC adapter output voltage
19 V
AC adapter output current
6.32 A

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%

Weight & dimensions

Width
132 mm
Depth
143 mm
Height
55 mm
Weight
800 g
Package weight
1.7 kg

Packaging content

Power cord included
Yes
AC adapter included
Yes
Quick start guide
Yes
NA10H7 - Computer Systems by Shuttle
