NC4010XA - Computer Systems by Shuttle

Name: Shuttle Nano PC System NC4010XA, Intel Celeron 7305, 4GB RAM, 128GB M.2 SSD, 1x HDMI, 1x DP,1xUSB-C/DP, 6x USB3.2, 1x 2.5" bay, 2x M.2, 1x LAN, incl....
Brand: Shuttle
SKU: NC4010XA
Price: 350.18 EUR
Availability: OutOfStock

MANY PORTS AND HIGH PERFORMANCE IN NANO-FORMAT

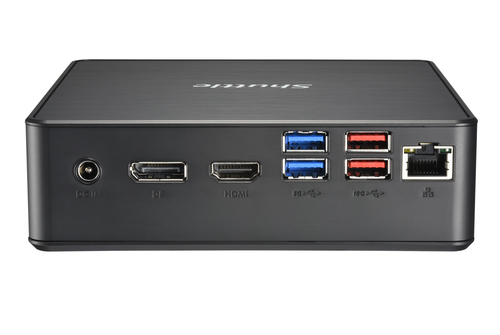

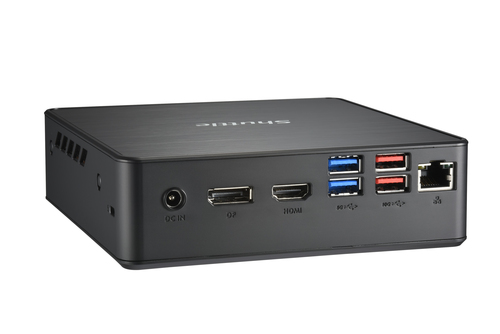

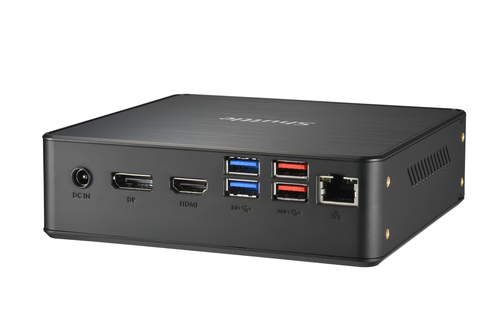

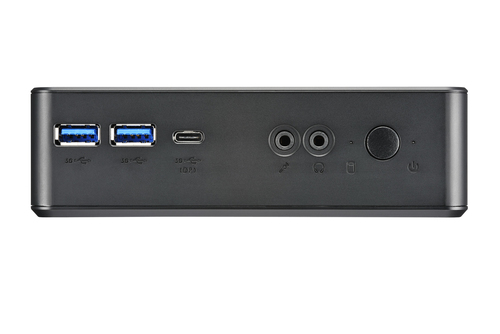

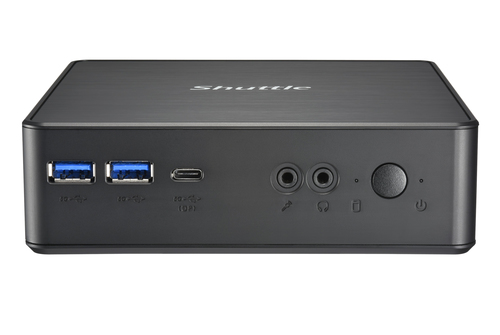

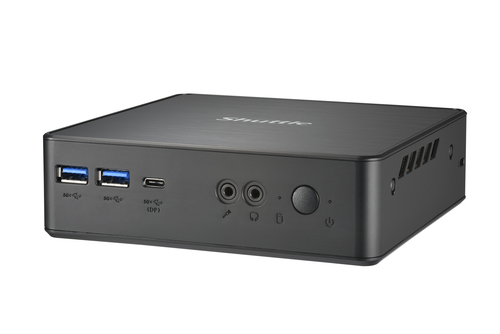

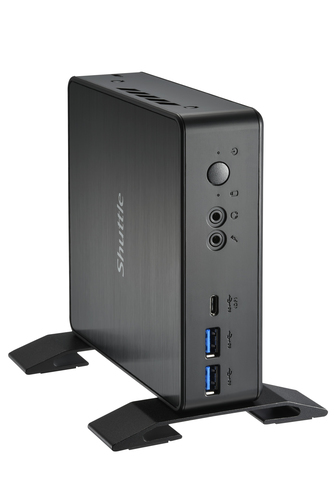

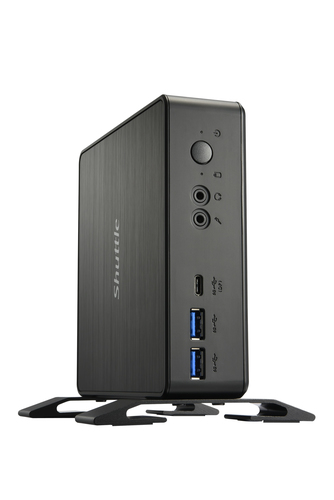

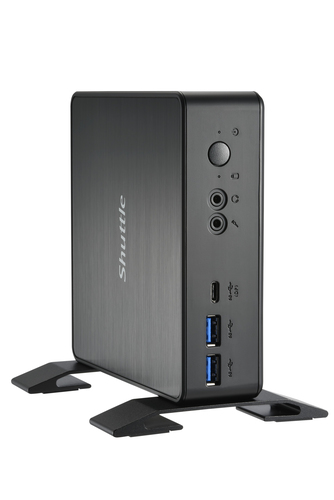

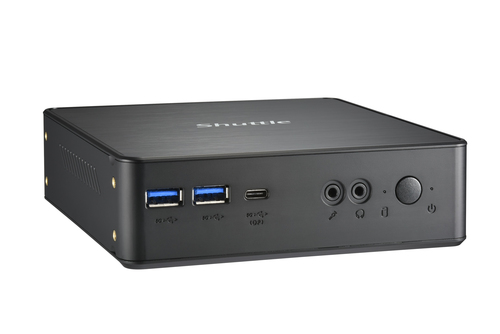

NC4010XA is a fully configured PC system in Nano-size without operating system. It comes a with powerful and efficient 12th generation Intel ULV processor. Despite the small size with only 850 ml volume, it offers enormous connection variety and expansion options. Thus, up to three UHD displays (4K/60Hz) and up to seven USB 3.2 devices can be connected. This PC is ideal for Digital Signage, POS, control, office or even multimedia.

ON ORDER

RRP Price €350.18

Specifications

Processor

Processor manufacturer

Intel

Processor family

Intel® Celeron®

Processor model

7305

Processor cores

Processor threads

Performance cores

Efficient cores

Processor cache

8 MB

Processor cache type

Smart Cache

Number of processors installed

Processor base power

15 W

Maximum turbo power

55 W

Memory

Internal memory

4 GB

Maximum internal memory

64 GB

Internal memory type

DDR4-SDRAM

Memory layout (slots x size)

1 x 4 GB

Memory slots

2x SO-DIMM

Memory clock speed

3200 MHz

Non-ECC

Yes

Storage

Total storage capacity

128 GB

Storage media

SSD

Optical drive type

Number of storage drives installed

Total SSDs capacity

128 GB

Number of SSDs installed

SSD capacity

128 GB

SSD interface

PCI Express

NVMe

Yes

SSD form factor

M.2

Graphics

Discrete graphics card

On-board graphics card

Yes

Discrete graphics card model

Not available

On-board GPU manufacturer

Intel

On-board graphics card family

Intel® UHD Graphics

On-board graphics card model

Intel® UHD Graphics

Network

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

LAN controller

Intel® I219

Wi-Fi

Yes

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Wi-Fi standards

Wi-Fi 6 (802.11ax)

WLAN controller manufacturer

Intel

WLAN controller model

Intel Wi-Fi 6 AX200

Antenna type

2x2

Bluetooth

Yes

Bluetooth version

5.2

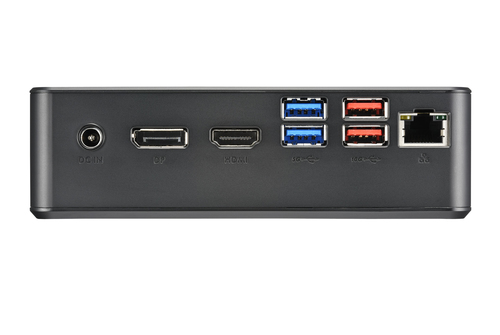

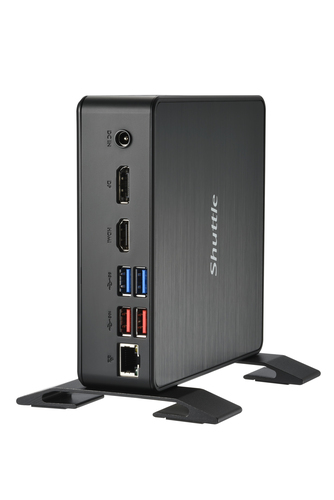

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

HDMI ports quantity

HDMI version

2.0b

DisplayPorts quantity

DisplayPort version

1.4a

Ethernet LAN (RJ-45) ports

Microphone in

Yes

Headphone outputs

DC-in jack

Yes

Design

Chassis type

Mini PC

Volume

0.847 L

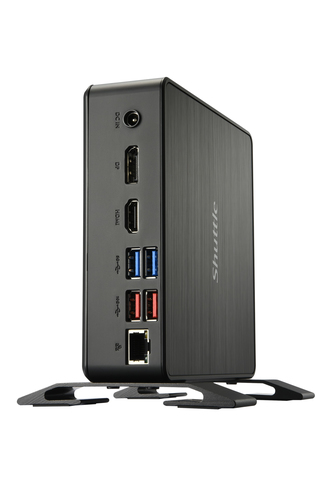

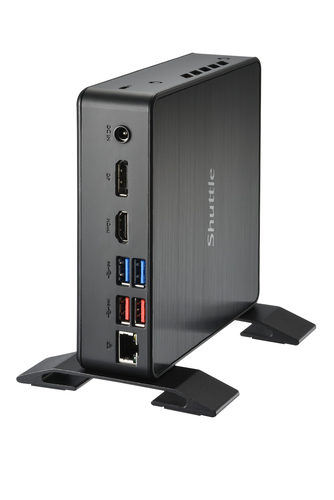

Placement supported

Horizontal/Vertical

VESA mounting

Yes

Cable lock slot

Yes

Cable lock slot type

Kensington

Product colour

Black

Housing material

Plastic

Performance

Market positioning

Business

Motherboard chipset

Intel SoC

BIOS type

UEFI AMI

Trusted Platform Module (TPM)

Yes

Product type

Mini PC

Software

Operating system installed

Drivers included

Yes

Power

Power supply

65 W

Power supply input voltage

100 - 240 V

Power supply input frequency

50 - 60 Hz

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Certificates

Compliance certificates

BSMI, CE, Federal Communications Commission (FCC), RoHS, UKCA, cTUVus

Sustainability

Sustainability compliance

Yes

Sustainability certificates

ENERGY STAR, ErP

Weight & dimensions

Width

42 mm

Depth

142 mm

Height

142 mm

Weight

400 g

Package weight

1.2 kg

Packaging content

Cables included

Power cable length

1.7 m

VESA mount included

Yes

Screws included

Yes

Logistics data

Harmonized System (HS) code

84714900

Display

Display included

Description

Manufacturer

Shuttle

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.4 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
