Home > Computer Systems > Shuttle > NC40U3

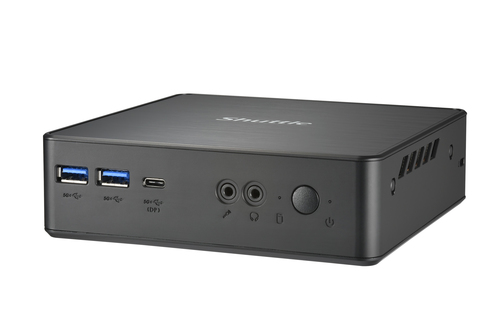

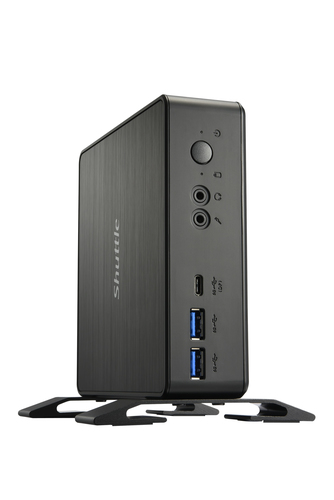

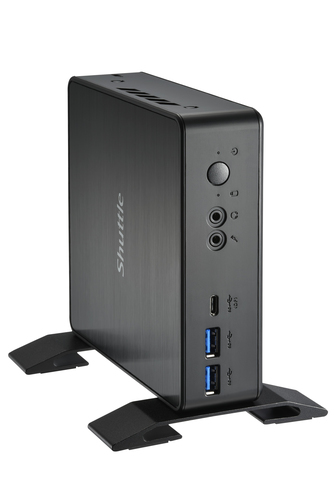

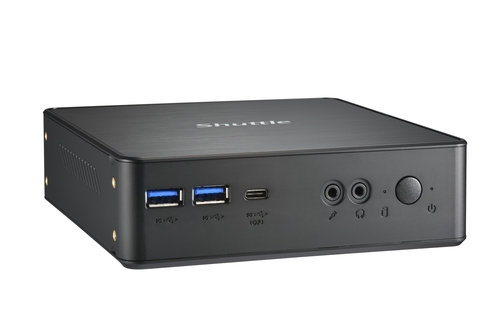

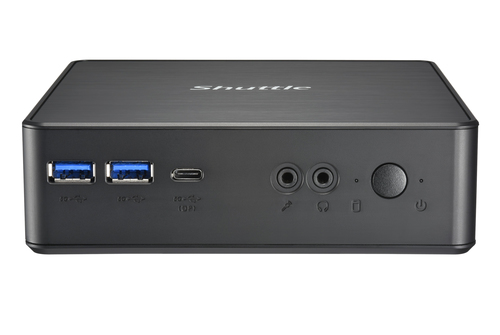

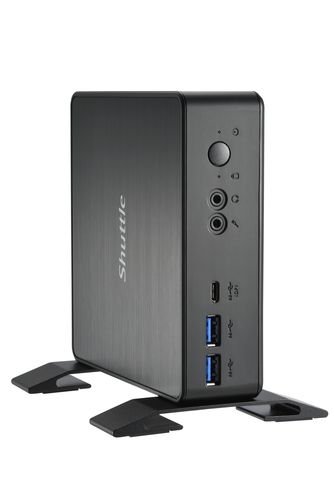

NC40U3 - Computer Systems by Shuttle

The NC40U series comes with powerful and efficient 12th generation Intel Core processors, codenamed "Alder Lake-U". Despite the nano format with only 850 ml volume, it offers enormous connection variety and expansion options. Thus, up to three UHD displays (4K/60Hz) and up to seven USB 3.2 devices can be connected, and two NVMe/SSD cards in M.2-2280 format as well as one 2.5" hard drive (up to 15 mm thickness) can be installed. The NC40U series is ideal for Digital Signage, POS, control, office or even multimedia.

5 IN STOCK

RRP Price €326.71

  loading...
Register for Discounts

Specifications

Processor

Processor manufacturer
Intel
Processor family
Intel® Core™ i3
Processor generation
12th gen Intel® Core™ i3
Processor model
i3-1215U
Processor cores
6
Processor threads
8
Performance cores
2
Efficient cores
4
Built-in processor
Yes
Processor cache
10 MB
CPU configuration (max)
1

Memory

Memory slots type
SO-DIMM
Number of memory slots
2
Maximum internal memory
64 GB
Supported memory clock speeds
3200 MHz
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Memory voltage
1.2 V
ECC
No
Non-ECC
Yes

Storage

Supported storage drive types
HDD & SSD
Storage drive sizes supported
2.5,M.2
Storage drive interface
PCI Express, Serial ATA III
NVMe
Yes
Number of storage drives supported
3
Card reader integrated
No

Graphics

On-board graphics card
Yes
Graphics card family
Intel
On-board graphics card model
Intel® UHD Graphics
Maximum resolution
7680 x 4320 pixels

Audio

Built-in speaker(s)
No

Network

Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel® I219

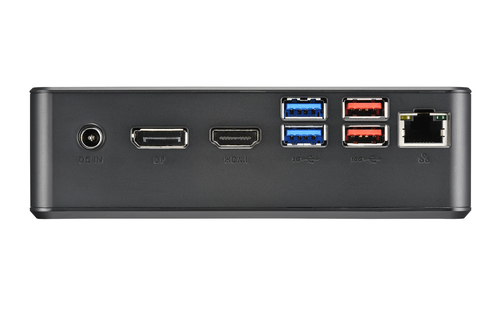

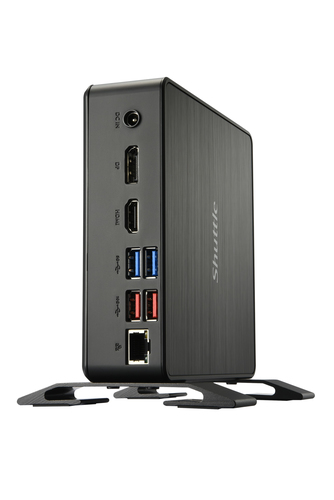

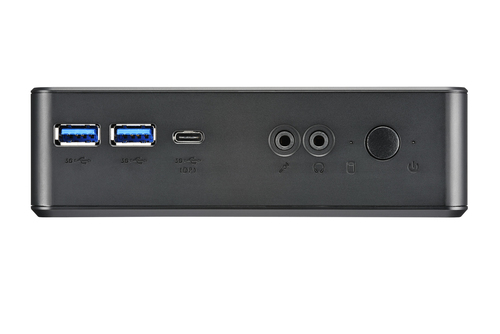

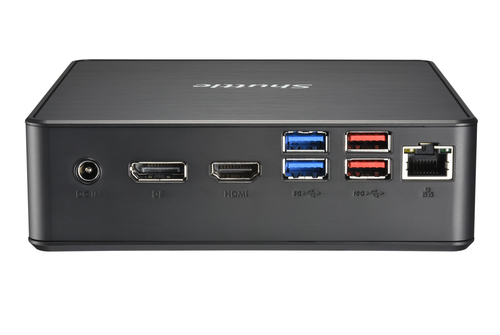

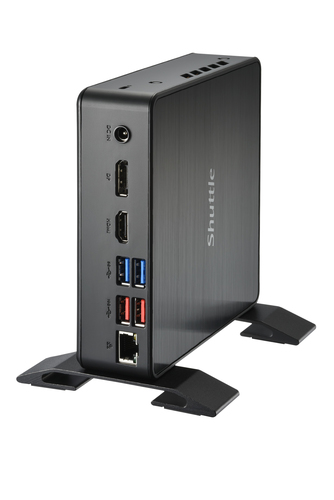

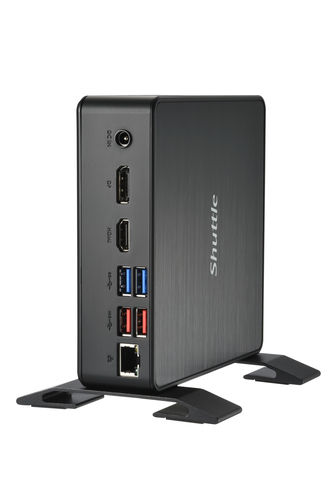

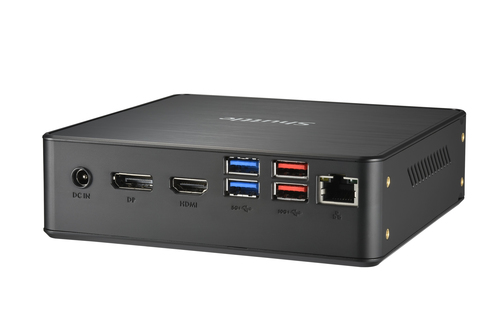

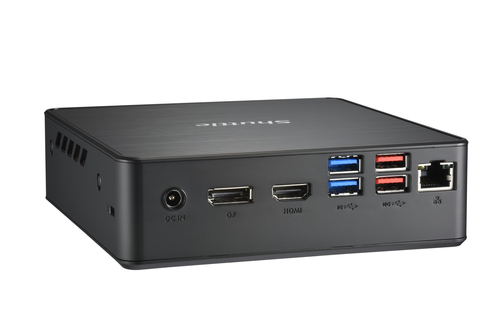

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
HDMI ports quantity
1
HDMI version
2.0b
DisplayPorts quantity
1
DisplayPort version
1.4a
Microphone in
Yes
Headphone outputs
1
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes

Expansion slots

PCI Express slots version
3.0, 4.0
Number of M.2 (M) slots
2

Design

Chassis type
0.84L sized PC
Product colour
Black
Cooling type
Active
On/off switch
Yes
LED indicators
HDD, Power
Housing material
Plastic
Cable lock slot
Yes
Cable lock slot type
Kensington
VESA mounting
Yes
Panel mounting interface
75 x 75,100 x 100 mm
Product type
Mini PC barebone
Safety
CB IEC60950/62368, cTUVus (UL 62368)

Performance

Motherboard chipset
Intel SoC
Number of processors supported
1
BIOS type
AMI
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0

Technical details

Compliance certificates
BSMI, CE, Federal Communications Commission (FCC), RoHS, UKCA

Logistics data

Harmonized System (HS) code
84733080

Software

Windows operating systems supported
Windows 10, Windows 11
Linux operating systems supported
Yes
Operating system installed
No

Sustainability

Sustainability compliance
Yes
Sustainability certificates
ENERGY STAR, ErP

Power

Power supply type
External AC adapter
Power supply
65 W
Number of power supply units
1
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
AC adapter output voltage
19 V
AC adapter output current
3.42 A

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%

Weight & dimensions

Width
142 mm
Depth
142 mm
Height
42 mm
Weight
400 g
Package weight
1.2 kg

Packaging content

Power cord included
Yes
AC adapter included
Yes
Quick start guide
Yes
Drivers included
Yes
NC40U3 - Computer Systems by Shuttle

Description

Manufacturer

Shuttle

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

5

WH3 (5–7 Days)

N/A

Weight

0.4 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
