Eaton P036-02M-EU power cable Black 2 m IEC C20 IEC C19

Connects high-output devices with C19/C20 power connectors, including routers and blade servers.

Power Cord Connects High-Output Data Center Equipment to Reliable AC Power
This VDE-compliant power cable connects a router, blade server or other high-output network device with a C20 power inlet to a PDU, UPS system or surge protector with C19 outlets. It can also extend an existing power connection up to two meters (6.6 feet). The P036-02M-EU features an IEC-320-C20 end for connecting to an AC power source or cord and an IEC-320-C19 end for connecting to a blade server chassis or other high-output device.

H05VV-F Jacket Is Fully VDE-Compatible for European Applications
The 0.75mm2 enhanced PVC jacket complies with VDE, CE and UKCA standards for data centers, racks, workstations and other IT applications in Europe.

ON ORDER

RRP Price €14.45

Specifications

Features

Product colour
Black
Connector 1 gender
Male
Connector 2 gender
Female
Cable length
2 m

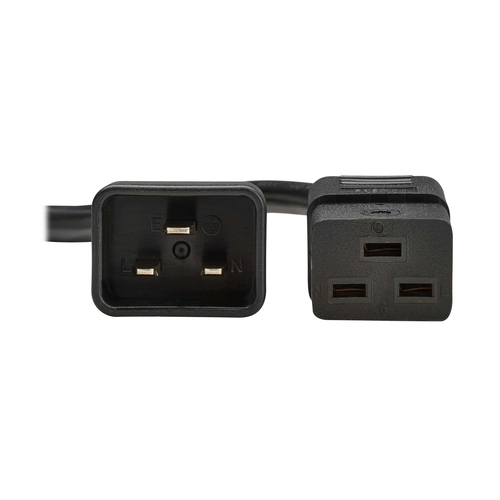

Connector 1
IEC C20
Connector 2
IEC C19
Connector 1 standard
CEE 7/4
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Jacket material
Polyvinyl chloride (PVC)
AWG wire size
16
Cable type
H05VV-F
Number of conductors
3

Power

Input voltage
250 V
Input current
16 A

Operational conditions

Operating temperature (T-T)
-15 - 70 °C
Storage temperature (T-T)
-15 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
20 - 80%

Certificates

Certification
CE (Europe); REACH; RoHS; UKCA

Weight & dimensions

Diameter
8.2 mm

Packaging data

Quantity per pack
1 pc(s)
Package width
203 mm
Package depth
13 mm
Package height
254 mm
Package weight
181 g
