Eaton P050-2P5M-EU power cable Black 2.5 m CEE7/7 IEC C19

Eaton P050-2P5M-EU power cable Black 2.5 m CEE7/7 IEC C19

Name: Eaton P050-2P5M-EU power cable Black 2.5 m CEE7/7 IEC C19
Brand: Eaton
SKU: P050-2P5M-EU
Price: 15.43 EUR
Availability: InStock

Connects a server or PC with a C20 plug to a PDU or UPS with Schuko outlets.

EU Power Cord Connects Data Center Equipment to Reliable AC Power

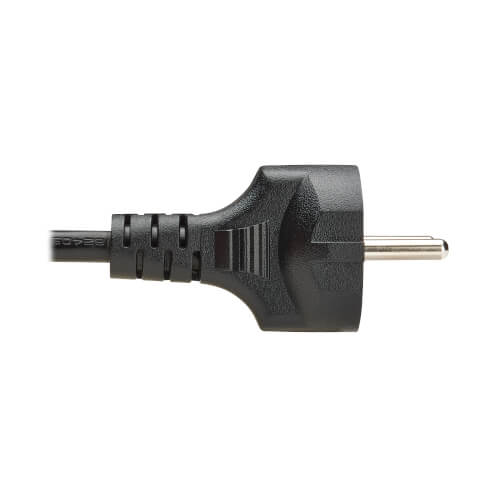

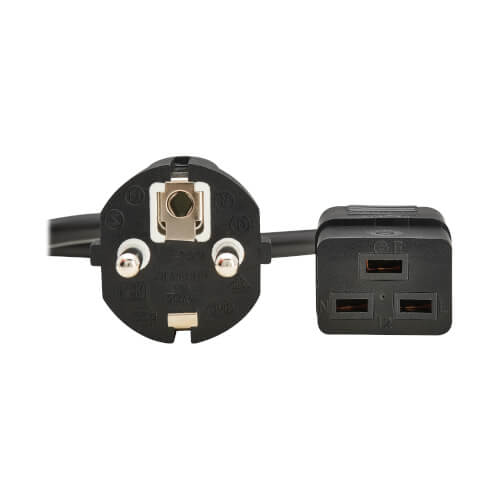

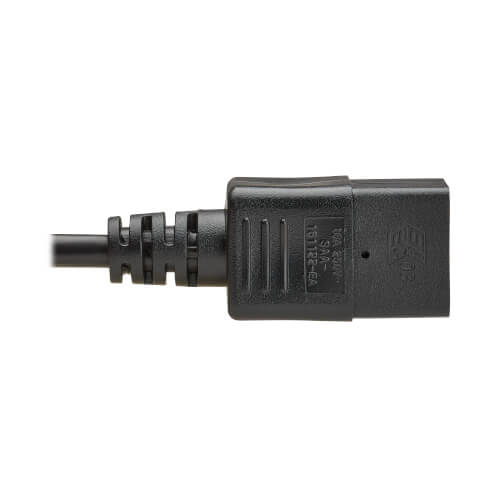

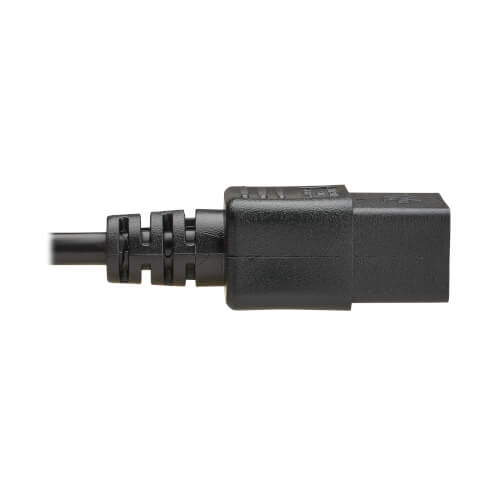

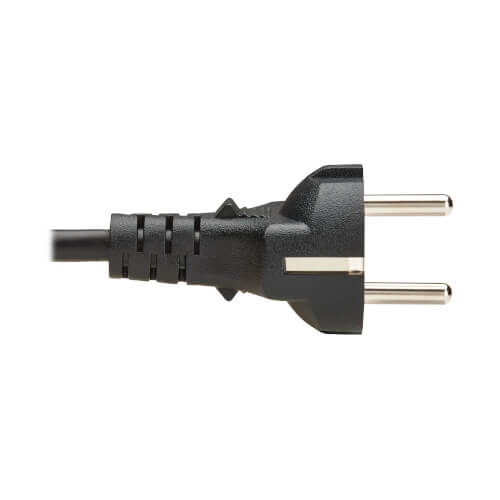

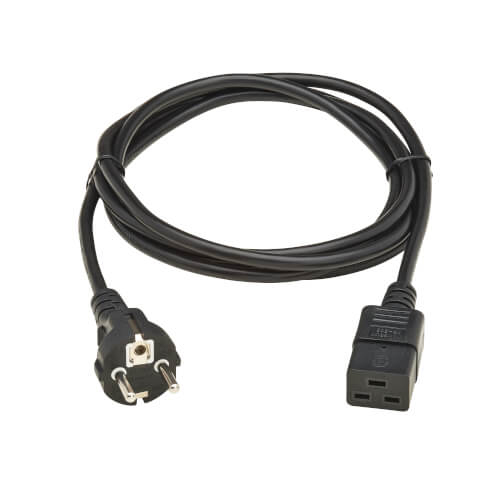

This VDE-compliant power cable connects a computer, server, hard drive or other device with a C20 plug to a PDU, UPS system or surge protector with Schuko outlets. It can also extend an existing power connection up to 2.5 meters (8.2 feet). The P050-2P5M-EU features a CEE 7/7 Schuko end for connecting to an AC power source and an IEC-320-C19 end for connecting to a network device in a data center or other IT application.

H05VV-F Jacket Is Fully VDE-Compatible for European Applications
The 0.75mm2 enhanced PVC jacket complies with VDE, CE and UKCA standards for data centers, racks, workstations and other IT applications in Europe.

8 IN STOCK

RRP Price €15.43

Specifications

Features

Product colour

Black

Connector 1 gender

Male

Connector 2 gender

Female

Cable length

2.5 m

Connector 1

CEE7/7

Connector 2

IEC C19

Connector 1 standard

CEE 7/7

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Jacket material

Polyvinyl chloride (PVC)

AWG wire size

Cable type

H05VV-F

Number of conductors

Power

Input voltage

250 V

Input current

16 A

Operational conditions

Operating temperature (T-T)

-15 - 70 °C

Storage temperature (T-T)

-15 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

20 - 80%

Certificates

Certification

CE (Europe); REACH; RoHS; UKCA

Weight & dimensions

Diameter

7 mm

Packaging data

Quantity per pack

1 pc(s)

Package width

203 mm

Package depth

13 mm

Package height

254 mm

Package weight

290 g

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.29 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
