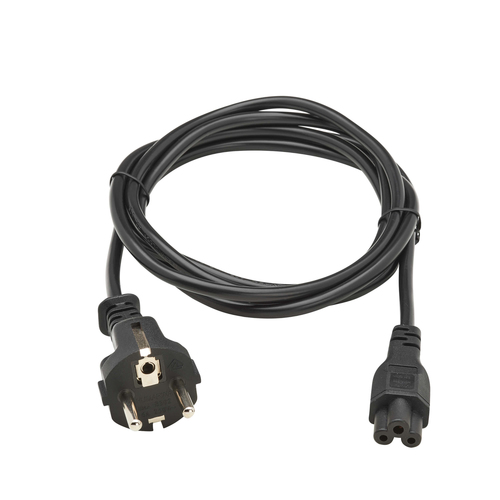

Eaton P058-02M-EU power cable Black 2 m CEE7/4 C5 coupler

Eaton P058-02M-EU power cable Black 2 m CEE7/4 C5 coupler

Name: Eaton P058-02M-EU power cable Black 2 m CEE7/4 C5 coupler
Brand: Eaton
SKU: P058-02M-EU
Price: 9.73 EUR
Availability: InStock

Connects a notebook computer or laptop with a 3-slot C6 power inlet to a PDU or UPS system with Schuko outlets.

European Computer Power Cord Connects Notebook Computers to a Schuko AC Outlet

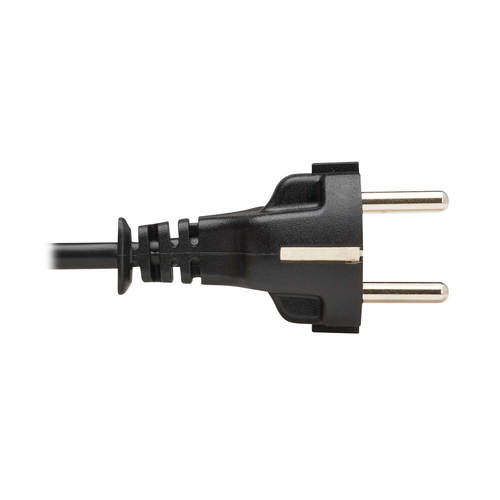

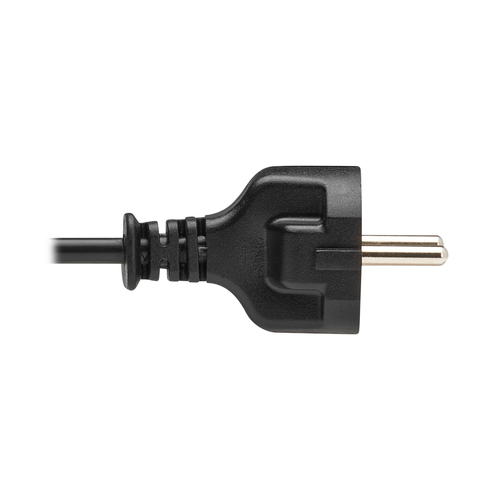

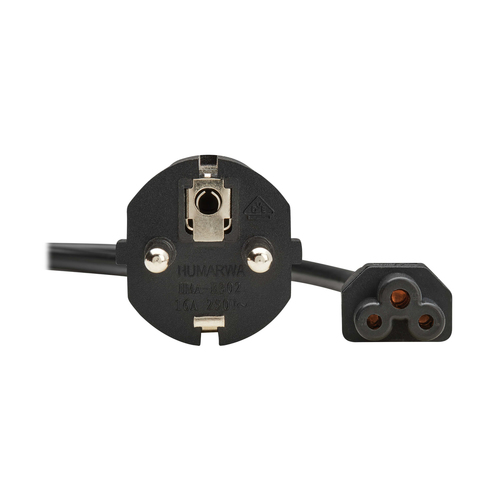

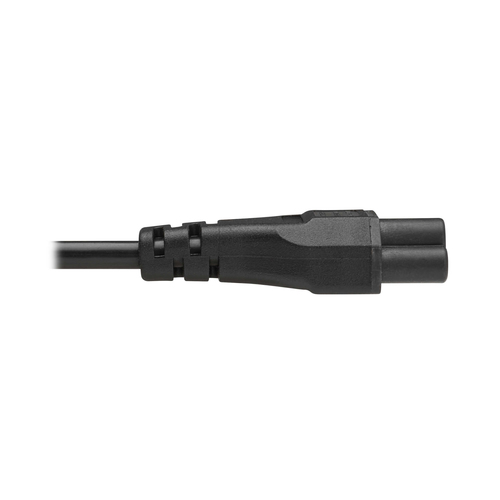

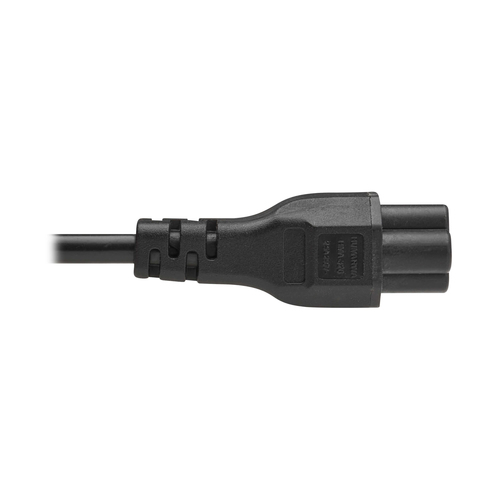

This VDE-compliant power cable connects a notebook computer, laptop or other device with a three-slot C6 inlet to a PDU, UPS or surge protector with Schuko outlets. The P058-02M-EU features a CEE 7/7 Schuko end for connecting to an AC power source and an IEC-320-C5 end for connecting to devices.

H05VV-F Jacket Is Fully VDE-Compatible for European Applications
The 0.75mm2 enhanced PVC jacket complies with VDE, CE and UKCA standards for data centers, racks, workstations and other IT applications in Europe.

10 IN STOCK

RRP Price €9.73

Specifications

Features

Product colour

Black

Connector 1 gender

Male

Connector 2 gender

Male

Cable length

2 m

Connector 1

CEE7/4

Connector 2

C5 coupler

Connector 1 standard

CEE 7/4

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Jacket material

Polyvinyl chloride (PVC)

AWG wire size

Cable type

H03VV-F

Number of conductors

Power

Input voltage

250 V

Input current

2.5 A

Operational conditions

Operating temperature (T-T)

-15 - 70 °C

Storage temperature (T-T)

-15 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

20 - 80%

Certificates

Certification

CE (Europe); REACH; RoHS; UKCA

Weight & dimensions

Diameter

5.9 mm

Packaging data

Quantity per pack

1 pc(s)

Package width

180 mm

Package depth

13 mm

Package height

230 mm

Package weight

170 g

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.17 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
