P4DD46A2-KVM-SWITCH - Cables & Adaptors by StarTech.com

Share a mouse, keyboard, USB 5Gbps hub, and dual 4K 60Hz DisplayPort displays between four DisplayPort-enabled computers

This Dual-Monitor KVM Switch enables users to switch between four desktops that are USB-A and DisplayPort enabled. It allows for sharing of dual-4K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 5Gbps devices.

Fast Switching with USB Emulation

USB Emulation technology enables faster switching of a keyboard, video, and mouse compared to traditional KVMs. USB Emulation also ensures compatibility with combination keyboards/mice as well as keyboards featuring additional function keys.

Dual-4K 60Hz Displays & USB 5Gbps Hub Ports

This TAA-Compliant KVM Switch supports dual-4K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. Additionally, it offers two USB 3.2 Gen 1 (5Gbps) Hub Ports for fast data transfer, and two USB 2.0 HID Ports for the keyboard and mouse. 8kV air and 6kV contact Electrostatic Discharge (ESD) protection.

Customizable Switching

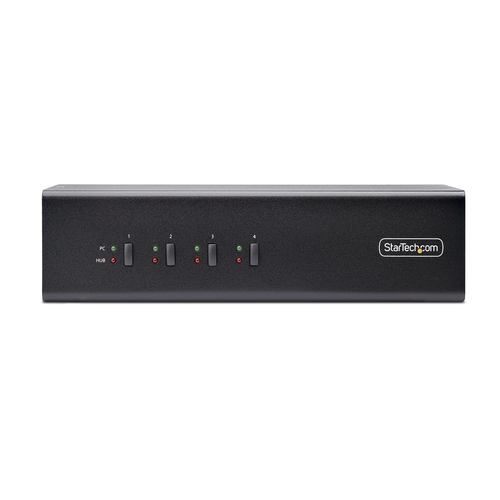

This Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of USB/Video and Audio, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• MAC Address Pass-Through Utility: Improve network security.
• USB Event Monitoring Utility: Track and log connected USB devices.
• Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

The StarTech.com Advantage

6 IN STOCK

RRP Price €1,101.68

Specifications

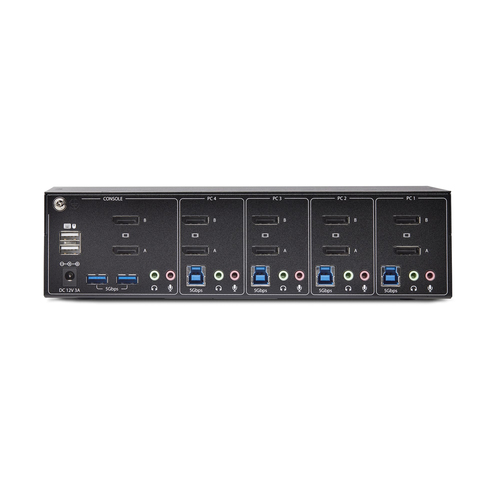

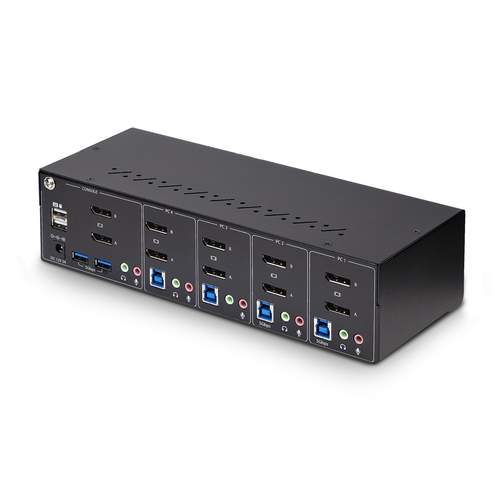

Ports & interfaces

Number of computers controlled
4
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
DisplayPorts quantity
8
DisplayPort version
1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
4
Console ports
3.5mm headphone, 3.5mm mic, DisplayPort
Console DisplayPorts ports quantity
2
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
Audio connections
Yes
Headphone outputs
5
Number of microphone inputs
5
DC-in jack
Yes

Performance

HD type
4K Ultra HD
Maximum resolution
3840 x 2160 pixels
Video bandwidth
60 Hz
Data transfer rate (max)
5 Gbit/s
Scan interval
10,20,30,40,50,60 s
HDCP
Yes
Plug and Play
Yes
Daisy chain
No

Design

Rack mounting
No
Product colour
Black
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Mean time between failures (MTBF)
103062 h

Display

Built-in display
No
On Screen Display (OSD)
Yes

Power

Power source
DC
Input voltage
100 - 240 V
Input current
1 A
Output voltage
12 V
Output current
3 A

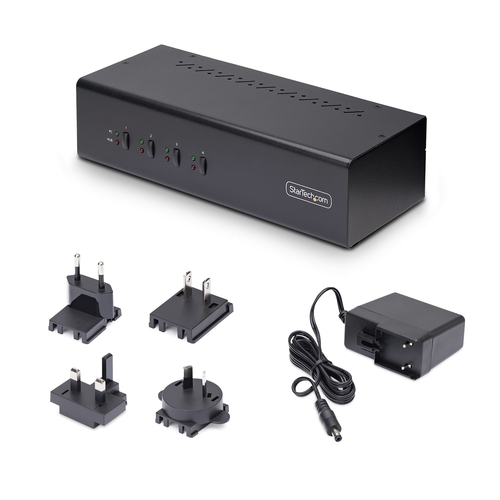

External power adapter
Yes
Compatible power plug types
EU, JP, UK, US

Sustainability

Sustainability compliance
Yes
Compliance certificates
RoHS, Trade Agreements Act (TAA)

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 90%

Weight & dimensions

Width
100 mm
Depth
253 mm
Height
66 mm
Weight
1.2 kg

Packaging data

Package width
332 mm
Package depth
162 mm
Package height
129 mm
Package weight
1.4 kg

Packaging content

Quick installation guide
Yes
AC adapter included
Yes

Other features

IP control
No

Logistics data

Master (outer) case width
513 mm
Master (outer) case length
352 mm
Master (outer) case height
301 mm
Products per master (outer) case
6 pc(s)
