P567-01M - Cables & Adaptors by Eaton

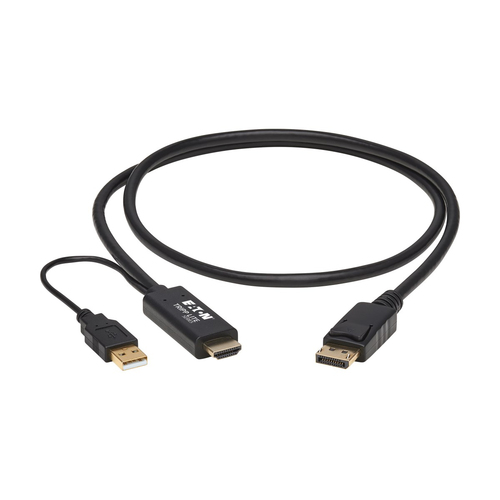

Name: Tripp Lite P567-01M HDMI to DisplayPort Active Adapter Cable (M/M) - 4K, USB Power, Black, 1 m (3.3 ft.)
Brand: Eaton
SKU: P567-01M
Price: 36.69 EUR
Availability: OutOfStock

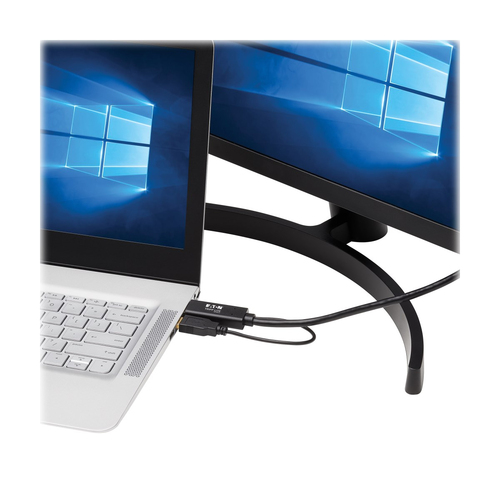

Active Adapter Cable Connects a 4K Monitor to Your Computer or Media Server
This all-in-one video converter cable lets you transmit 4K video with digital audio from the HDMI port on your Blu-ray player, satellite/cable box, computer or media server to your 4K DisplayPort-enabled monitor, projector or television. It’s recommended for home theater systems, digital signage, trade show displays and conference room presentations. You can continue using your existing DisplayPort monitor without the expense of a new HDMI display to match your source device.

Transmits Crystal-Clear True 4K Video with Audio and 4:4:4 Color
The P567-01M supports Ultra HD video resolutions up to 4096 x 2160 (4K x 2K) at 30 Hz with rich, full 7.1-channel surround sound, 36-bit Deep Color, HDCP 1.4 and 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Additionally, this cable transmits EDID information to ensure optimal display compatibility.

Ready to Use Right from the Package, So You Can Plug and Play Immediately
The plug-and-play cable requires no drivers or external power. The bus-powered cable receives any necessary extra power from the source device via the included USB-A connector. It is compatible with all HDMI sources and all major operating systems, including Windows, macOS and Linux. It is backward compatible with 1080p displays, so you can use the cable with older equipment.

ON ORDER

RRP Price €36.69

Specifications

Features

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Connector contacts plating

Gold

Power source

USB

Cable length

1 m

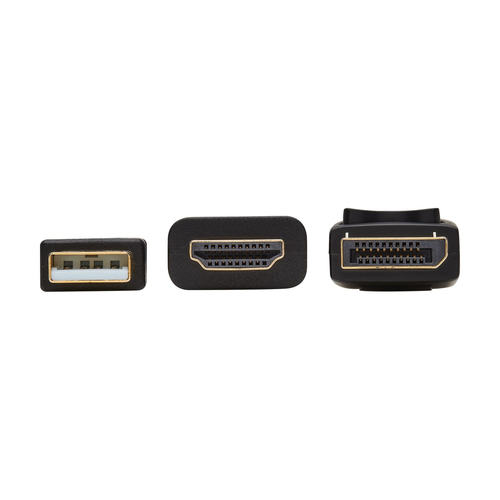

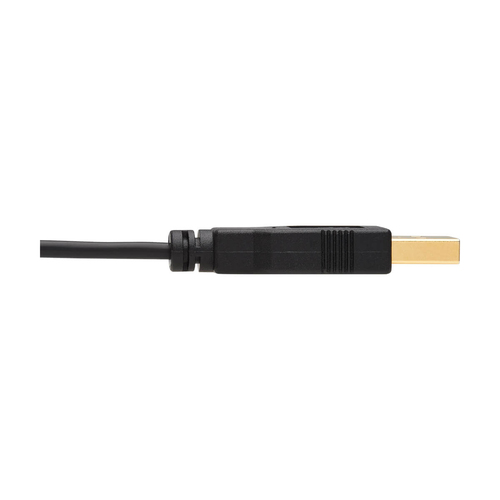

Connector 1

HDMI + USB

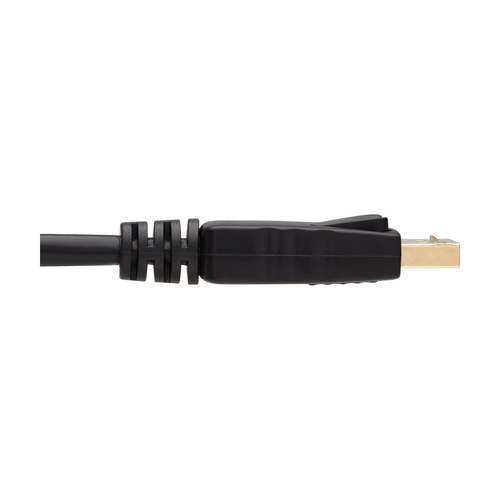

Connector 2

DisplayPort

Connector 1 gender

Male

Connector 2 gender

Male

HDCP

Yes

HDCP version

1.4

DisplayPort version

1.2

High Dynamic Range (HDR) supported

Maximum resolution

4096 x 2160 pixels

Supported video modes

1080p, 2160p

Product colour

Black

Magnetically shielded

Yes

Jacket material

Polyvinyl chloride (PVC)

AWG wire size

Colour depth

36 bit

Supported audio channels

7.1

Plug and Play

Yes

Converter type

Active video converter

Country of origin

Vietnam

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Linux operating systems supported

Yes

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-10 - 80 °C

Operating relative humidity (H-H)

10 - 85%

Storage relative humidity (H-H)

5 - 90%

Certificates

Compliance certificates

CE, REACH, RoHS

Sustainability

Sustainability compliance

Yes

Weight & dimensions

Cable diameter

6 mm

Packaging data

Package width

165.1 mm

Package depth

135.1 mm

Package height

23.1 mm

Package weight

70 g

Packaging content

Quantity per pack

1 pc(s)

Manual

Yes

Logistics data

Master (outer) case width

240 mm

Master (outer) case length

175 mm

Master (outer) case height

145 mm

Master (outer) case gross weight

910 g

Products per master (outer) case

10 pc(s)

Master (outer) case GTIN (EAN/UPC)

10037332261141

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.07 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
