P569-000-FF-IND - Cables & Adaptors by Eaton

P569-000-FF-IND - Cables & Adaptors by Eaton

Name: Tripp Lite P569-000-FF-IND 4K HDMI Coupler with Ethernet (F/F), Industrial High Speed, 4K 60 Hz, HDR, IP68 Rated, Dust Cap
Brand: Eaton
SKU: P569-000-FF-IND
Price: 21.95 EUR
Availability: OutOfStock

Industrial HDMI Coupler Recommended for Outdoor or Harsh Indoor Environments

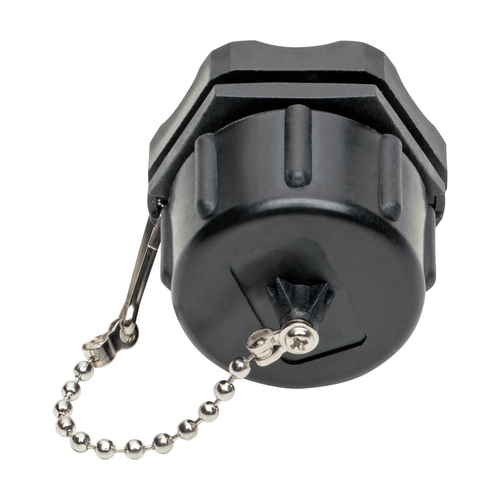

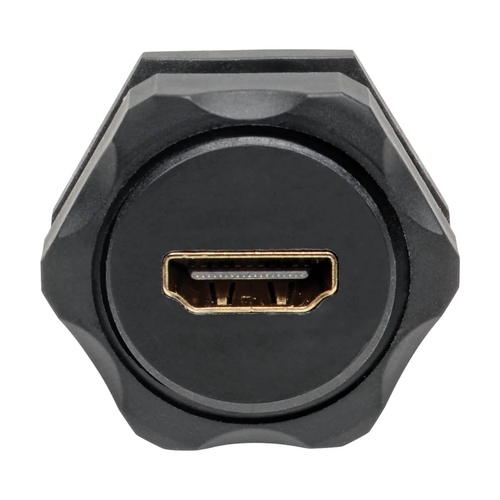

This 4K HDMI coupler is ideal for connecting industrial-grade high-speed HDMI cables in outdoor applications and other areas where protection from harsh elements is essential, such as factories and warehouses. The industrial bulkhead adapter and two female HDMI connectors are designed to withstand dust, debris and moisture that could threaten your IT infrastructure. An included dust cap protects the connectors when they aren’t in use.

IP68 Rating Denotes Resistance to Dust and Water

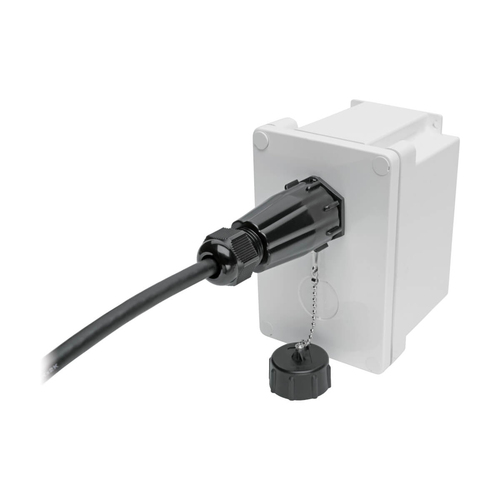

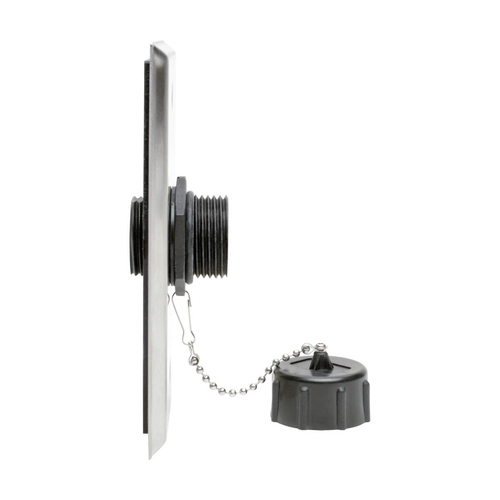

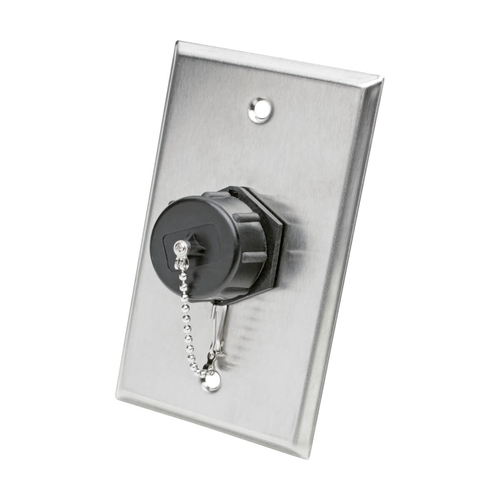

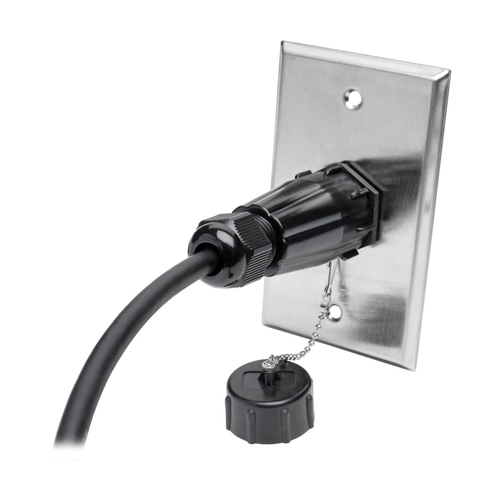

The IP68 rating means the HDMI coupler is not only 100% protected against dust, but also able to endure immersion in 1.5 meters of water for up to 60 minutes with no damage or decline in performance, making the coupler ideal for basement applications*. For applications that require IP68 protection, use the coupler with a N206-SB01-IND surface-mount box and P569-Series 4K/60 Hz HDMI cables. If only IP44 protection against splashing water from all directions is required, pair the coupler with an N206-FP01-IND, N206-FP02-IND or N206-FP04-IND wall plate and the P569-Series cables.

Enjoy the Clarity of 4K HDMI Video with Multi-Channel Audio, HDR and 4:4:4 Color
This 4K HDMI coupler supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as well as HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This coupler also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

*Based on manufacturer's guarantee. Standard IP68 rating guarantees water resistance at depths up to 1.5 meters for up to 30 minutes.

ON ORDER

RRP Price €21.95

Specifications

Ports & interfaces

Connector 1

HDMI Type-A

Connector 2

HDMI Type-A

Connector 1 gender

Female

Connector 2 gender

Female

Performance

Product colour

Black

Supported video modes

2160p

Maximum resolution (HDMI)

3840 x 2160 pixels

Operational conditions

Operating temperature (T-T)

-10 - 60 °C

Storage temperature (T-T)

-20 - 80 °C

Relative humidity

10 - 90%

Certificates

Compliance certificates

RoHS

Weight & dimensions

Width

127 mm

Depth

190.5 mm

Height

25.4 mm

Weight

40 g

Packaging data

Package width

127 mm

Package depth

190.5 mm

Package height

25.4 mm

Package weight

40 g

Logistics data

Country of origin

Taiwan

Products per master (outer) case

10 pc(s)

Master (outer) case GTIN (EAN/UPC)

10037332238440

Master (outer) case width

203.2 mm

Master (outer) case length

304.8 mm

Master (outer) case height

25.4 mm

Master (outer) case gross weight

360 g

Harmonized System (HS) code

8536.69.8000

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.04 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
