P778-006-DP - Cables & Adaptors by Eaton

Connect Your Computer’s DisplayPort and USB Ports to a KVM Switch

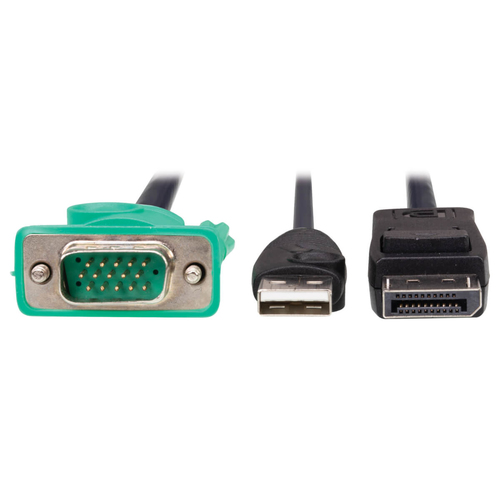

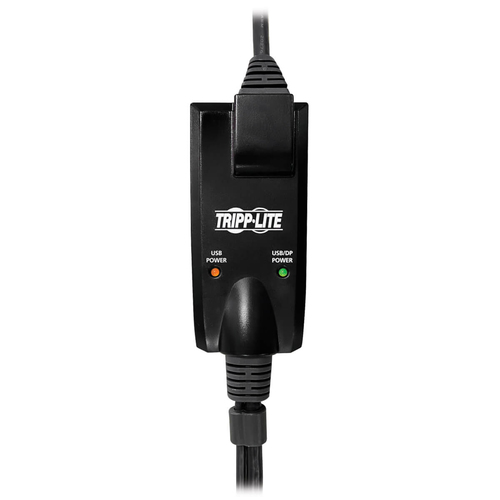

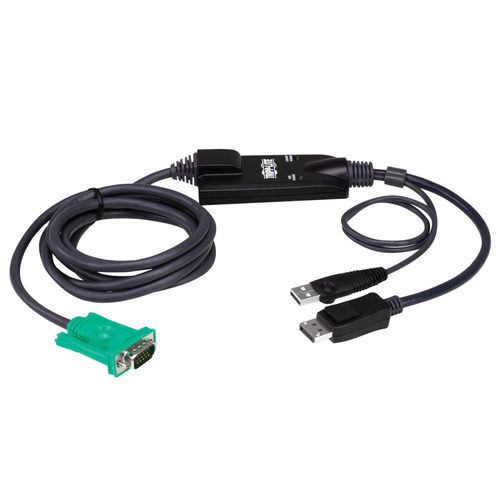

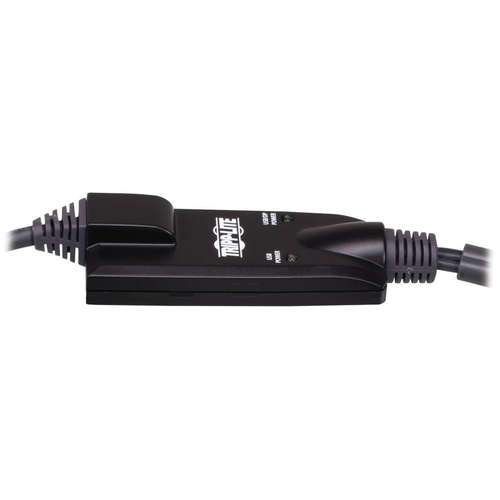

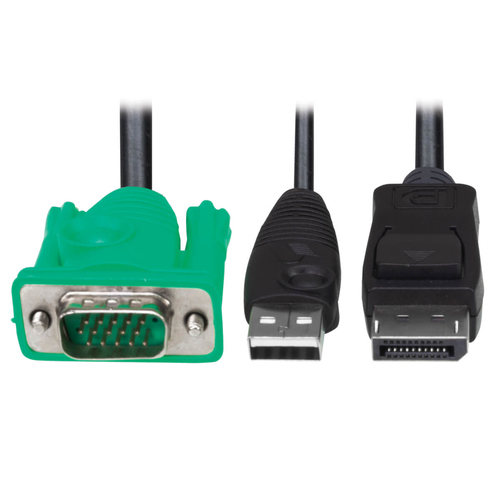

This convenient cable kit saves you money by combining necessary cables into one bunch. For use with B020-U and B022-U KVM switches, the P778-006-DP features male DisplayPort and USB-A connectors for your server or computer and a male HD15 connector for the KVM. The DisplayPort 1.1-compliant cable supports HD resolutions up to 1920 x 1080 (1080p) at 60 Hz with 36-bit Deep Color. The USB 2.0 cable supports 480 Mbps speeds. The bus-powered cable kit requires no software or external power adapter. A sliding switch on the back of the housing lets you decide between USB power mode or USB + DP power mode with LEDs indicating which mode you have chosen.

ON ORDER

RRP Price €55.63

Specifications

Performance

Product colour
Black, Green
Cable length
1.83 m
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
Connector 1 gender
Male
Connector 2 gender
Male
Maximum video resolution
1920 x 1080 pixels
Cable jacket material
Polyvinyl chloride (PVC)

Packaging data

Package width
160 mm
Package depth
119.1 mm
Package height
61 mm
Package weight
320 g

Logistics data

Country of origin
China
Harmonized System (HS) code
8544.42.2000
Master (outer) case GTIN (EAN/UPC)
10037332263350
Master (outer) case width
490 mm
Master (outer) case length
338.1 mm
Master (outer) case height
337.8 mm
Master (outer) case gross weight
11.2 kg
Products per master (outer) case
40 pc(s)
