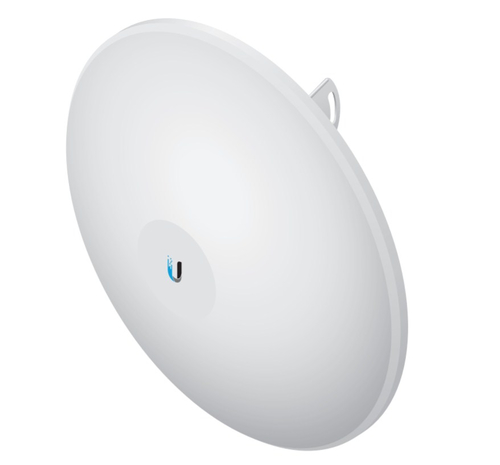

Ubiquiti PBE-5AC-500 network antenna Directional antenna 27 dBi

Poynting OMNI-0705 network antenna Omni-directional antenna N-type 7.5 dBi Antennas

High-Gain Omni-Directional 5 GHz Wi-Fi AntennaThe OMNI-705 is a high-performance omni-directional Wi-Fi antenna developed by Poynting Antennas. Designed to operate in the 5.0 – 6.0 GHz Wi-Fi band, this antenna delivers a maximum gain of 7.5 dBi, ensuring reliable and stable wireless connectivity. Its superior pattern control and rugged construction make it ideal for demanding environments.Optimised 5 GHz Wi-Fi Connectivity: Covers the 5.0 – 6.0 GHz band, providing enhanced network performance.High-Gain Performance: Delivers 7.5 dBi peak gain, ensuring strong and stable signal transmission.Omni-Directional Design: Provides 360° coverage, reducing dead zones and ensuring consistent connectivity.Superior Pattern Control: Maintains constant gain across the entire frequency range for reliable connections.Versatile Deployment: Ideal for resolving Wi-Fi channel saturation and optimising network flexibility.Rugged & Weatherproof Design: IP69K and IK10-rated enclosure ensures durability in harsh environmental conditions.Customisable Connectivity: Equipped with an N-Type female connector, allowing easy integration with various cable types and lengths.The OMNI-705 is a powerful and durable Wi-Fi antenna, offering high gain and exceptional performance for industrial, commercial, and outdoor applications.Ideal ApplicationsSmart Utilities: Smart Power Metering, Gas & Water MeteringSmart Buildings: Climate control, access control, security, irrigationSmart Environmental & Water SystemsWarehouses & Logistics systemsIndustrial factory automation and M2M systemsFarming & Agricultural M2M IoT

Poynting XPOL-1-5G network antenna Omni-directional antenna SMA 4 dBi Antennas

The XPOL-1-5G is Poynting’s second generation “V2” of this very popular Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna. The addition of a 4X4 MIMO derivative is also available for user specific needs. The antenna has been completely redesigned form the previous generation with an all new enclosure and antenna design. The antenna now includes the newer 3400 – 3800 MHz bands as well as the in demand lower 617 MHz band, which were not previously covered by our V1 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 617 – 960 MHz, 1700 – 2170 MHz, 2300 – 2700 MHz & 3400 – 3800 MHz, with a peak gain of 4 dBi across the frequency bands of operation.The radiation patterns of this antenna are omni-directional and exceptionally well controlled, further adding to the performance of the antenna. This makes the antenna perfect for most application areas, such as urban, rural, agricultural and commercial, to achieve the best possible coverage over a large area. The robust mechanical enclosure design makes the antenna weather, dust and vandal resistant and gives it an IP65 rating, suitable for harsh environments.

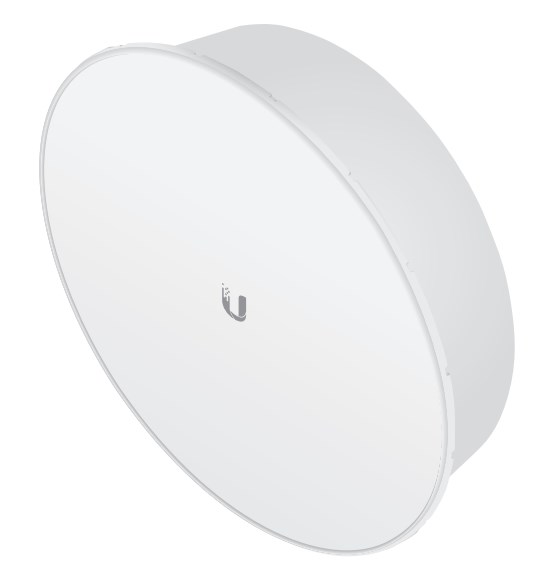

Ubiquiti PowerBeam AC ISO Gen2 Network bridge 450 Mbit/s White Antennas

5 GHz airMAX® ac Bridge with RF Isolated ReflectorIncorporating advanced engineering with proprietary airMAX ac technology, the PowerBeam® ac ISO is ideal for deployments requiring maximum performance and RF isolation.Performance BreakthroughairMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.Innovative Mechanical DesignThe integrated isolator design improves RF isolation to spatially filter out interference, and the metal-plated interior of the rear housing enhances RF shielding.Superior RF IsolationCompare the two near-field plots, and note the superior performance of the integrated RF isolator. Both near-field plots are displayed in watts and use a linear scale.Superior ProcessingUbiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.Advanced Software TechnologyUbiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

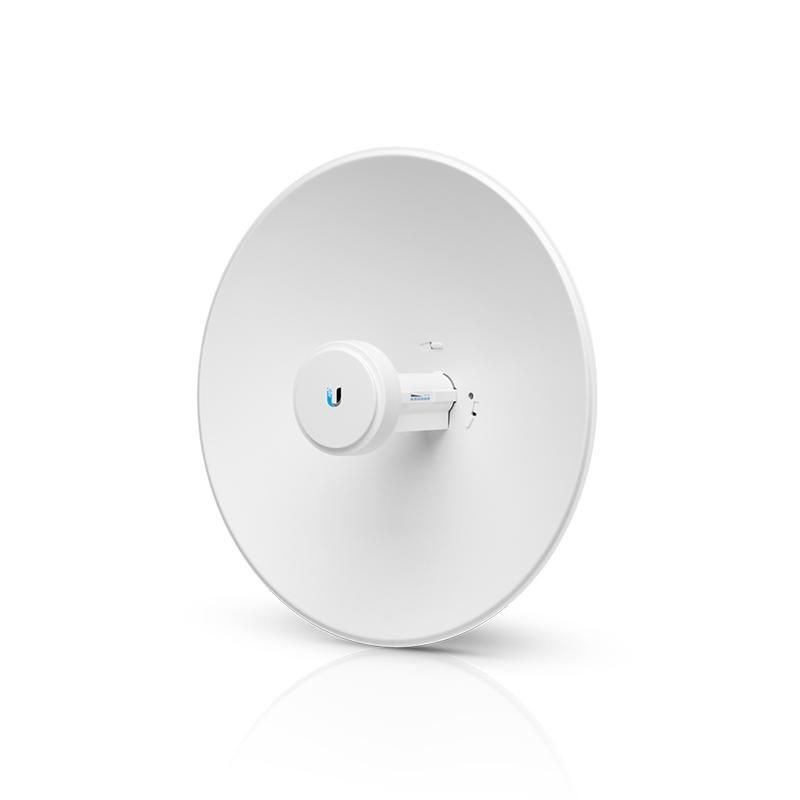

Ubiquiti PowerBeam 2AC network antenna Directional antenna 18 dBi Antennas

High-Performance airMAX® ac BridgeIncorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam® AC is ideal for CPE deployments requiring maximum performance.Management Wi-Fi RadioThe PowerBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.Improved Mounting and Surge ProtectionFeaturing enhanced protection against ESD events, the PowerBeam® AC offers a more robust mount with a convenient lifting loop or handle.Integrated Radio DesignUbiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.Plug and Play InstallationThe PowerBeam® AC requires no tools for assembly; only a single wrench is required for pole-mounting.Performance BreakthroughairMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.Superior ProcessingUbiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.Incredible Antenna “Beam” PerformanceThe form factor of the PowerBeam® AC features the highest gain for its size. The PowerBeam AC’s excellent beam directivity provides the best performance in high-noise environments.Now with airOS®8airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

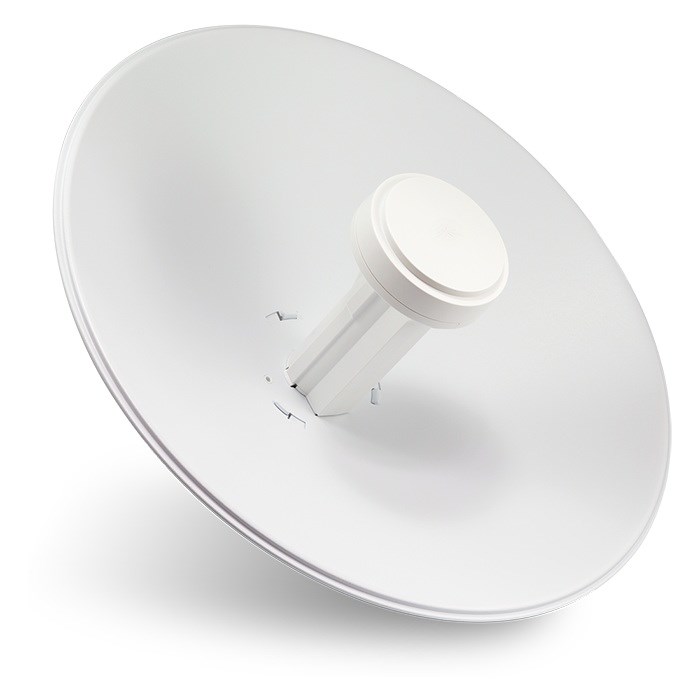

Ubiquiti PBE-M2-400 network antenna Sector antenna 18 dBi Antennas

High-Performance airMAX® BridgeIncorporating a dish reflector design with advanced technology, the PowerBeam™ is the latest generation of Ubiquiti Networks® airMAX® CPE for customer locations.Models: PBE‑M2‑400, PBE‑M5‑300, PBE‑M5‑400, PBE‑M5‑620Integrated Radio DesignUbiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.Plug and Play InstallationThe PowerBeam™ requires no tools for assembly; only a single wrench is required for pole-mounting.Incredible Antenna "Beam" PerformanceThe form factor of the PowerBeam™ features the highest gain for its size. The PowerBeam’s excellent beam directivity provides the best performance in high-noise environments.Advanced Software TechnologyUbiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.Protective RadomeThe PBE-RAD-400 is a protective radome that shields the radio from the elements; it is available as an optional accessory for the PowerBeam PBE-M2-400 and PBE-M5-400.

5G-ANTM-O-4-B= Antennas

5G-ANTM-SMA-D= Antennas

Poynting SWIRL-4-CPE network antenna Omni-directional antenna SMA 6 dBi Antennas

The SWIRL-4-02 (CPE) builds upon the antenna array of the SWIRL-4-01 by adding an aluminum base, known as the SWIRL-BASE. The SWIRL-BASE serves as an enclosure for 5G routers, transforming the SWIRL-4-02 into a Customer Premises Equipment (CPE) device, where the router and antennas are combined into a single unit.Additional Benefits1. Simplified Deployment: SWIRL-4-02 provides an all-in-one solution, simplifying the installation process by housing both the antenna array and the 5G router(s) in a single unit. This reduces setup complexity.2. Optimized Performance: Housing the router within the same enclosure as the antennas minimizes cable loss and improves signal integrity. This leads to better overall performance, especially in challenging environments where maintaining a stable connection is crucial.3. Router Housing: The SWIRL-BASE can accommodate router sizes of 231 x 193 x 50 mm / 9.094 x 7.60 x 1.97 inch or 293.5 x 148.5 x 50 mm / 11.56 x 5.85 x 1.97 inch.4. Compact Design: SWIRL-4-02 features a compact design with dimensions of 382 mm / 15.039 inch in diameter and 224 mm / 8.82 inch in height.

Cisco 4G-LTE-ANTM-O-3 network antenna Omni-directional antenna SMA 2.5 dBi Antennas

Indoor or outdoor low-profile antenna with 4-foot dongle, black radome.4G-LTE-ANTM-O-3 antenna is an integrated 3-in-1- indoor and outdoor antenna. It comes with two Long Term Evolution (LTE) antennas and one Global Positioning System (GPS) antenna in a single radome.

Cisco 4G-LTE-ANTM-D network antenna Omni-directional antenna TNC 2 dBi Antennas

The 4G-LTE-ANTM-D omnidirectional dipole antenna is designed for indoor use with Cisco 4G and Cisco 3G wireless Integrated Services Routers Generation 2 (ISRs G2) and Enhanced High-Speed WAN Interface Cards (EHWICs).The 4G-LTE-ANTM-D antenna is marked with a green band and the product ID (PID) to indicate that it supports 4G Long Term Evolution (LTE) networks. It has the following hardware features: - Articulating Joint—It can be rotated 360 degrees and is capable of maneuvering into three stop positions: 0 degrees, 45 degrees, and 90 degrees. - Male threaded Neill-Concelman (TNC) Connector—It lets you directly mount the antenna to any Cisco 4G and Cisco 3G wireless Integrated Services Router (ISR) EHWIC with a TNC connector (Figure 1). The threads on the connector must comply with the ANSI 7/16-28 UNEF 2B thread specification.
