Shuttle PC850 power supply unit 850 W 20+4 pin ATX Flex ATX Grey

Name: Shuttle PC850 power supply unit 850 W 20+4 pin ATX Flex ATX Grey
Brand: Shuttle
SKU: PC850
Price: 227.35 EUR
Availability: InStock

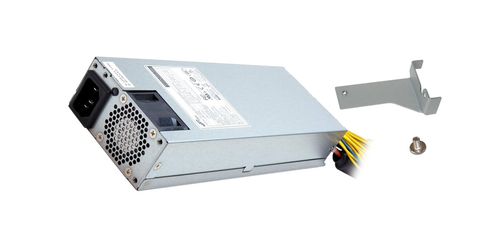

The Shuttle XPC Accessory PC850 is an internal AC to DC switching power supply unit (PSU) meant as upgrade kit for certain Shuttle products. This power supply is guaranteed to deliver an excess of power for power-hungry processors and graphics cards. It provides a maximum output wattage of 850 Watt. Its 80 PLUS® Platinum and Energy Star V5.0 compliance helps save on energy costs as compared to previous power supply models.

1 IN STOCK

RRP Price €227.35

Specifications

Power

Total power

850 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power Factor Correction (PFC) type

Active

Combined power (+5Vsb)

3 W

Max output current (+3.3V)

20 A

Max output current (+12V)

70.8 A

Max output current (+5V)

20 A

Max output current (-12V)

0.5 A

Hold time

17 ms

Efficiency

92%

Power protection features

Over current, Over voltage, Overheating, Short circuit

Ports & interfaces

Motherboard power connector

20+4 pin ATX

Number of SATA power connectors

PCI Express power connectors (6+2 pin)

Performance

80 PLUS certification

80 PLUS Platinum

Purpose

Power supply unit (PSU) form factor

Flex ATX

Bearing technology

Ball bearing

Mean time between failures (MTBF)

100000 h

Compatible products

Shuttle XPC Cubes SH510R4, SH570R6 Plus, SH570R6 Plus, SH570R8, SW580R8

Design

Product colour

Grey

Cooling type

Active

Fan diameter

4 cm

Number of fans

1 fan(s)

LED indicators

Status

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 80 °C

Certificates

Compliance certificates

Certification

TUV, FCC, UL/cUL, CCC, CB 62368-1 & CB 60950-1

Weight & dimensions

Width

220 mm

Depth

81.5 mm

Height

40.5 mm

Technical details

Sustainability certificates

ENERGY STAR, ErP

Logistics data

Harmonized System (HS) code

85044030

Other features

Rise time

20 ms

Description

Manufacturer

Shuttle

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

N/A

Country of Origin

N/A

Datasheet

Data Sheet

Download
