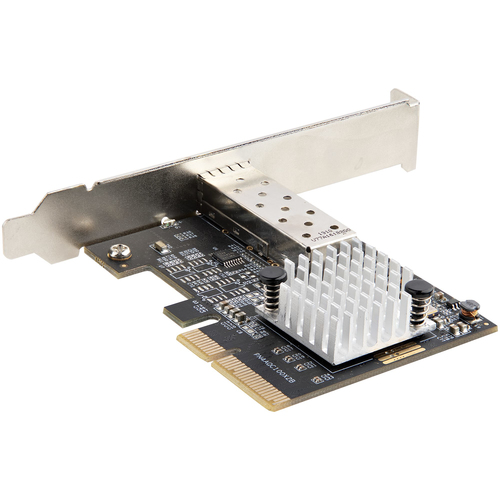

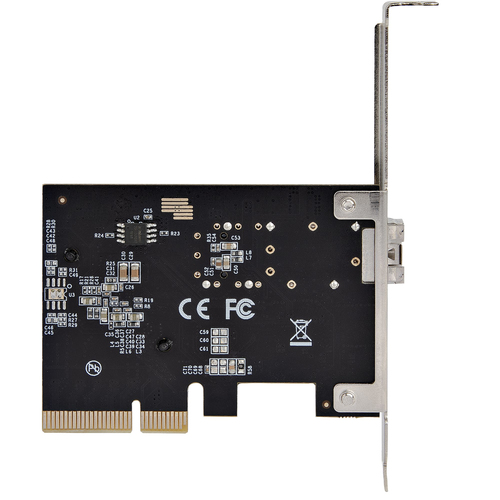

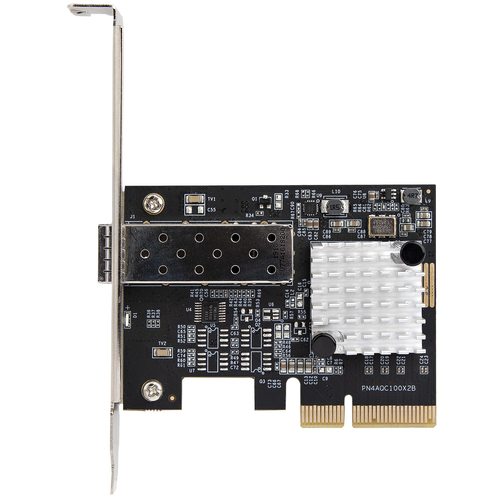

Name: StarTech.com 10G PCIe SFP+ Card - Single SFP+ Port Network Adapter - Open SFP+ for MSA-Compliant Modules/Direct-Attach Cables - 10 Gigabit Fiber PCIe...
Brand: StarTech.com
SKU: PEX10GSFP
Price: 218.83 EUR
Availability: OutOfStock

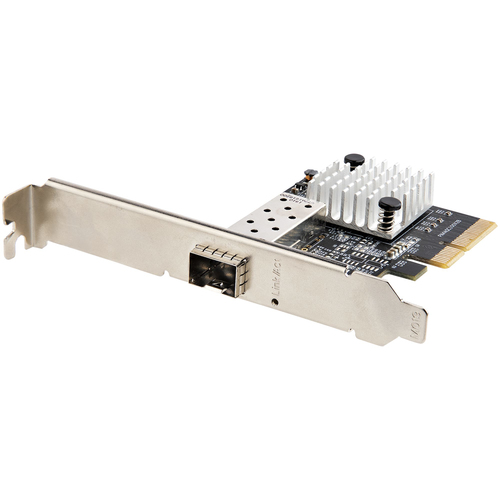

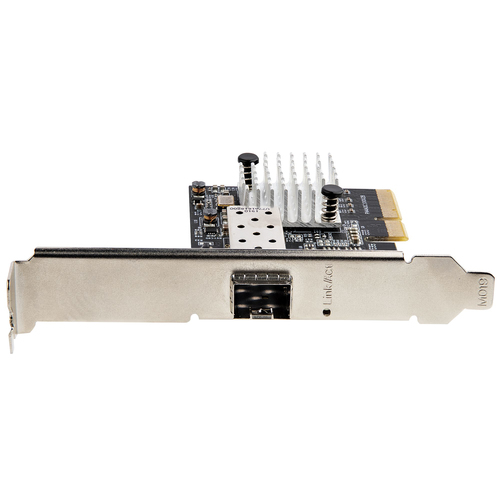

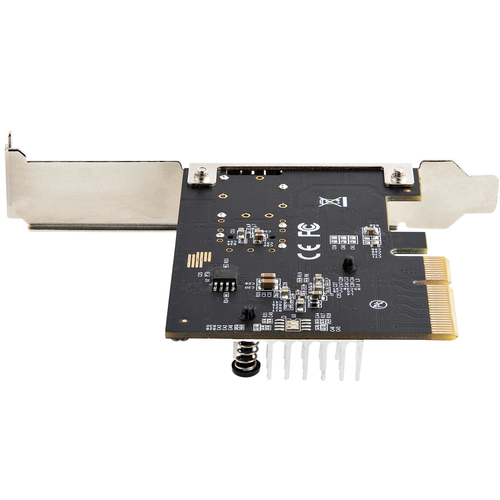

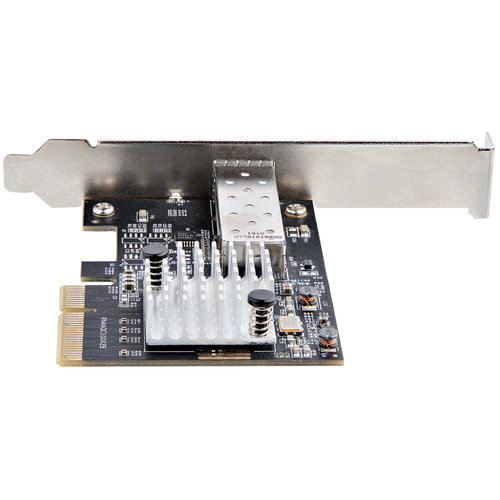

PCI Express SFP+ Card | 10 Gbps | Open SFP+ Slot | Fiber, Copper & DAC | PCIe 3.0 x4

Increase your network speed

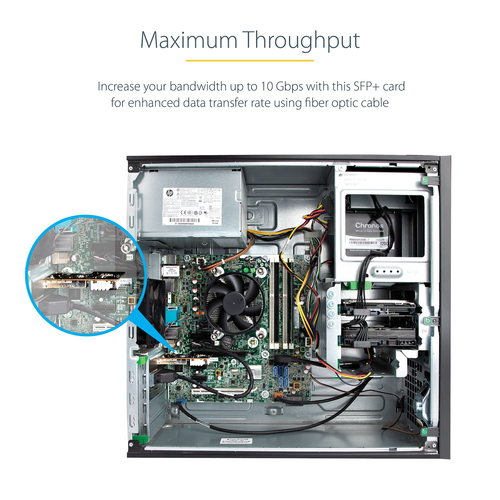

This PCIe network card lets you take advantage of improved bandwidth in data-intensive applications such as multimedia streaming and large file transfers. This fiber NIC offers data transfer rates of up to 10Gbps which improve speeds and reduces load times.

Scalable network connection

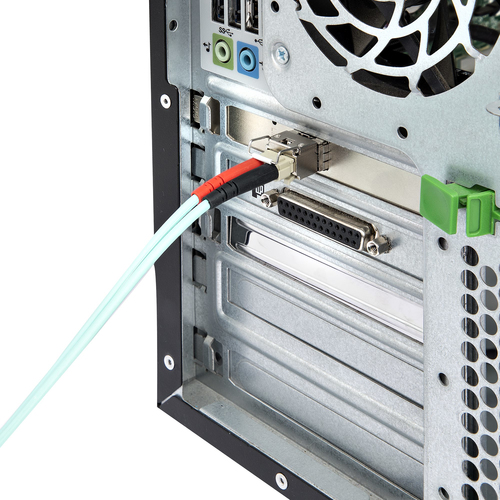

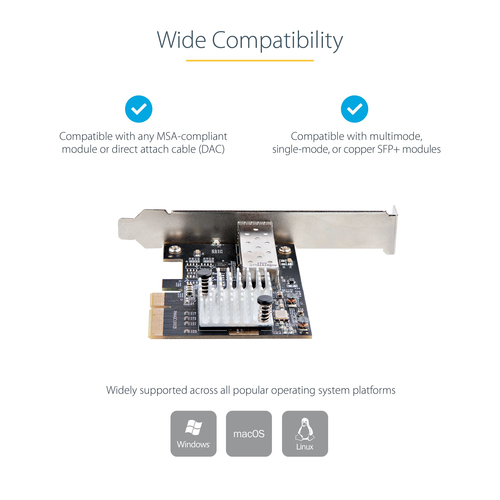

Featuring an open SFP+ slot, you have the flexibility to make changes as needed just by swapping the module in use, whether it is fiber, copper, or direct attach cables (DAC). The card complies with MSA, allowing use with modules from StarTech.com or 3rd parties that support MSA.

Enhance your existing hardware

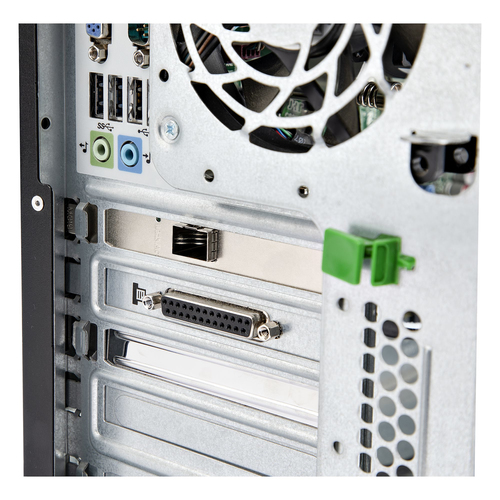

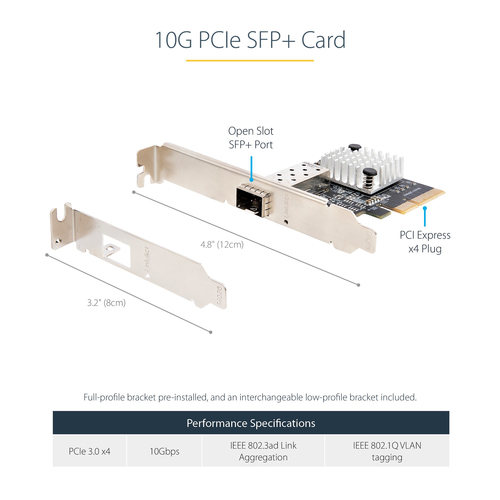

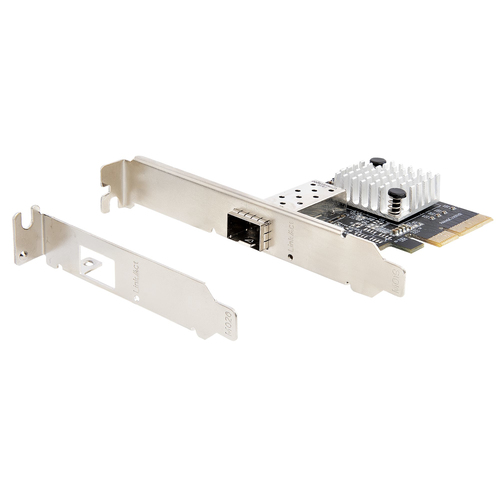

The 10Gb network card easily connects via an available x4 PCI Express 3.0 expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various types of computer chassis. It supports a wide variety of OSes including Windows and Linux.

The PEX10GSFP is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage

ON ORDER

RRP Price €218.83

Specifications

Ports & interfaces

Connectivity technology

Wired

Host interface

PCI Express

Interface

Fiber

Fiber optic connector

SFP+

PCI version

3.0

Network

Maximum data transfer rate

20000 Mbit/s

Networking standards

IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3x

Full duplex

Yes

Jumbo frames support

Yes

Jumbo frames

9000

VLAN tagging

Yes

Fiber mode structure

Multi-mode, Single-mode

Design

Component for

Product colour

Black

Internal

Yes

Chipset

Aquantia AQC100S

System requirements

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Linux operating systems supported

Yes

Operational conditions

Operating temperature (T-T)

5 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

20 - 80%

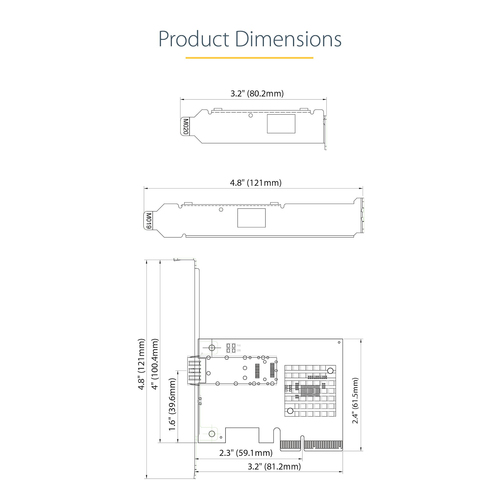

Weight & dimensions

Width

18 mm

Depth

94 mm

Height

121 mm

Weight

55 g

Packaging data

Package width

210 mm

Package depth

145 mm

Package height

35 mm

Package weight

145 g

Packaging content

Mounting brackets included

Yes

Quick installation guide

Yes

Technical details

Compliance certificates

CE, RoHS

Logistics data

Harmonized System (HS) code

85176990

Master (outer) case width

310 mm

Master (outer) case length

355 mm

Master (outer) case height

235 mm

Products per master (outer) case

20 pc(s)

Other features

Flow control support

Yes

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.055 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
