PEX2S553LP - Cables & Adaptors by StarTech.com

Name: StarTech.com 2-Port Low Profile Native RS232 PCI Express Serial Adapter Card, 16550 UART, PCIe to Dual Serial DB9, Windows & Linux, TAA - Replaced by...
Brand: StarTech.com
SKU: PEX2S553LP
Price: 56.16 EUR
Availability: OutOfStock

Add 2 high-speed RS-232 serial ports to your low profile/small form factor computer with a PCI Express expansion slot

The PEX2S553LP low profile/half-height PCI Express Serial Card turns a PCI Express slot into two RS232 (DB9) serial connections.

The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.

The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows®; and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor).

This product is a replacement for our PEX2S552LP card.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

ON ORDER

RRP Price €56.16

Specifications

Ports & interfaces

Host interface

PCIe

Output interface

Serial

Expansion card standard

PCIe 1.1

Serial ports quantity

Serial interface type

RS-232

Peripheral (Molex) power connectors (4-pin)

Design

Internal

Yes

Product colour

Green

Features

Chipset

ASIX - MCS9922CV-AA

Baud rate

460.8 Kbit/s

FIFO (First In, First Out)

128 B

Flow Control type

DTR/DSR, RTS/CTS, XON/XOFF

Operational conditions

Operating temperature (T-T)

-10 - 80 °C

Storage temperature (T-T)

-20 - 100 °C

Operating relative humidity (H-H)

5 - 85%

System requirements

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 95, Windows 98SE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Linux operating systems supported

Yes

Server operating systems supported

Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Other operating systems supported

DOS, Windows XP Embedded

Technical details

Compliance certificates

CE, RoHS

Weight & dimensions

Width

80 mm

Depth

105 mm

Height

20 mm

Weight

63.5 g

Packaging data

Cables included

Serial

Mounting brackets included

Yes

Drivers included

Yes

Manual

Yes

Package width

143 mm

Package depth

173 mm

Package height

32 mm

Package weight

180 g

Logistics data

Harmonized System (HS) code

84733020

Products per master (outer) case

50 pc(s)

Master (outer) case width

363 mm

Master (outer) case length

684 mm

Master (outer) case height

320 mm

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.0635 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

StarTech.com Mini DisplayPort to VGA Adapter with Audio Cables & Adaptors

Connect your Mac or PC to a VGA display and a discrete 3.5mm audio outputThis unique Mini DisplayPort to VGA adapter is equipped with a built-in audio port which lets you connect Mini DisplayPort equipped devices, such as a Microsoft Surface Pro devices or MacBook Air laptop, to a VGA display or projector with audio.Share your presentations and videosBecause most boardrooms are set up differently, the length of cables available in each room vary. Not all laptops have the Mini DisplayPort (mDP) and audio ports positioned on the same side, which can become awkward when you’re trying to share your presentations. It can also mean that some ports may be just out of reach during a meeting.This convenient adapter positions your audio and video ports on the same side of your laptop, to ensure that all of the ports you need are accessible when you need them.Substitute for a damaged audio portIf the audio port on your mobile device is damaged or blocked by other connections, this convenient adapter guarantees that you’ll always have all of the ports you need for every presentation. By connecting audio to your laptop through the adapter, you can be prepared for any situation.In order to use the audio function of the adapter you need to power the adapter through a USB port on your laptop, or through a charge port on a USB grommet. Simply plug a Micro USB cable from the adapter into the USB port and audio will be available when you deliver your presentation.Create a clutter-free environmentThe adapter can also be used for connecting your laptop or desktop computer to your monitor and speakers. The adapter and connected cables can be placed nicely at the back of your monitor to create a tidy setup between all of your devices.Arrive prepared, wherever you goThis mDP to VGA adapter is extremely portable with a lightweight, small-footprint design. It’s the perfect accessory to carry with your mobile devices, fitting easily into your laptop bag or carrying case. Its ultra-portable design makes the adapter ideal for BYOD (Bring Your Own Device) applications at the office.It also enables you to arrive prepared when you’re presenting to a potential client, teaching off-site, or traveling to a meet with a customer.The adapter is compatible with Intel Thunderbolt, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, and supports resolutions up to 1920x1200 (WUXGA).The MDP2VGAA is backed by a 3-year StarTech.com warranty and free lifetime technical support.The StarTech.com Advantage- Group your VGA and audio ports together, to ensure they're all accessible when you need them- Substitute a damaged or blocked audio port by connecting your audio directly through the adapter- Provide crystal-clear picture quality with support for high-definition video resolutions up to 1920x1200 or 1080p

€26.40

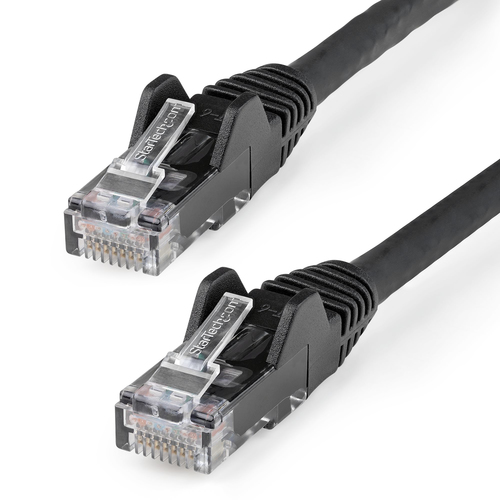

StarTech.com 7m CAT6 Ethernet Cable - LSZH (Low Smoke Zero Halogen) - 10 Gigabit 650MHz 100W PoE RJ45 10GbE UTP Network Patch Cord Snagless with Strain Relief - Black, CAT 6, ETL Verified, 24AWG Cables & Adaptors
