StarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485

StarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485

Name: StarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485
Brand: StarTech.com
SKU: PEX4S232485
Price: 180.47 EUR
Availability: OutOfStock

Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot

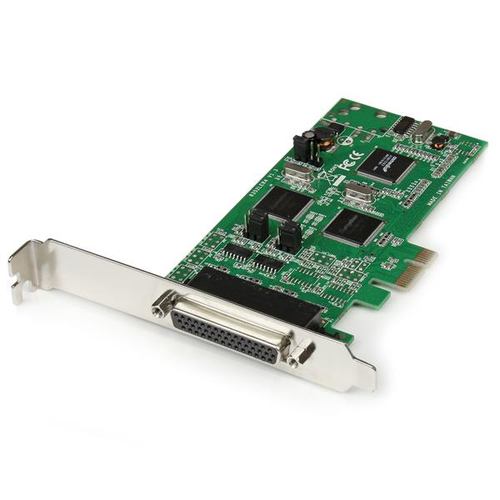

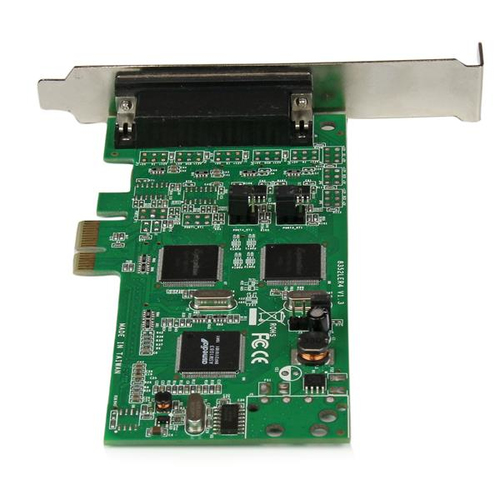

The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.

This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.

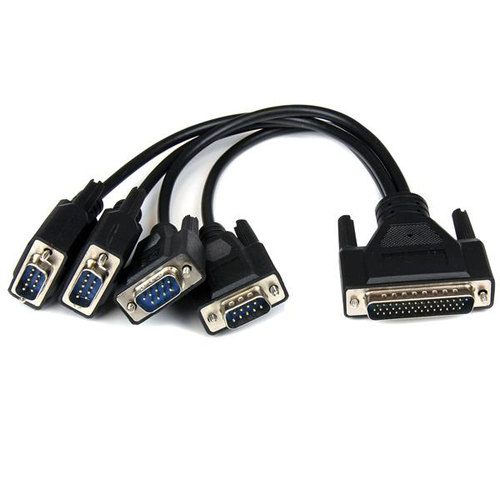

A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

- This single PCI Express combo card is compatible with any serial device protocol (RS232, RS422, and RS485), allowing for communication with multiple devices over mixed protocols

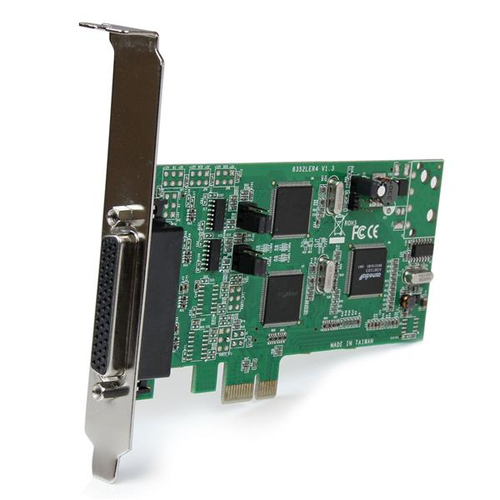

- Includes both low profile/half-height and full profile brackets to ensure fitment into a broad range of system form factors
- The included breakout cable saves expense as an all-in-one solution, and allows the addition of multiple serial ports through a single PCI Express slot

ON ORDER

RRP Price €180.47

Specifications

Ports & interfaces

Host interface

PCIe

Output interface

Serial

Serial ports quantity

Serial interface type

RS-232/422/485

Design

Internal

Yes

Features

Chipset

SystemBase SB16C1052PCI

FIFO (First In, First Out)

256 B

Operational conditions

Operating temperature (T-T)

0 - 100 °C

Storage temperature (T-T)

0 - 150 °C

Operating relative humidity (H-H)

20 - 80%

System requirements

Windows operating systems supported

Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Linux operating systems supported

Yes

Technical details

Compliance certificates

RoHS

Weight & dimensions

Width

125 mm

Depth

70 mm

Height

20 mm

Weight

67.4 g

Packaging data

User guide

Yes

Package width

146 mm

Package depth

210 mm

Package height

41 mm

Package weight

390 g

Logistics data

Harmonized System (HS) code

84733020

Other features

Data transfer rate

0.4608 Mbit/s

Connectivity technology

Wired

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.0674 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
