Name: Shuttle XPC slim Barebone XH610 - S1700, Intel H610, 1xDP, 1xHDMI, 1x VGA, 2x COM (RS232), 2x LAN (2.5G and 1G), 1x slim5.25", 2x 3.5", 2x M.2, 24/7 p...
Brand: Shuttle
SKU: PIB-XH61001
Price: 353.81 EUR
Availability: InStock

Combination of Connectivity and High Computing. Exceptional Reliability and Optimization to Your Business

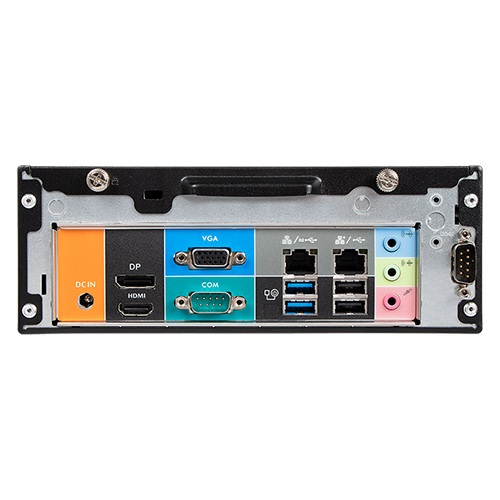

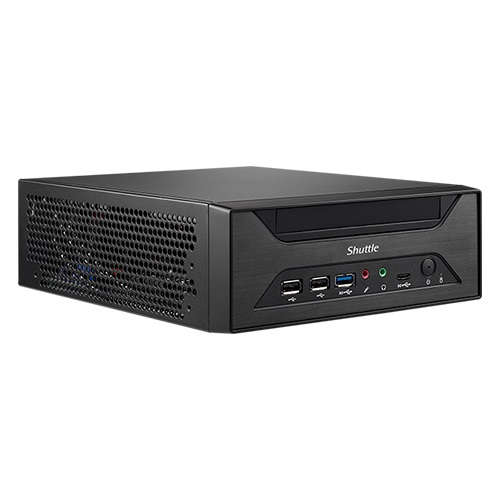

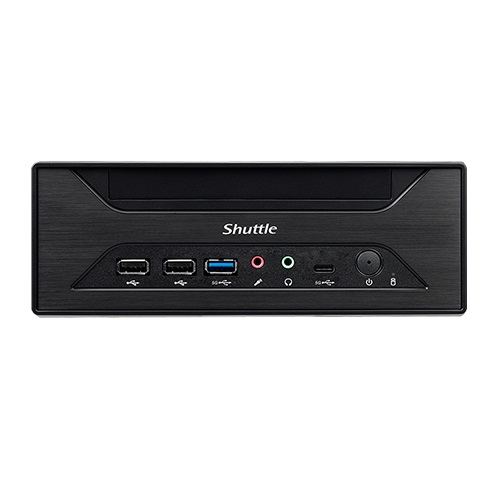

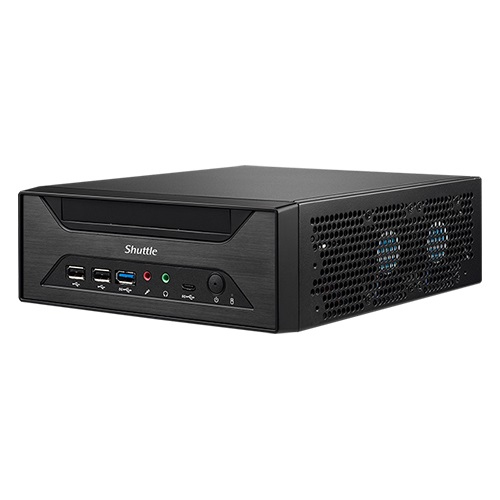

Shuttle XPC slim 3-liter XH610/XH610V is equipped with Intel® H610 chipset that supports Intel® 12th LGA1700 65W processors and delivers 4K UHD video content. Up to three displays can be used simultaneously via one HDMI 2.0b, one DisplayPort, and one VGA. Feature an extra storage expansion that supports three 2.5” HDD/SSD storage drives or one 3.5” HDD (with an optional PHD4). Besides, the series includes 4 x USB 3.2 Gen1 (Include one Type-C), 4 x USB 2.0, Intel® 1G + Intel® 2.5G LAN, 2 x M.2, and 2 x RS232 to perform its rich I/O capabilities. In addition, another optional accessory PCM31 can be chosen to support a max of five RS232 ports to connect peripheral devices and deliver a robust performance that can drive highly interactive kiosks, vending machines, digital signage, and surveillance applications.

1 IN STOCK

RRP Price €353.81

Specifications

Processor

Built-in processor

Memory

Memory slots type

SO-DIMM

Number of memory slots

Maximum internal memory

64 GB

Supported memory clock speeds

2133,2400,2666,2933,3200 MHz

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Memory voltage

1.2 V

ECC

Non-ECC

Yes

Storage

Supported storage drive types

HDD & SSD

Storage drive sizes supported

2.5"

Storage drive interface

M.2, PCI Express, Serial ATA III

NVMe

Yes

Graphics

On-board graphics card

Yes

Graphics card family

Intel

Audio

Built-in speaker(s)

Network

Ethernet LAN

Yes

Wi-Fi

Ports & interfaces

USB 2.0 ports quantity

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

HDMI ports quantity

HDMI version

2.0b

VGA (D-Sub) ports quantity

DisplayPorts quantity

DisplayPort version

1.4a

Microphone in

Yes

Headphone outputs

Ethernet LAN (RJ-45) ports

COM ports quantity

DC-in jack

Yes

Expansion slots

Number of M.2 (M) slots

Design

Chassis type

3.5L sized PC

Product colour

Black

Cooling type

Active

LED indicators

HDD, Power

Cable lock slot

Yes

Cable lock slot type

Kensington

Product type

PC barebone

Performance

Motherboard chipset

Intel H610

Processor socket

LGA 1700

Number of processors supported

Compatible processor series

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®

BIOS type

AMI

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Technical details

Compliance certificates

RoHS

Logistics data

Harmonized System (HS) code

84733080

Software

Windows operating systems supported

Windows 10, Windows 11

Linux operating systems supported

Yes

Operating system installed

Sustainability

Sustainability certificates

ENERGY STAR, ErP

Power

Power supply type

External AC adapter

Power supply

120 W

Number of power supply units

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

AC adapter output voltage

19 V

AC adapter output current

6.32 A

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

200 mm

Depth

238 mm

Height

72 mm

Weight

2.2 kg

Package weight

3.5 kg

Packaging content

Quick start guide

Yes

Drivers included

Yes

Other features

Country of origin

China
