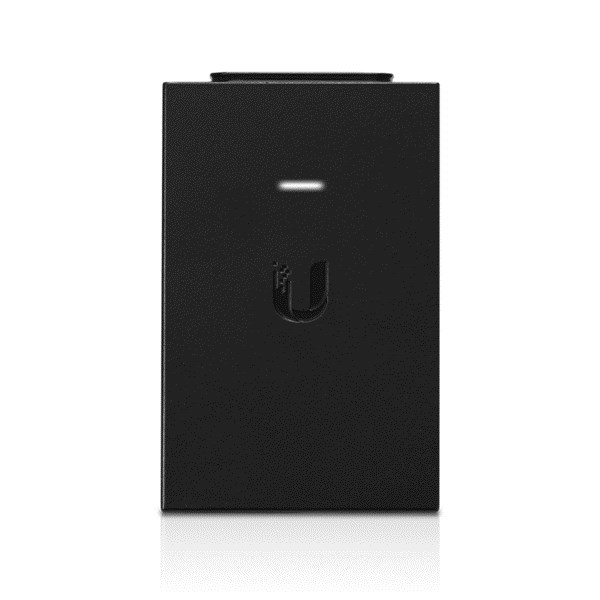

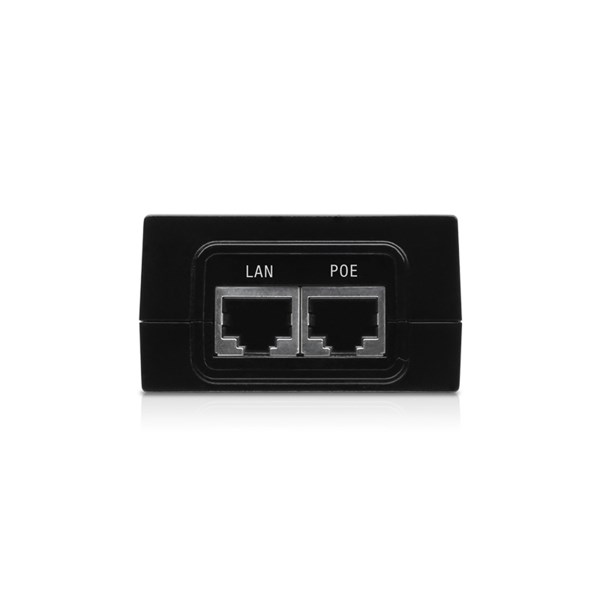

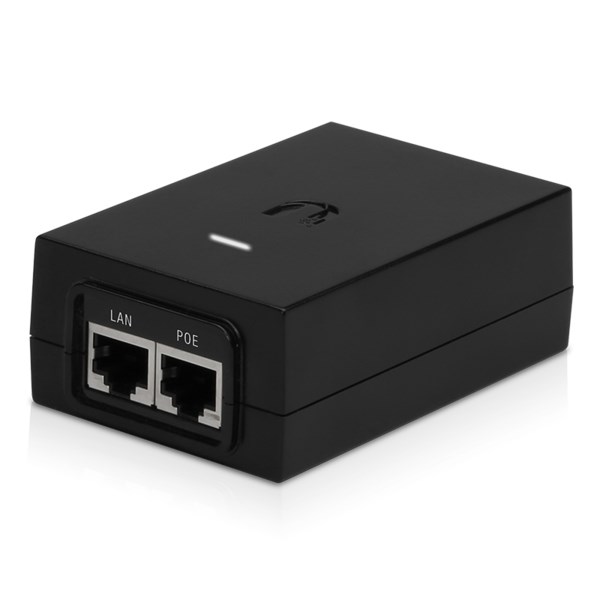

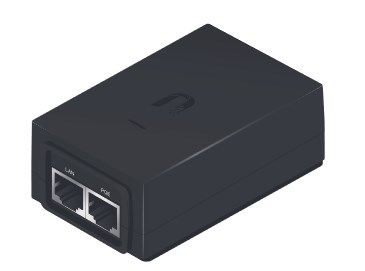

Ubiquiti POE-48-24W PoE adapter 48 V

Name: Ubiquiti POE-48-24W PoE adapter 48 V
Brand: Ubiquiti
SKU: POE-48-24W
Price: 12.51 EUR
Availability: InStock

Device Protection
PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.

4 IN STOCK

RRP Price €12.51

Specifications

Network

Power over Ethernet (PoE)

Yes

Features

Product colour

Black

Wall mountable

Yes

Surge protection

Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports

RJ-45 input ports

RJ-45 output ports

Power

Power over Ethernet (PoE) voltage

48 V

Input voltage

100 - 240 V

Input frequency

50/60 Hz

Input current

0.4 - 0.6 A

Certificates

Certification

CE, FCC, IC, UL

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

35 - 95%

Storage temperature (T-T)

-30 - 70 °C

Weight & dimensions

Width

57 mm

Depth

88 mm

Height

33 mm

Weight

135.5 g

Packaging data

Package type

Box

Logistics data

Harmonized System (HS) code

85044090

Description

Manufacturer

Ubiquiti

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

Weight

0.1355 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

CAT6 28AWG UTP CM PATCH CORD, SNAGLESS RJ45, BLUE, 1.5FT (0.5M) Cables & Adaptors

CAT6 28AWG UTP CM PATCH CORD, SNAGLESS RJ45, BLUE, 1.5FT (0.5M)

€6.00

Tripp Lite U330F-10M-G1 USB 3.2 Gen 1 CL3-Rated Fiber Active Optical Cable (AOC) - Extension/Repeater, A M/F, Black, 10 m (33 ft.) Cables & Adaptors

Active Optical Cable Extension Connects Servers, Hard Drives and Other USB ComponentsThis USB 3.2 Gen 1 extension/repeater cable (M/F) attaches to your current USB cable to extend your USB connection by 10 meters (33 feet). The U330F-10M-G1 connects computers, servers, external hard drives, surveillance cameras and other devices with a USB-A port. Note: You must first connect the USB-A male connector, then the USB-A female connector.Supports USB 3.2 Gen 1 Speeds for Reliably Fast Data TransfersThis cable supports USB 3.2 Gen 1 data transfer rates up to 5 Gbps, which is 10 times faster than USB 2.0. If you need an extra signal boost, connect the cable’s USB Micro-B port to a laptop, hub or USB wall charger with the included cable. Note: This USB cable is not backward compatible with USB 2.0 or USB 1.1 devices.Active Optical Cables Are Easier to Install than CopperBecause the fiber cable is slimmer and more flexible than standard copper USB cables, the U330F-10M-G1 is easier to install around corners and in hard-to-reach spaces behind equipment. It also transmits USB signals over longer distances than copper with no signal loss.10 m (33 ft.) Cable Lets You Design an Application to Your Custom SpecificationsThis long cable allows you greater flexibility in placing your USB components. For instance, your desktop computer may be connected to a security camera or a server located in a different room away from your office or in a central location where others have access to it. Premium Construction for Superior PerformanceThe PVC jacket carries a CL3 rating, making it suitable for in-wall cable installation in residential or commercial settings. Gold-plated contacts provide maximum conductivity and minimum data loss to guarantee a clear transmission free of interference. The plug-and-play U330F-10M-G1 supports all major operating systems, including Windows, macOS and Linux.

€130.98

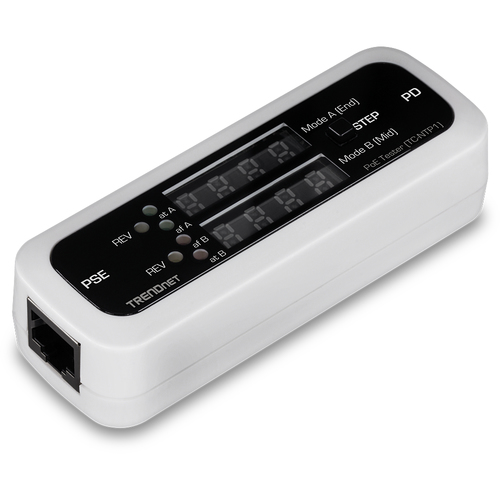

Trendnet TC-NTP1 network analyser Black Cables & Adaptors

TRENDnet's Inline PoE Tester, model TC-NTP1, is a comprehensive PoE cable tester for network professionals. This compact tool accurately tests 4PPoE, PoE+, PoE, and passive PoE technologies. The TC-NTP1 PoE cable tester works on active connections, and is designed to sit inline between the PoE source and PoE device. The PoE cable tester then displays real-time PoE information such as wattage, voltage, and amperage for that connection.Testing ModesThe TC-NTP1 has three testing functions: T-mode (for testing ports on your PSE device to determine the PoE switch's or injector's PoE type, and voltage output); N-mode (for non-standard passive PoE devices); and I-mode (for PoE inline testing, displaying voltage, amperage, and wattage of the connected PD).Step ButtonThe convenient step button on the PoE cable tester allows users to cycle through voltage, amperage, and wattage readouts. It also allows users to lock the display to a specific readout (e.g. wattage) for real-time monitoring.CompatibilityThe PoE cable tester is compatible with IEEE 802.3af/at/bt PoE devices up to 100W, and non-standard passive PoE devices from 11V – 60V.PortsEquipped with 1 x Gigabit port for PSE connection, and 1 x Gigabit port for PD connectionTesting ModesThe TC-NTP1 supports three testing functions. T-mode allows you to test your PSE device to determine the PoE switch's or injector's supported PoE standards, as well as voltage output. N-mode is used for non-standard passive PoE devices. I-mode is used for PoE inline testing, which displays the voltage, amperage, and wattage of the connected PDToggle SwitchSwitch between testing modes using the convenient toggle switch located at the bottom of the PoE cable testerPoE SupportPoE cable tester supports IEEE 802.3af/at/bt, and non-standard passive PoE devicesCompatibilityCompatible with IEEE 802.3af/at/bt PoE devices up to 100W, and non-standard passive PoE devices from 11V – 60VBlue LED DisplayConvenient front-panel 4-digit seven-segment LED display on the PoE cable tester cycles between voltage, wattage, and amperage readingsLED IndicatorsLED indicators on the PoE cable tester convey PoE type (active/passive), sources, polarity, and powerStep ButtonThe convenient step button on the PoE cable tester allows users to cycle through voltage, amperage, and wattage readouts. It also allows users to lock the display to a specific readout (e.g. wattage) for real-time monitoringUser-FriendlyTC-NTP1 PoE cable tester provides battery-free operation, and is ready for use right out of the box; just plug-in to start testingCompact DesignSmall and compact design of the PoE cable tester is perfectly pocketable for on-the-go PoE testing

€56.11

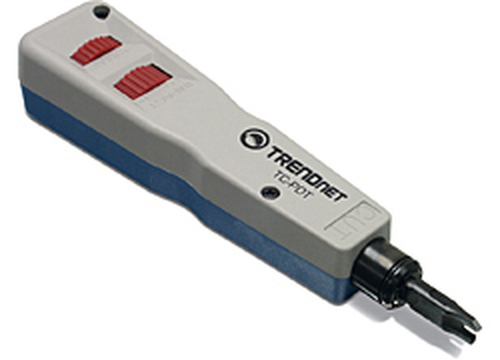

Trendnet TC-PDT Punch Down Tool with 110 and Krone Blade network analyser Blue, White Cables & Adaptors
