POEINJ30W - Cables & Adaptors by StarTech.com

Rugged PoE Injector | 30 Watts | IP-30 Aluminum Housing | 48V-56V DC | DIN Rails

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.

30 Watt Power Budget

Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:

Cameras

Sensors

Wi-fi access points

Uses Cat 5e (or higher rated) Ethernet cabling.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

Vibration: EN 60068-2-6

Shock: EN 60068-2-27

Free-fall: EN 60068-2-32

600,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.

Dual Power Inputs

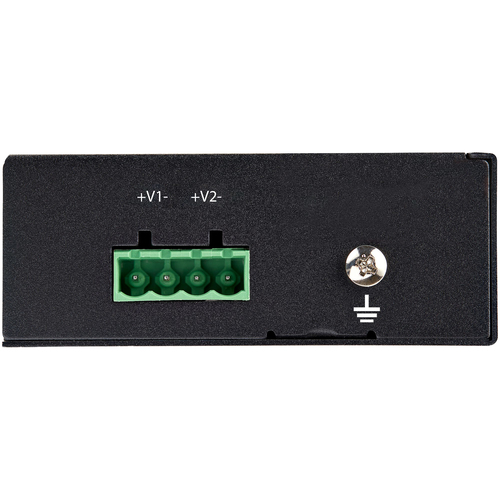

Dual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.

The POEINJ30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- 30 WATT GIGABIT ETHERNET PoE INJECTOR: Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like cameras, sensors, and wi-fi access points
- TECH SPECS: 1 Gbps
- 48V-56VDC input

5 IN STOCK

RRP Price €60.25

Specifications

Network

Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Power over Ethernet (PoE)
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Auto MDI/MDI-X
Yes
Duplex system
Full
Supported network protocols
CSMA/CD

Features

Product colour
Black
Surge protection
Yes
Maximum operating distance
100 m
LED indicators
Yes
Safety
MET (UL) 60950-1, EN60950-1
Power protection features
Overload, Reverse polarity

Ports & interfaces

RJ-45 input ports
1
RJ-45 output ports
1

Power

Input voltage
48 - 56 V
Power consumption (max)
37 W
Power over Ethernet (PoE) power per port
30 W
Power plug type
Type N

Certificates

Compliance certificates
RoHS
Certification
CE, FCC, UL

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 85 °C

Weight & dimensions

Weight
143 g

Packaging content

Quick installation guide
Yes

Packaging data

Package length
21.1 cm
Package width
162 mm
Package depth
64 mm
Package weight
381 g

Logistics data

Harmonized System (HS) code
85044095
Master (outer) case width
355 mm
Master (outer) case length
345 mm
Master (outer) case height
225 mm
Products per master (outer) case
10 pc(s)
