POS-P520 - Computer Systems by Shuttle

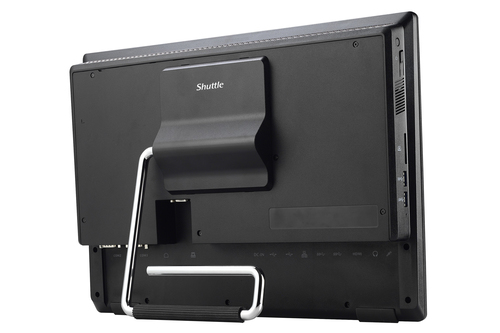

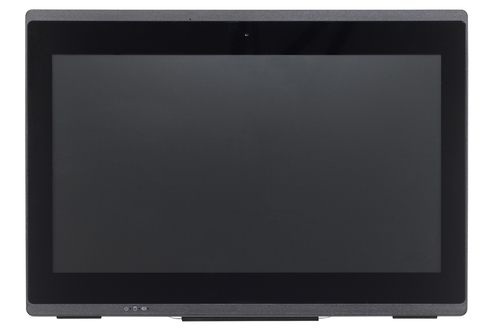

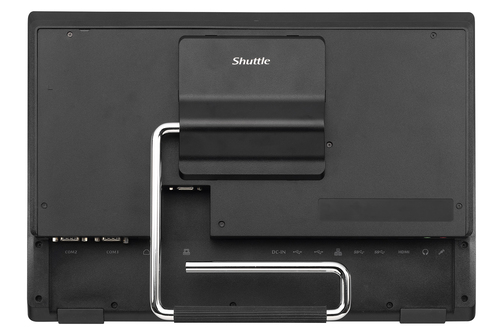

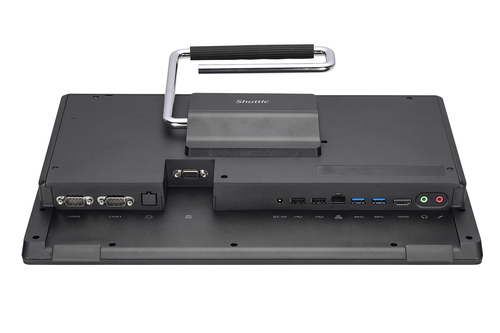

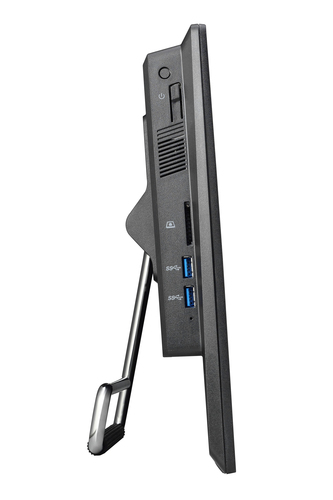

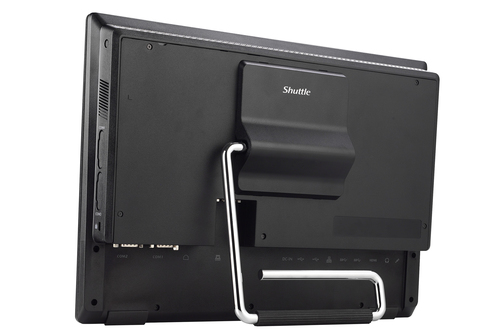

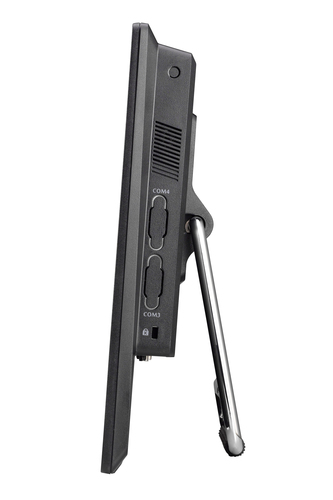

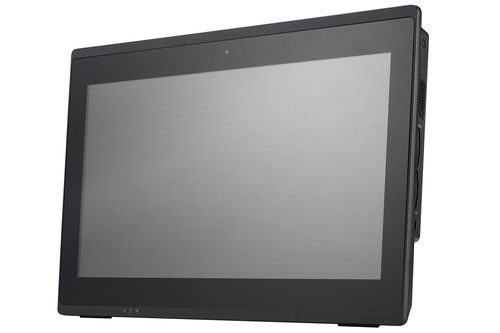

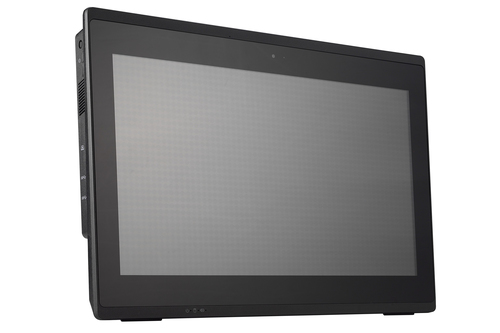

Shuttle's range of All-in-One PCs yet comprises models with three different screen sizes: 11.6", 15.6" and 19.5". The P52U series model with a capacitive 15.6" multi-touchscreen offers Full-HD resolution. An Intel Ultra-Low-Voltage (ULV) processor makes for high computing power while it keeps energy consumption at a low level. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.

ON ORDER

RRP Price €711.92

Specifications

Display

Display diagonal
39.6 cm (15.6")
Display resolution
1920 x 1080 pixels
Touchscreen
Yes
Display type
IPS
Display brightness
250 cd/m²
Touchscreen technology
Capacitive
Aspect ratio
16:9

Processor

Processor manufacturer
Intel
Processor family
Intel® Celeron®
Processor model
5205U
Processor cores
2
Processor threads
2
Processor frequency
1.9 GHz
Processor cache
2 MB
System bus rate
4 GT/s
Processor ARK ID
197890

Memory

Internal memory
4 GB
Internal memory type
DDR4-SDRAM
Maximum internal memory
64 GB
Number of memory slots
2
Memory slots type
SO-DIMM

Storage

Total storage capacity
120 GB
Storage media
SSD
Number of storage drives supported
2
SSD capacity
120 GB
SSD interface
PCI Express
NVMe
Yes
SSD form factor
M.2

Graphics

Graphics card manufacturer
Intel
Graphics card
UHD Graphics

Features

Certification
RCM, VCCI, BSMI

Multimedia

Built-in speaker(s)
Yes
Number of speakers
2
Card reader integrated
Yes
Compatible memory cards
SD, SDHC, SDXC

Network

Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s

Ports & interfaces

Ethernet LAN (RJ-45) ports
1
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI ports quantity
1
VGA (D-Sub) ports quantity
1
Line-in
Yes
Line-out
Yes
Microphone in
Yes
Serial ports quantity
2
DC-in jack
Yes

Design

Chassis type
All-in-One
Product colour
Black

Performance

Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0

Software

Operating system installed
No
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Linux operating systems supported
Yes

Power

AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
AC adapter output voltage
19 V
AC adapter output current
3.42 A
Power supply
65 W

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Weight & dimensions

Width
393.6 mm
Depth
272.5 mm
Height
39.8 mm
Weight
3.25 kg

Packaging data

Quantity per pack
1 pc(s)
Package weight
4.5 kg

Packaging content

Cables included
AC
Quick start guide
Yes
Power adapter included
Yes

Security

Cable lock slot
Yes
Cable lock slot type
Kensington

Technical details

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS, UKCA

Logistics data

Harmonized System (HS) code
84714100

Sustainability

Sustainability certificates
ENERGY STAR, ErP

Accessories
