Name: QNAP QDA-SA3 interface cards/adapter Internal SATA
Brand: QNAP
SKU: QDA-SA3-4PCS
Price: 307.70 EUR
Availability: OutOfStock

QDA-SA3

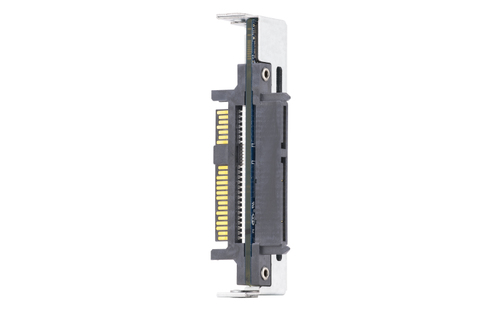

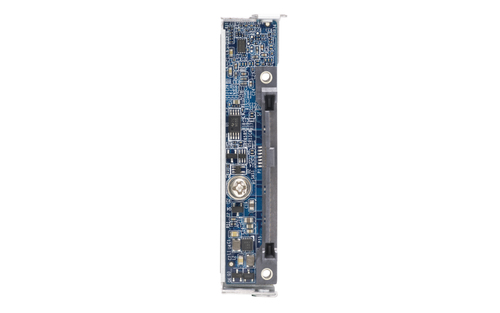

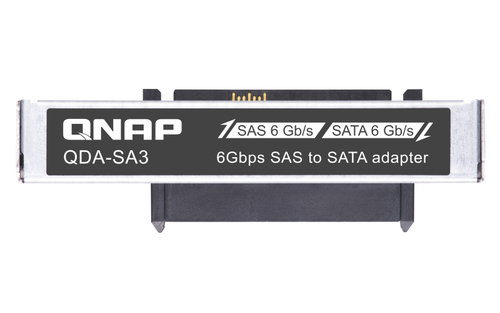

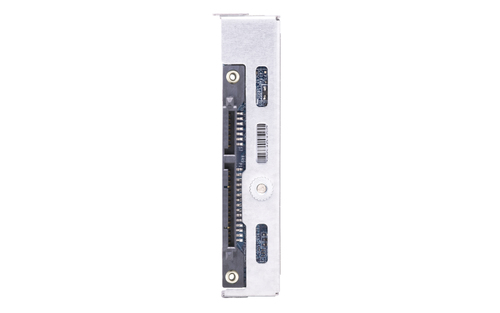

2.5-inch 6Gbps SAS to SATA drive adapter (Designed for dual-controller all-flash ES2486dc NAS)

The QDA-SA3 adapter is designed for QNAP’s dual-controller all-flash array Enterprise ZFS NAS (ES2486dc) and allows the usage of a SATA 6Gbps drive in a 2.5-inch SAS 12Gbps/6Gbps drive bay — providing the ability to expand storage capacity with cost-effective SATA drives.

SAS dual-port advantage for fault tolerance
SAS features dual porting for redundancy, eliminating single points of failure and allowing for higher reliability and performance. By installing a SATA drive with the QDA-SA3 into a dual-controller all-flash Enterprise ZFS NAS, the SATA drive can share these SAS dual-port advantages to ensure a high-availability, fault tolerant enterprise storage environment.

Designed for all-flash Enterprise ZFS NAS
The QDA-SA3 can be easily installed in the 2.5-inch disk tray of an all-flash array Enterprise ZFS NAS (ES2486dc disk tray model: TRAY-25-NK-BLK04).

ON ORDER

RRP Price €307.70

Specifications

Ports & interfaces

Host interface

SAS

Output interface

SATA

SATA revision

3.0

Internal SATA ports quantity

Design

Internal

Yes

Product colour

Black, Grey

Features

Data transfer rate (max)

6 Gbit/s

Weight & dimensions

Width

69.9 mm

Depth

21.8 mm

Height

14.5 mm

Weight

20 g

Packaging data

Quantity

Quick installation guide

Yes

Logistics data

Harmonized System (HS) code

84733020

Description

Manufacturer

QNAP

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.02 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

Digitus USB-C silicone connection cable, 0.5m, white Cables & Adaptors

Fast charging and synchronization with the high-quality and soft silicone connection cable- Soft and high-quality silicone gel material for durability and flexibility. Up to 25 times more durable than standard cables.- Hardly any tangles or kinks: The cable remains tangle-free even after frequent bending, twisting and kinking, giving you stress-free use.- Outstanding durability: With an estimated service life of up to 25,000 bends, our cable is extremely hard-wearing and remains reliable even with intensive use.- Includes cable tie/cable loop for neat and tidy storage.- Transfer speed up to 480Mbps (USB 2.0)- Supports the USB power delivery function with 20V, 3A and 60WReliable and easy connection to your USB-C devices with your PC thanks to the soft and flexible silicone cable. Data transfer rate of 480 Mbits/s for synchronization, data transfer and a power delivery specification of 60W for charging.

€3.96

Digitus CAT 6A F-FTP Slim patch cable, 1.5m, green Cables & Adaptors

Future-oriented standards and high-end quality for your network.- Advantage: Slim and flexible design, the cable can be laid effortlessly in confined spaces- Features: Transmission speed 10 Gbit/s and frequency 500 MHz- Application area: ideal for data centers, high-density solutions and home offices- PoE+ readyDIGITUS® Slim patch cables are characterized by their small outer diameter and flexible jacket. The slim design enables versatile use in your network. In addition, DIGITUS® Slim patch cables are manufactured in accordance with the ISO/IEC 11801 and DIN EN 50173 CAT 6A standards. They guarantee that the cable installation complies with the ISO & EN channel specification and offer excellent performance in DIGITUS® CAT 6A cabling. Performance has been tested up to 500 MHz, including features such as near-end crosstalk ("NEXT"). DIGITUS® patch cables have been specially developed to meet all requirements in various application areas. Each cable is equipped with a molded anti-kink sleeve with strain relief. In addition, the sleeve has a locking lever protection that prevents the cable from kinking and the locking lever from breaking off the plug.

€3.97

Digitus CAT 6A F-FTP Slim patch cable, 1m, red Cables & Adaptors

€3.23

Digitus CAT 8.1 S/FTP patch cable, 2 m Cables & Adaptors

The high-end network solution according to the CAT 8.1 standard- Highest performance: The CAT 8.1 patch cable with connector supports transmission rates of up to 40 Gbit/s at 2000 MHz for maximum network performance- New connector: RJ45 connector with integrated PCB for improved signal integrity and long-term stability- Future-proof compatibility: Ideal for high-speed data centers, server rooms and industrial applications- Supports the IEEE 802.3af (PoE), 802.3at (PoE+) and 802.3bt (PoE++ Type 3 & Type 4) standardsThe DIGITUS® Category 8.1 Class I patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 8.1 standard. They guarantee that the cable installation complies with the ISO & EN Channel specification and offer excellent performance in DIGITUS® CAT 8.1 cabling. The performance has been tested up to 2,000 MHz, including performance characteristics such as near-end crosstalk ("NEXT"). The DIGITUS® patch cables have been specially developed to fully meet all requirements in the various application areas. Each cable is equipped with a molded anti-kink grommet with strain relief. The grommet also has a latching lever protection, which prevents the cable from getting caught and the latching lever from breaking off the plug.

€11.94

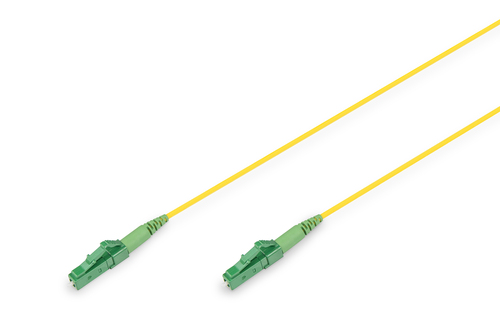

Digitus Fiber Optic simplex patch cable, Singlemode, LC/APC - LC/APC, 15 m Cables & Adaptors

High-quality fibre simplex patch cables offer an excellent connectivity option for indoor and FTTx applications. The longetivity of cables is ensured by reliable connector performance.- High flexibility- Bend insensitive- High precision and low insertion loss- Compliant with G.657.A2The single mode simplex fiber cable enables easier installation due to their bend insensitive characteristic. It is designed to transmit data with less attenuation when bent or twisted and as a result the cables are very efficient. Therefore, this makes the cable excellently suited for confined spaces. It is ideal for use in telecommunications, FTTx (FTTH, FTTB) applications and also gives more space for high-density cable installation requirements in enterprise networks, telecom rooms, server farms, horizontal and equipment distribution areas.

€4.96

Eaton P004-02M-EU power cable Black 2 m IEC C13 IEC C14 Cables & Adaptors

Extension cord connects 2 devices with C13/C14 power connectors or extends your existing power connection by 2 m.C13-to-C14 Power Cord Connects Computers, Printers, Servers and Other EquipmentThis durable extension cord is designed for small data centers, office workstations and other lower-amp applications. The power cable can be used to power a computer, server or monitor or to attach a server or drive to a PDU. It can also extend an existing connection up to two meters (6.6 feet) to right-size your current application and allow some flexibility in placing connected equipment.H05VV-F Jacket Is Fully VDE-Compatible for European ApplicationsThe 6.7mm diameter enhanced PVC jacket complies with VDE, CE and UKCA standards for data centers, racks and other IT applications in Europe.

€3.50

Digitus Pre-assembled Fiberglass Universal Breakout Cable, Multi Mode OM4, 12 Fibers, LC/UPC - LC/UPC Cables & Adaptors

Pre-assembled fiber optic breakout cables enable simple, time-saving and flexible installation of high-bandwidth network links.- Pre-assembled- High-quality connectors fitted ex works- Ready for immediate use, without additional splicing work- Standard lengths available from stock- High-quality components and construction- Applications Applicable for indoor and outdoor use- Connection of network cabinets without potential differences- Individual mechanically protected fibers- Robust cable construction- Pull-in aid on both sides for secure installationThis pre-terminated breakout fiber optic cable is ideal for installations that require an extremely robust and reliable fiber optic cable design where maximum mechanical protection is required. It offers a secure plug & play solution for installations through the pre-terminated connectors. It is easy to install on partially assembled patch panels, for example. The supplied measurement protocol eliminates the need for time-consuming follow-up checks

€827.42

Digitus Fiber Optic simplex patch cable, Singlemode, LC/APC - LC/APC, 10 m Cables & Adaptors

€4.03

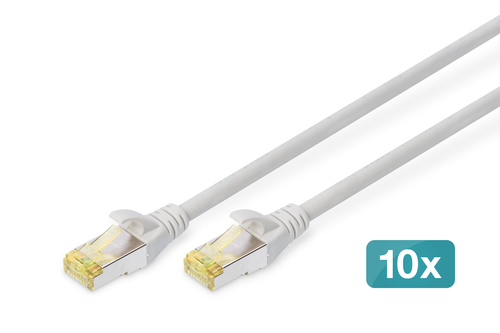

Digitus CAT 6A S/FTP patch cord, 10 pieces Cables & Adaptors

Future-oriented standards and high-end quality for your network.- With LSZH (Low Smoke Zero Halogen) sheath for best fire behaviour and low smoke emissions.- Transparent yellow colored plug with metal shielding for easy identification of Category 6A (500 MHz)- Conductor: Copper (Cu)- PoE+ readyThe DIGITUS® Category 6A Class EA patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 A specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 6A cabling. The performance is tested up to 500 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking. You can easily identify the Category 6A, because of the transparent yellow colored connector.

€13.75

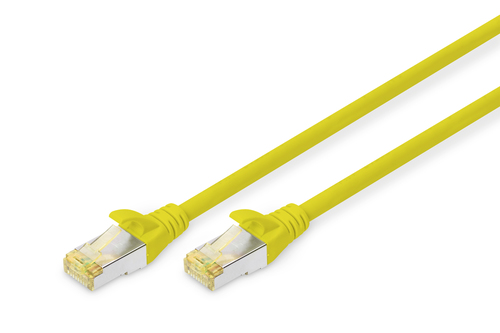

Digitus CAT 6A S/FTP patch cord Cables & Adaptors
