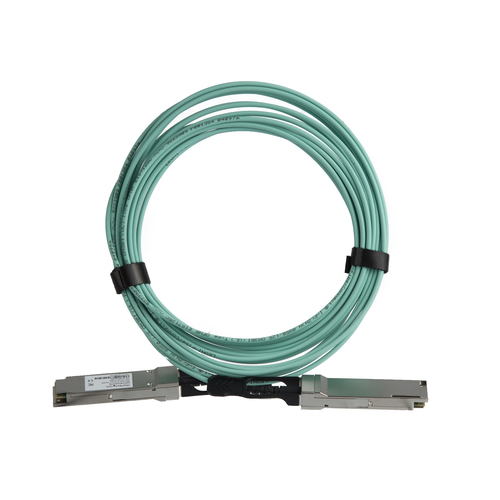

StarTech.com MSA Uncoded 7m/23ft 40G QSFP+ to QSFP+ AOC Cable - 40 GbE QSFP+ Active Optical Fiber - 40 Gbps QSFP Plus/Transceiver Module Cable

Name: StarTech.com MSA Uncoded 7m/23ft 40G QSFP+ to QSFP+ AOC Cable - 40 GbE QSFP+ Active Optical Fiber - 40 Gbps QSFP Plus/Transceiver Module Cable
Brand: StarTech.com
SKU: QSFP40GAO7M
Price: 501.61 EUR
Availability: OutOfStock

Fiber QSFP+ Cable | 40 Gbps | AOC | Lifetime Warranty

The QSFP40GAO7M is an MSA compliant optical quad small form-factor pluggable (QSFP+) cable that is designed, programmed and tested to work with 40 GbE compatible switches and routers. This AOC QSFP+ cable supports 40 Gigabit Ethernet applications (4 x 10GbE) connected through QSFP+ ports. It is a low-power, low-latency cable that is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

The fiber QSFP+ cable is lighter and more flexible than QSFP+ direct-attach cables, making it ideal for installation in tight spaces and over longer distances. It is designed for high-speed interconnects and is great for point-to-point across-rack network switch or server connections.

StarTech.com SFP Cables

All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

SKU: QSFP40GAO7M

Manufacturer:

StarTech.com

RRP Price €501.61

Specifications

Features

Cable length

7 m

InfiniBand protocol

Yes

Connector 1

QSFP+

Connector 2

QSFP+

Connector 1 gender

Male

Connector 2 gender

Male

Product colour

Black

Data transfer rate

40 Gbit/s

Jacket material

Polyvinyl chloride (PVC)

Certificates

Compliance certificates

REACH, RoHS

Certification

CE, FCC

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 80 °C

Weight & dimensions

Weight

152 g

Packaging data

Package width

250 mm

Package depth

325 mm

Package height

10 mm

Package weight

171 g

Logistics data

Master (outer) case width

255 mm

Harmonized System (HS) code

85447000

Master (outer) case length

344 mm

Master (outer) case height

295 mm

Products per master (outer) case

10 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.152 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
