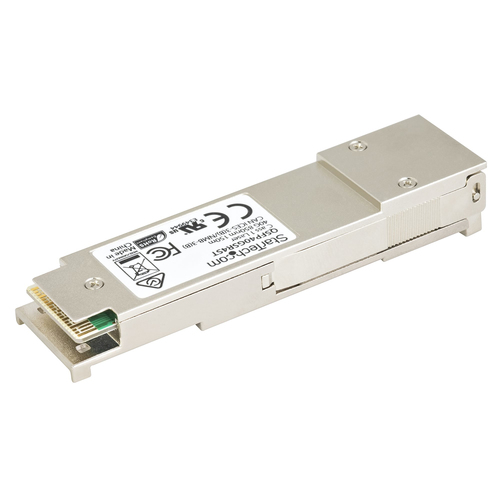

QSFP40GSR4ST - Cables & Adaptors by StarTech.com

QSFP40GSR4ST - Cables & Adaptors by StarTech.com

Name: StarTech.com Cisco QSFP-40G-SR4 Compatible QSFP+ Transceiver Module - 40GBASE-SR4~Cisco QSFP-40G-SR4 Compatible QSFP+ Module - 40GBASE-SR4 - 40GbE Mul...
Brand: StarTech.com
SKU: QSFP40GSR4ST
Price: 214.57 EUR
Availability: OutOfStock

40 Gbps | Multi Mode Fiber | MPO | 150 m (492 ft) | Lifetime Warranty

The QSFP40GSR4ST is a Cisco QSFP-40G-SR4 compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco™ brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 150 m (492 ft).

Technical Specifications:

• Wavelength: 850nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode Fiber
• Connection Type: MPO Connector
• Maximum Transfer Distance: 150 m (492 ft)
• MTBF: 1,649,326 hours
• Power Consumption: Less than 0.7 Watts
• Digital Diagnostics Monitoring (DDM): Yes

This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

RRP Price €214.57

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

40000 Mbit/s

Interface type

QSFP+

Multi-mode fiber (MMF) supported

Yes

Fiber optic connector

MPO

SFP transceiver standard

SR4

Maximum transfer distance

150 m

Wavelength

850 nm

Networking standards

IEEE 802.3ba

Duplex system

Full

Digital Diagnostics Monitoring (DDM)

Yes

Features

Product colour

Silver

Housing material

Aluminium

Hot-swap

Yes

Mean time between failures (MTBF)

1649326 h

Power

Power consumption (typical)

0.7 W

Certificates

Compliance certificates

CE, RoHS

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

18.4 mm

Depth

72 mm

Height

13 mm

Weight

32 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

92 mm

Package depth

117 mm

Package height

34 mm

Package weight

95 g

Logistics data

Master (outer) case width

250 mm

Master (outer) case length

300 mm

Harmonized System (HS) code

85369010

Master (outer) case height

200 mm

Products per master (outer) case

36 pc(s)

Country of origin

China

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.032 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

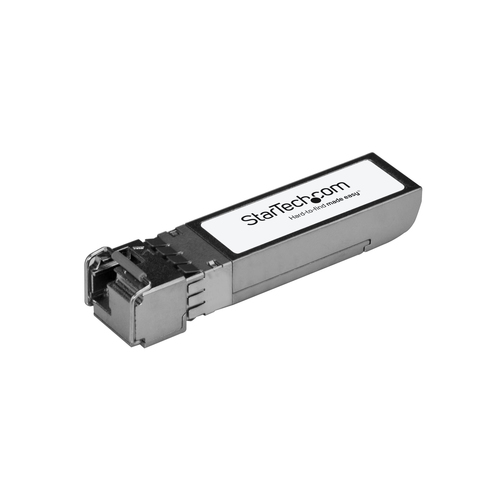

StarTech.com Cisco SFP-10G-ZR-S Compatible SFP+ Module - 10GBASE-ZR - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 80km - 1550nm - DDM Cisco ASR9000, ASR1000, NCS5500 Cables & Adaptors

10 Gbps | Single Mode Fiber | LC | 80 km (49.7 mi) | Lifetime WarrantyThe SFP-10G-ZR-S-ST is a Cisco SFP-10G-ZR-S compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-ZR compliant networks, with a maximum distance of up to 80 km (49.7 mi).Technical Specifications:• Wavelength: 1550nm• Maximum Data Transfer Rate: 10 Gbps• Type: Multi Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 80 km (49.7 mi)• MTBF: 426,514,897 hours• Power Consumption: Low power consumption• Digital Diagnostics Monitoring (DDM): YesThis SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

€845.54

StarTech.com Cisco SFP-10G-ZR Compatible SFP+ Module - 10GBASE-ZR - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 80km - 1550nm - DDM Cisco ASR9000, ASR1000, NCS5500 Cables & Adaptors

10 Gbps | Single Mode Fiber | LC | 80 km (49.7 mi) | Lifetime WarrantyThe SFP-10G-ZR-ST is a Cisco SFP-10G-ZR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-ZR compliant networks, with a maximum distance of up to 80 km (49.7 mi).Technical Specifications:• Wavelength: 1550nm• Maximum Data Transfer Rate: 10 Gbps• Type: Single Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 80 km (49.7 mi)• MTBF: 426,514,897 hours• Power Consumption: Low power consumption• Digital Diagnostics Monitoring (DDM): YesThis SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

€812.62

StarTech.com Cisco SFP-10G-LR-40 Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 40km - 1310nm - DDM Cisco Firepower, ASR9000, ASR1000 Cables & Adaptors

10 Gbps | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime WarrantyThe SFP-10G-LR-40-ST is a Cisco SFP-10G-LR-40 compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 40 km (24.8 mi).Technical Specifications:• Wavelength: 1310nm• Maximum Data Transfer Rate: 10 Gbps• Type: Single Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 40 km (24.8 mi)• MTBF: 426,514,897 hours• Power Consumption:• Digital Diagnostics Monitoring (DDM): YesThis SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

€1,113.67

Digitus Fiber Optic Patch Cord, E2000 (8° APC) to LC (UPC), Singlemode Cables & Adaptors

Cost reduction by verifiable quality and high performance.DIGITUS® Professional offers a wide range of high quality fiber optic patch cables. Practically every request and every requirement is covered by the broad range of cable types. The product range includes OM1, OM2, OM3 and OS2 versions. DIGITUS® fiber optic installation cables guarantee the best performance and fail-safety. All cables are single packed a polybag with test report.

€43.85

StarTech.com Cisco SFP-10G-BX60U-I Compatible SFP+ Module - 10GBASE-BX - 10 GbE Gigabit Ethernet BiDi Fiber (SMF) Cables & Adaptors

10 Gbps | Single Mode Fiber | LC | 60 km (37.3 mi) | Lifetime WarrantyThe SFP-10G-BX60U-I-ST is a Cisco SFP-10G-BX60U-I compatible upstream fiber SFP+ transceiver which pairs with StarTech.com's SFP-10G-BX60D-I-ST. They are designed, programmed and tested to work with 10GBASE-BX compatible Cisco switches and routers. The SFP+ transceiver module supports a maximum distance of up to 60 km (37.3 mi) and delivers dependable 10 GbE connectivity over fiber cabling.Technical Specifications:• Wavelength: 1270nmTx/1330nmRx• Maximum Data Transfer Rate: 10Gbps• Type: Single Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 60 km (37.3 mi)• Power Consumption: Low power consumption• DDM: YesThis SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

€1,072.51

StarTech.com Cisco SFP-10G-BX-D-20 Compatible SFP+ Module - 10GBASE-BX - 10 GbE Gigabit Ethernet BiDi Fiber (SMF) Cables & Adaptors

10 Gbps | Single Mode Fiber | LC | 20 km (12.4 mi) | Lifetime WarrantyThe SFP-10G-BX-D-20-ST is a Cisco SFP-10G-BX-D-20 compatible downstream fiber SFP+ transceiver which pairs with StarTech.com's SFP-10G-BX-U-20-ST. They are designed, programmed and tested to work with 10GBASE-BX compatible Cisco switches and routers. The SFP+ transceiver module supports a maximum distance of up to 20 km (12.4 mi) and delivers dependable 10 GbE connectivity over fiber cabling.Technical Specifications:• Wavelength: 1330nmTx/1270nmRx• Maximum Data Transfer Rate: 10Gbps• Type: Single Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 20 km (12.4 mi)• Power Consumption: Low power consumption• DDM: YesThis SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

€369.26

StarTech.com Dell EMC QSFP-40G-LR4 Compatible QSFP+ Module - 40GBASE-LR4 - 40GbE Single Mode Fiber SMF Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - LC 10km - 1311nm - DDM Cables & Adaptors

40 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime WarrantyThe QSFP40GLR4ES is a Dell EMC QSFP-40G-LR4 compatible fiber transceiver module that has been designed, programmed and tested to work with Dell EMC brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-LR4 compliant networks, with a maximum distance of up to 10 km (6.2 mi).Technical Specifications:• Wavelength: 1311nm• Maximum Data Transfer Rate: 40 Gbps• Type: Single Mode• Connection Type: MPO Connector• Maximum Transfer Distance: 10 km (6.2 mi)• MTBF: 8,596,956 hours hours• Power Consumption:• Digital Diagnostics Monitoring (DDM): YesThis QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

€991.37

StarTech.com Dell EMC SFP-10G-BX40-U Compatible SFP+ Module - 10GBASE-BX-U - 10 GbE Gigabit Ethernet BiDi Fiber (SMF) Cables & Adaptors

10 Gbps | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime WarrantyThe SFP10GBX40US is a Dell EMC SFP-10G-BX40-U compatible upstream fiber SFP transceiver which pairs with StarTech.com's SFP10GBX40DS. They are designed, programmed and tested to work with 10GBASE-BX40 compatible Dell EMC switches and routers. The SFP+ transceiver module supports a maximum distance of up to 40 km (24.8 mi) and delivers dependable 10 GbE connectivity over fiber cabling.Technical Specifications:• Wavelength: 1270nmTx/1330nmRx• Maximum Data Transfer Rate: 10Gbps• Type: Single Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 40 km (24.8 mi)• MTBF: 3,736,187 hours• Power Consumption:• DDM: YesThis SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

€731.47

StarTech.com Cisco SFP-10G-BX-U-20 Compatible SFP+ Module - 10GBASE-BX - 10 GbE Gigabit Ethernet BiDi Fiber (SMF) Cables & Adaptors

10 Gbps | Single Mode Fiber | LC | 20 km (12.4 mi) | Lifetime WarrantyThe SFP-10G-BX-U-20-ST is a Cisco SFP-10G-BX-U-20 compatible upstream fiber SFP+ transceiver which pairs with StarTech.com's SFP-10G-BX-D-20-ST. They are designed, programmed and tested to work with 10GBASE-BX compatible Cisco switches and routers. The SFP+ transceiver module supports a maximum distance of up to 20 km (12.4 mi) and delivers dependable 10 GbE connectivity over fiber cabling.Technical Specifications:• Wavelength: 1270nmTx/1330nmRx• Maximum Data Transfer Rate: 10Gbps• Type: Single Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 20 km (12.4 mi)• Power Consumption: Low power consumption• DDM: YesThis SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

€369.26

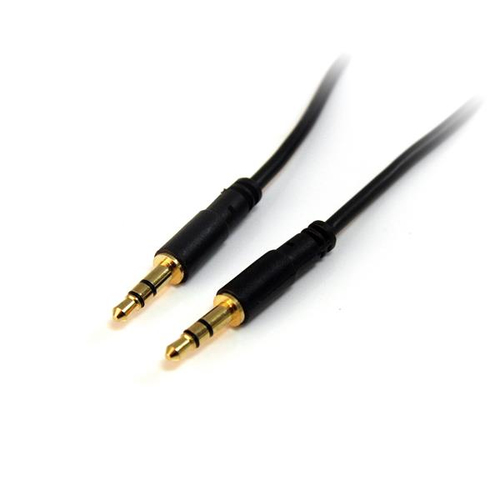

StarTech.com 10 ft Slim 3.5mm Stereo Audio Cable - M/M Cables & Adaptors
