StarTech.com MSA Uncoded Compatible 3m 40G QSFP+ to 4x SFP+ Direct Attach Breakout Cable Twinax - 40GbE QSFP+ to 4x SFP+ Copper DAC 40 Gbps Low Power Passive Transceiver Module DAC

Name: StarTech.com MSA Uncoded Compatible 3m 40G QSFP+ to 4x SFP+ Direct Attach Breakout Cable Twinax - 40GbE QSFP+ to 4x SFP+ Copper DAC 40 Gbps Low Power...
Brand: StarTech.com
SKU: QSFP4SFPPC3M
Price: 71.28 EUR
Availability: InStock

Copper QSFP+ Cable | 40 Gbps | Passive Breakout DAC | Lifetime Warranty

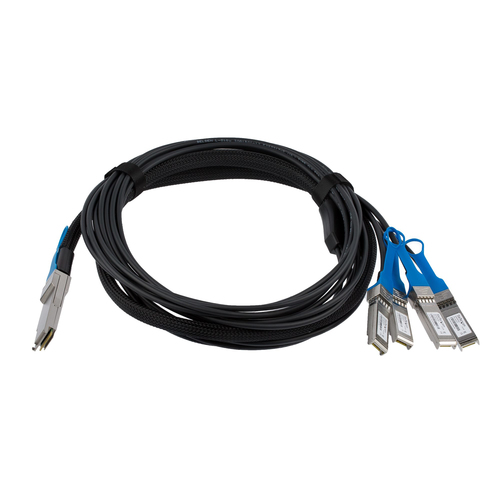

The QSFP4SFPPC3M is an MSA Compliant QSFP+ direct-attach Twinax breakout cable. It is designed, programmed and tested to bridge 40G network equipment with 10G compatible servers or routers. This passive Twin axial cable connects a single QSFP+ port to four 10G SFP+ ports and is fully hot-pluggable making upgrades and replacements seamless by minimizing network disruptions.

At 3 meters long and designed for short-length, high-speed interconnects, this low-power, low-latency copper QSFP+ cable also uses a cost-effective cabling alternative to fiber-optic assemblies. It supports short-distance applications such as point-to-point in-rack and across-rack network switch or server connections, for up to four 10G SFP+ devices.

StarTech.com SFP Cables

All StarTech.com QSFP & QSFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

1 IN STOCK

SKU: QSFP4SFPPC3M

Manufacturer: StarTech.com

RRP Price €71.28

Specifications

Features

Cable length

1 m

InfiniBand protocol

Yes

Connector 1

QSFP+

Connector 2

4x SFP+

Connector 1 gender

Male

Connector 2 gender

Male

Product colour

Black

Data transfer rate

40000 Mbit/s

Jacket material

Polyvinyl chloride (PVC)

Plug and Play

Yes

Certificates

Compliance certificates

RoHS

Certification

CE, FCC, REACH

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 80 °C

Weight & dimensions

Weight

456 g

Packaging data

Package width

245 mm

Package depth

325 mm

Package height

30 mm

Package weight

474 g

Packaging content

Quantity per pack

1 pc(s)

Logistics data

Master (outer) case width

255 mm

Harmonized System (HS) code

84733080

Master (outer) case length

344 mm

Master (outer) case height

295 mm

Products per master (outer) case

10 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.456 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
